3M Products & Supplies

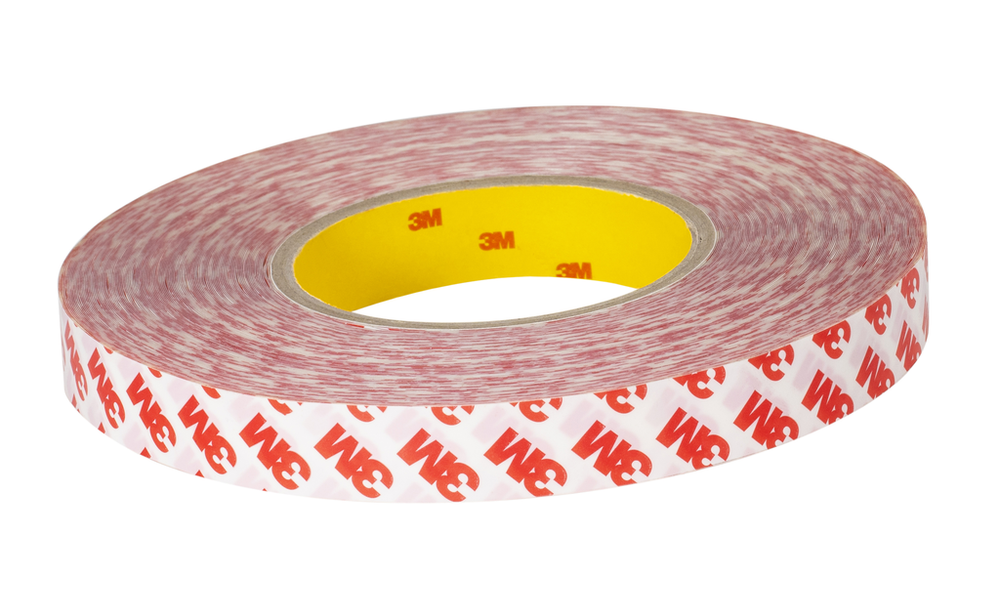

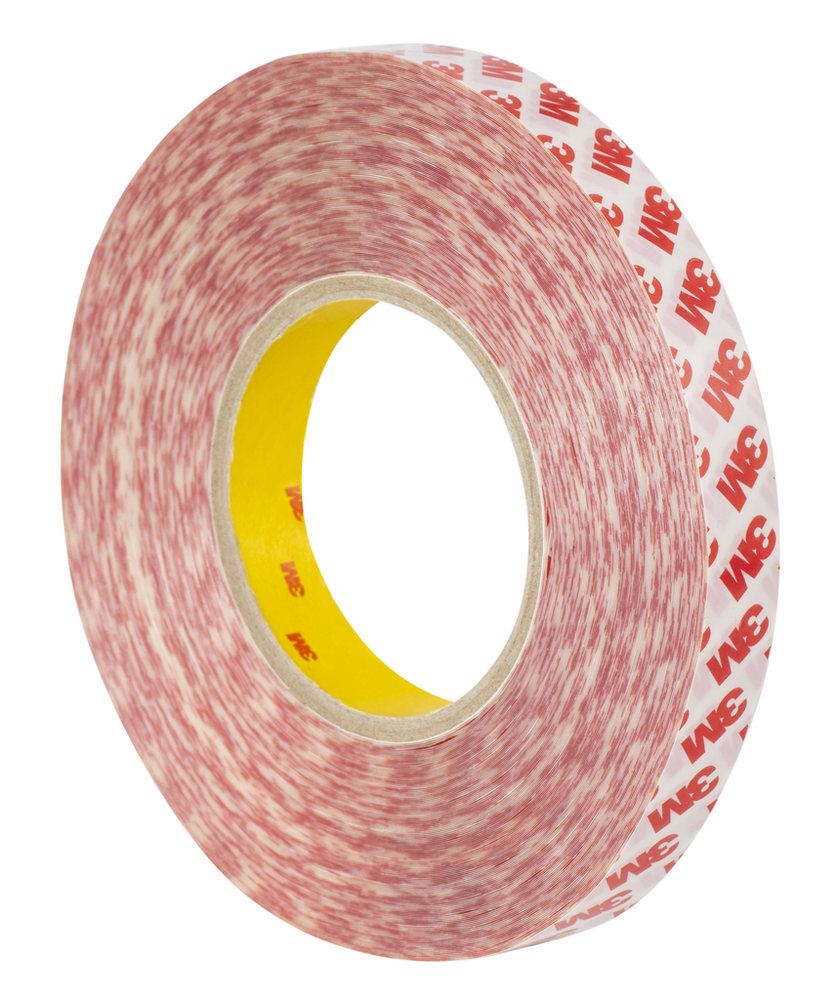

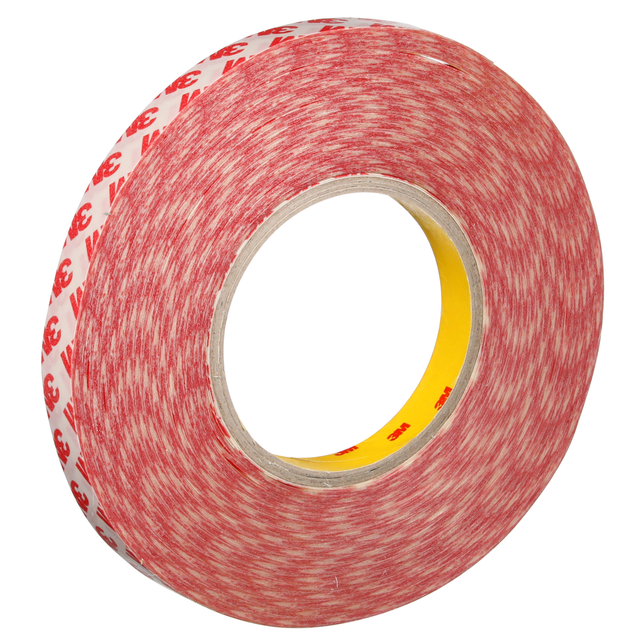

3M™ Double Coated Tape, GPT-020, Paper Liner, 19mm x 50m, 16 Roll/Case - 7100370006

Sold As: 16-Pack
SKU: 7100370006
MPN: 7100370006
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060760746
3M ID: UU013578297
$195.10 ($12.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project.

Features

  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polycoated kraft (PCK - 58#) liner.
  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginPoland
Face Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialPET
Number of Adhesive SidesDouble-sided
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)19.0
Maximum Operating Temperature (Fahrenheit)300.0
Primary Liner Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.095
Units per Case16.0
Face Side Adhesive Thickness (Metric)0.095
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.2
Primary Liner Thickness (Imperial)3.9
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)8.0
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Minimum Operating Temperature (Celsius)-40.0
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)149.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.75
Overall Length (Metric)50.0
Minimum Operating Temperature (Fahrenheit)-40.0
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Face Side Adhesive Thickness (Imperial)3.75
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial)54.7
Primary Liner58# Polycoated Kraft Paper (PCK)
Overall Length (Metric) UOMm
Adhesive TypeModified Acrylic
Face Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Primary Liner ColorWhite
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)0.47
Indoor/OutdoorIndoor/Outdoor
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)3.75
Backing (Carrier) Thickness (Metric)0.012
Primary Liner Thickness (Metric)0.1
