3M Products & Supplies

3M™ Double Coated Tape GPT-020, Paper Liner, 15mm x 50m, 16 Roll/Case - 7100369880

Sold As: 16-Pack
SKU: 7100369880
MPN: 7100369880
For an accurate lead time please contact us
UPC: 00068060760463
3M ID: UU013578206
$154.04 ($9.63 / Count)
Hurry up! Current stock:

Product Description

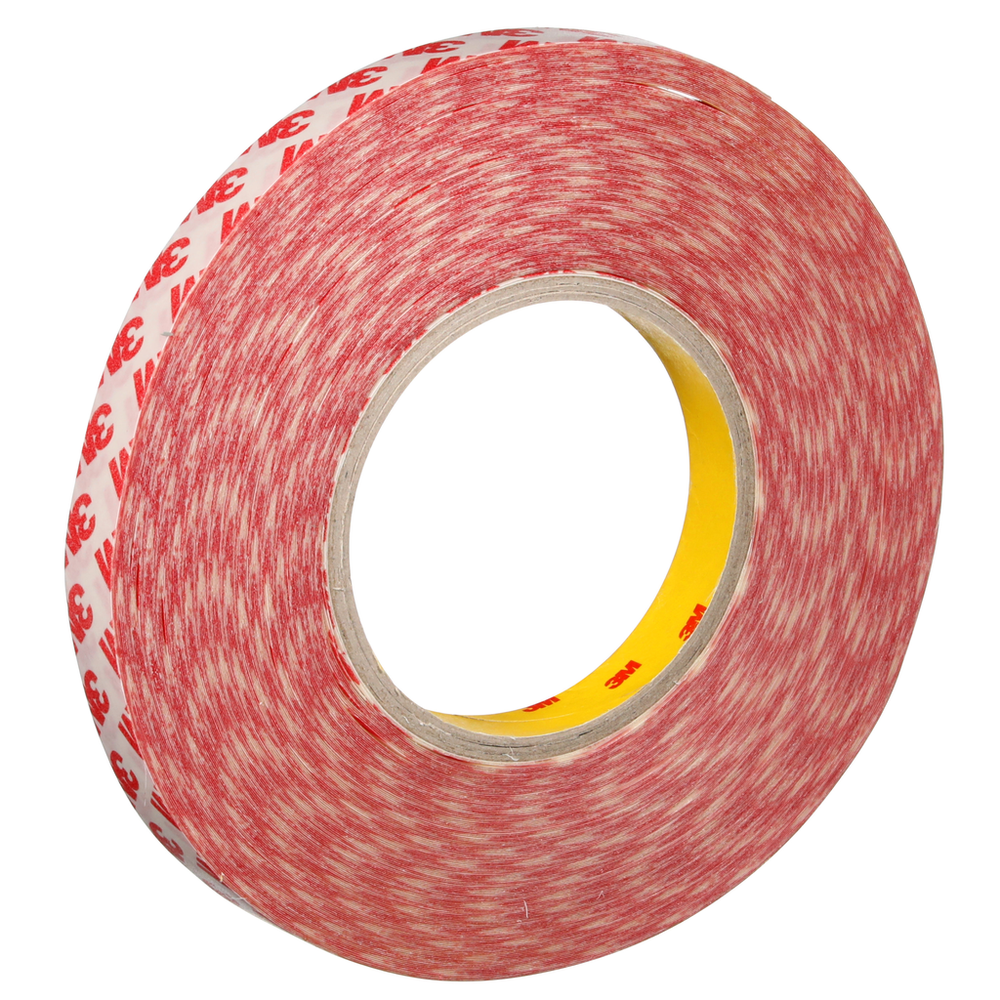

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project.

Features

  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll

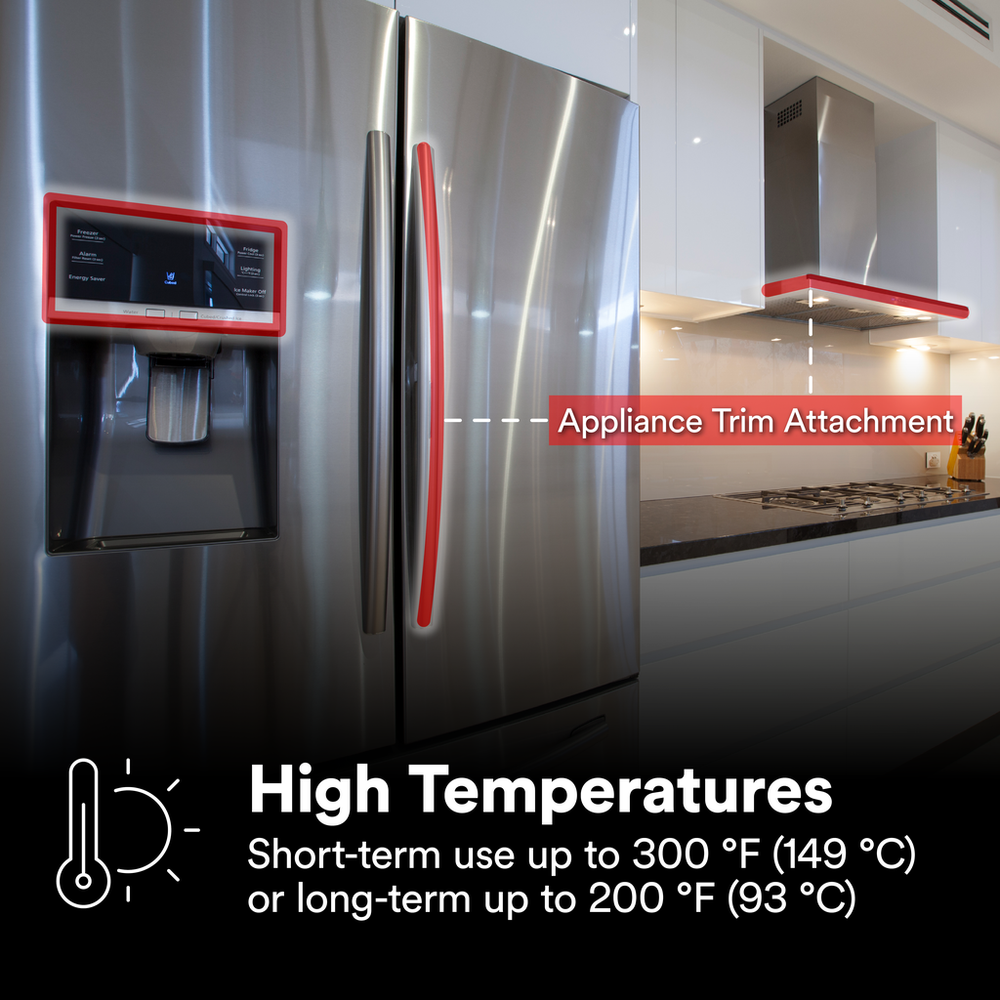

  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polycoated kraft (PCK - 58#) liner.
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more

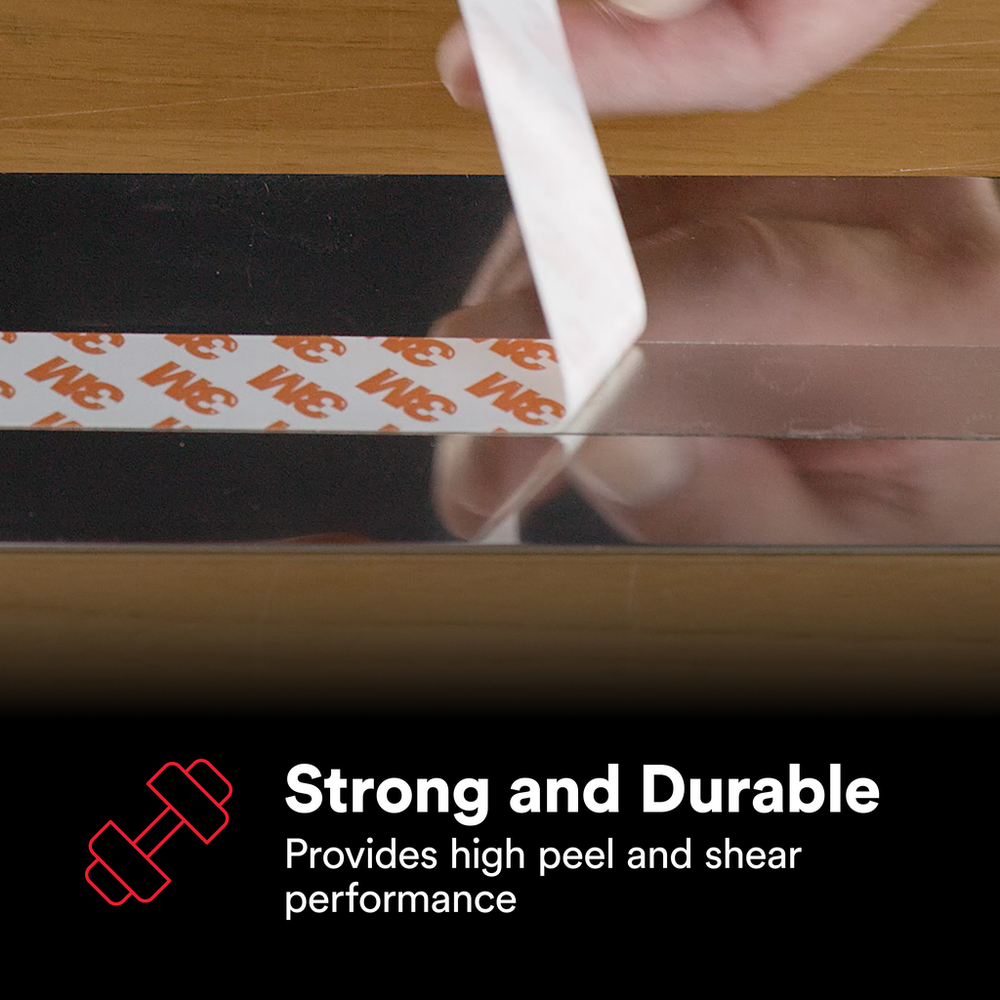

  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginPoland
Primary Liner Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.095
Product ColorTransparent
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner ColorWhite
Primary Liner Thickness (Metric) UOMmm
Adhesive TypeModified Acrylic
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Units per Case16.0
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.1
Overall Length (Metric) UOMm
Overall Width (Metric)15.0
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)3.75
Backing (Carrier) MaterialPET
Overall Length (Imperial) UOMyd
Overall Width (Imperial)0.6
Indoor/OutdoorIndoor/Outdoor
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)8.0
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial)54.7
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Minimum Operating Temperature (Celsius)-40.0
Face Side Adhesive Thickness (Imperial)3.75
Primary Liner58# Polycoated Kraft Paper (PCK)
Shelf Life UOMMonth
Face Side Adhesive Thickness (Metric)0.095
Backing (Carrier) Thickness (Metric)0.012
Overall Width (Imperial) UOMin
Number of Adhesive SidesDouble-sided
Primary Liner Thickness (Imperial)3.9
Overall Length (Metric)50.0
Total Tape Thickness without Liner (Metric)0.2
Face Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)149.0
Backing (Carrier) Thickness (Imperial)0.47
Backing (Carrier) Thickness (Metric) UOMmm
