3M Products & Supplies

3M™ Double Coated Tape GPT-020, Paper Liner, 9mm x 50m, 27 Roll/Case - 7100369919

Sold As: 27-Pack
SKU: 7100369919
MPN: 7100369919
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060760401
3M ID: UU013578446
$155.79 ($5.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project.

Features

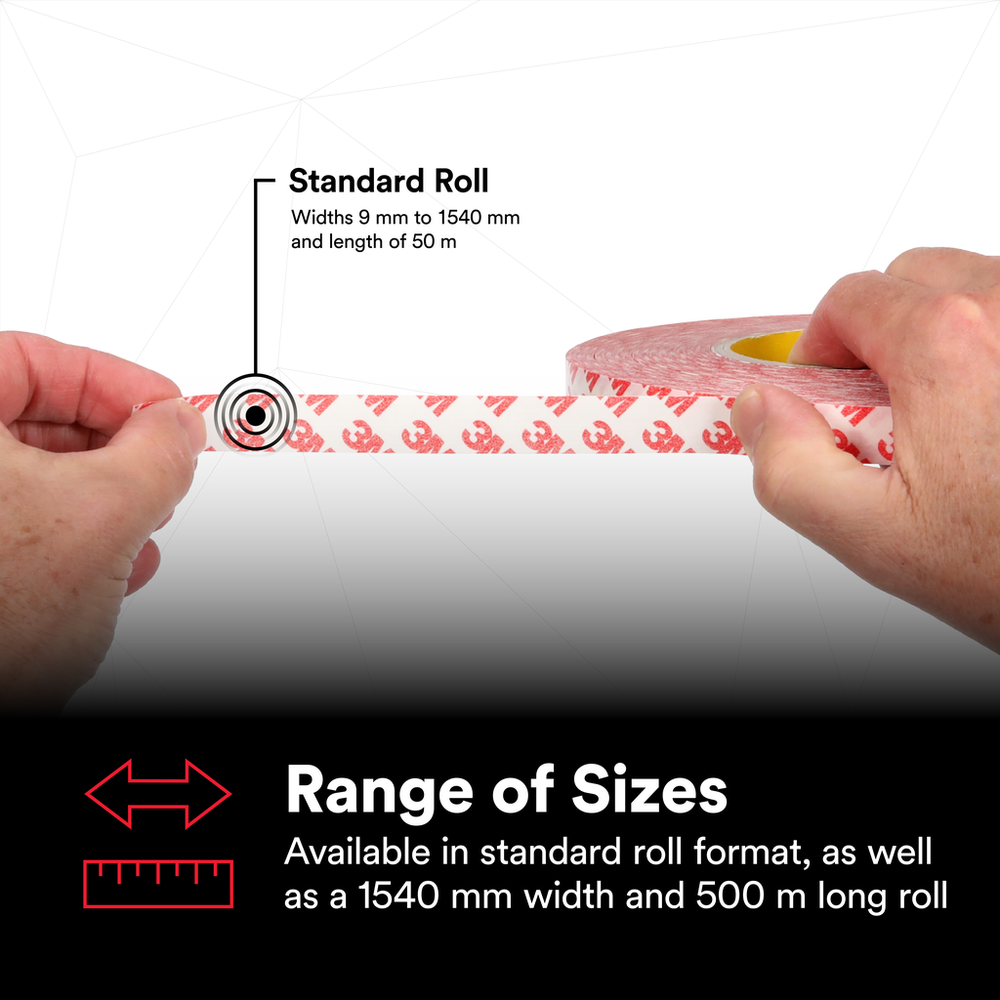

  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polycoated kraft (PCK - 58#) liner.
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
Spec Sheet



Downloads

Specifications

Shelf Life547
Primary Liner58# Polycoated Kraft Paper (PCK)
Backing (Carrier) Thickness (Imperial)0.47
Indoor/OutdoorIndoor/Outdoor
Backing (Carrier) MaterialPET
Face Side Adhesive Thickness (Metric) UOMmm
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Backing (Carrier) Thickness (Metric)0.012
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner ColorWhite
Overall Length (Metric)50.0
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)3.75
Face Side Adhesive Thickness (Imperial)3.75
Total Tape Thickness without Liner (Metric)0.2
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.1
Country of OriginPoland
Overall Width (Metric)9.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)54.7
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)8.0
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Maximum Operating Temperature (Fahrenheit)300.0
Number of Adhesive SidesDouble-sided
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)3.9
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case27.0
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorTransparent
Back Side Adhesive Thickness (Metric)0.095
Face Side Adhesive Thickness (Metric)0.095
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)149.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Imperial)0.35
Overall Width (Metric) UOMmm
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeModified Acrylic
Overall Width (Imperial) UOMin
