3M Products & Supplies

3M™ Double Coated Tape GPT-020, Paper Liner, 25mm x 50m, 10 Roll/Case - 7100369922

Sold As: 10-Pack
SKU: 7100369922
MPN: 7100369922
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060760562
3M ID: UU013578479
$160.35 ($16.04 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project.

Features

  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)

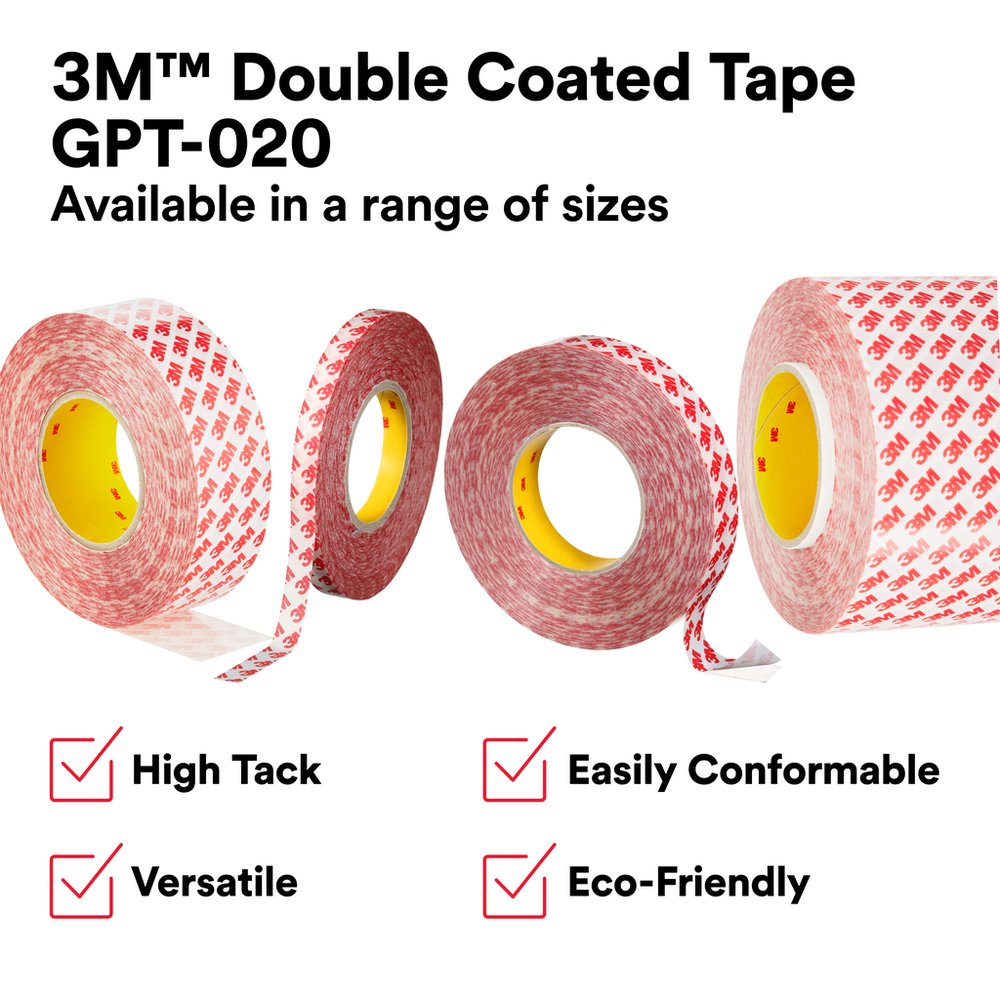

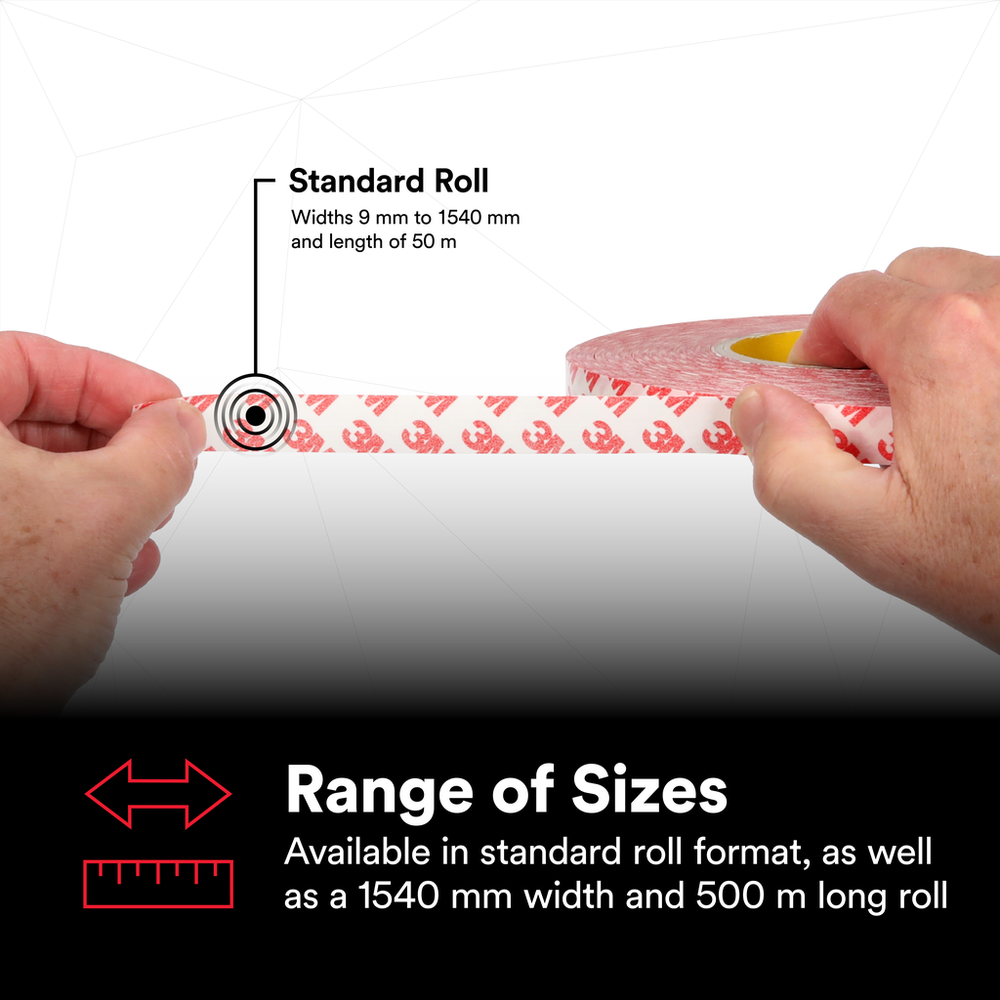

  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polycoated kraft (PCK - 58#) liner.

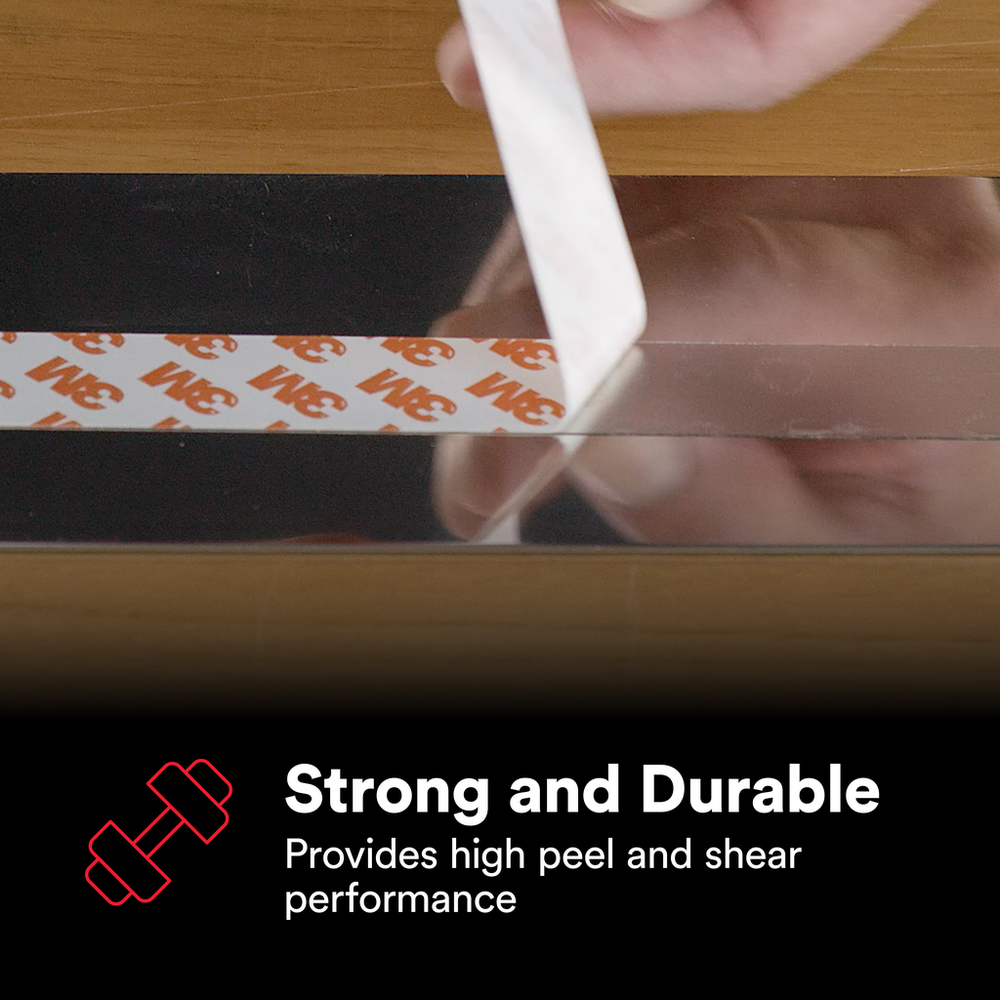

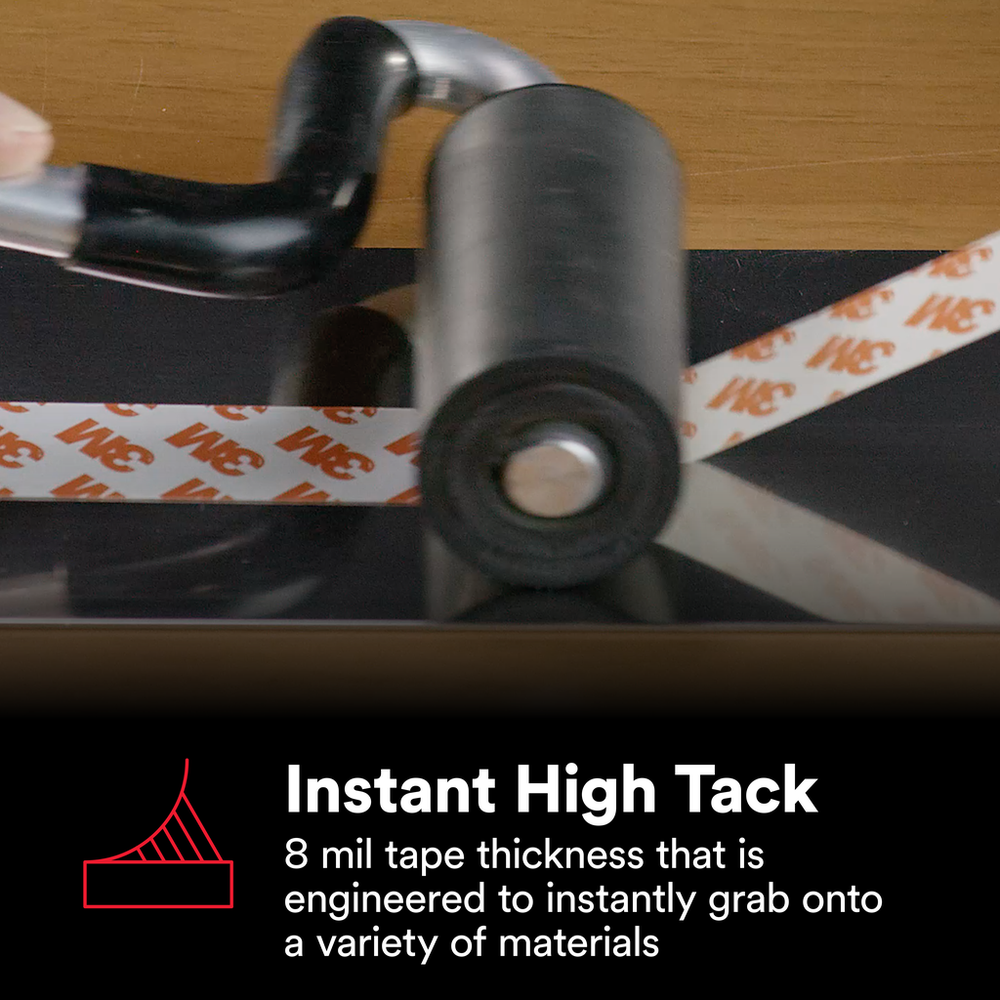

  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
Spec Sheet



Downloads

Specifications

Shelf Life547
Total Tape Thickness without Liner (Imperial)8.0
Overall Length (Metric) UOMm
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius)149.0
Primary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)3.75
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)25.0
Number of Adhesive SidesDouble-sided
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner ColorWhite
Overall Length (Imperial)54.7
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.1
Adhesive TypeModified Acrylic
Units per Case10.0
Country of OriginPoland
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.2
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Face Side Adhesive Thickness (Metric)0.095
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric)50.0
Back Side Adhesive Thickness (Metric)0.095
Primary Liner58# Polycoated Kraft Paper (PCK)
Maximum Operating Temperature (Fahrenheit)300.0
Primary Liner Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.012
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial)3.9
Product ColorTransparent
Face Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)1.0
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Indoor/OutdoorIndoor/Outdoor
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialPET
Backing (Carrier) Thickness (Imperial)0.47
Back Side Adhesive Thickness (Imperial)3.75
