3M Products & Supplies

3M™ Double Coated Tape GPT-020, Paper Liner, 50mm x 50m, 6 Roll/Case - 7100369955

Sold As: 6-Pack
SKU: 7100369955
MPN: 7100369955
For an accurate lead time please contact us
UPC: 00068060760609
3M ID: UU013578529
$192.51 ($32.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project.

Features

  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials

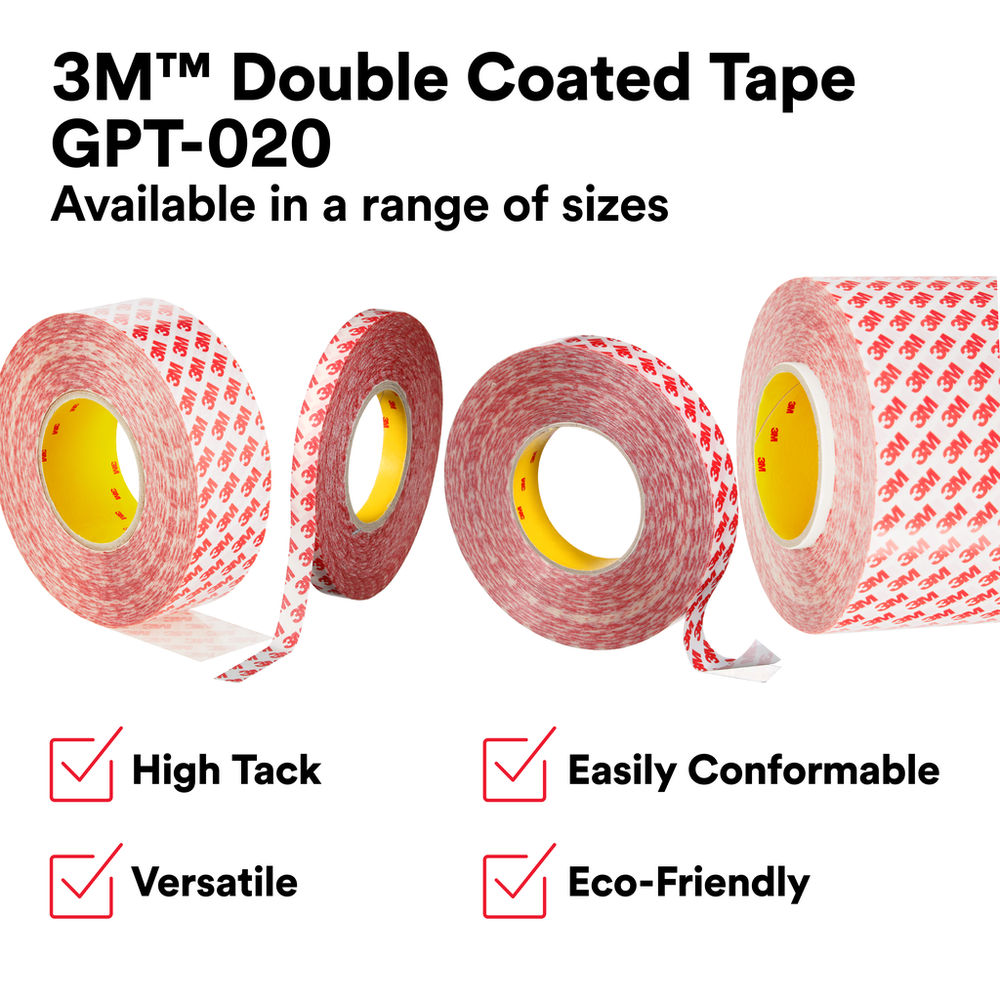

  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polycoated kraft (PCK - 58#) liner.
Spec Sheet



Downloads

Specifications

Shelf Life547
Backing (Carrier) MaterialPET
Maximum Operating Temperature (Celsius)149.0
Overall Width (Imperial) UOMin
Primary Liner ColorWhite
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric)0.095
Primary Liner Thickness (Imperial)3.9
Face Side Adhesive Thickness (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Total Tape Thickness without Liner (Imperial)8.0
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorTransparent
Country of OriginPoland
Back Side Adhesive Thickness (Imperial) UOMmil
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Number of Adhesive SidesDouble-sided
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.2
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric)0.012
Back Side Adhesive Thickness (Imperial)3.75
Primary Liner Thickness (Metric)0.1
Overall Width (Imperial)1.97
Overall Width (Metric)50.0
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Adhesive TypeModified Acrylic
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper (PCK)
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Units per Case6.0
Face Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.095
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric)50.0
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Face Side Adhesive Thickness (Imperial)3.75
Primary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)300.0
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)0.47
Overall Length (Imperial)54.7
