3M Products & Supplies

Scotch® Rubber Mastic Tape 2228, 1 in x 10 ft, Black, 1 roll/carton, 12 rolls/Case - 7000006048

Sold As: 12-Pack
SKU: 7000006048
MPN: 7000006048
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007507277
3M ID: 80610737662
5 Digit UPC: 50727
$302.52 ($25.21 / Count)
Hurry up! Current stock:

Product Description

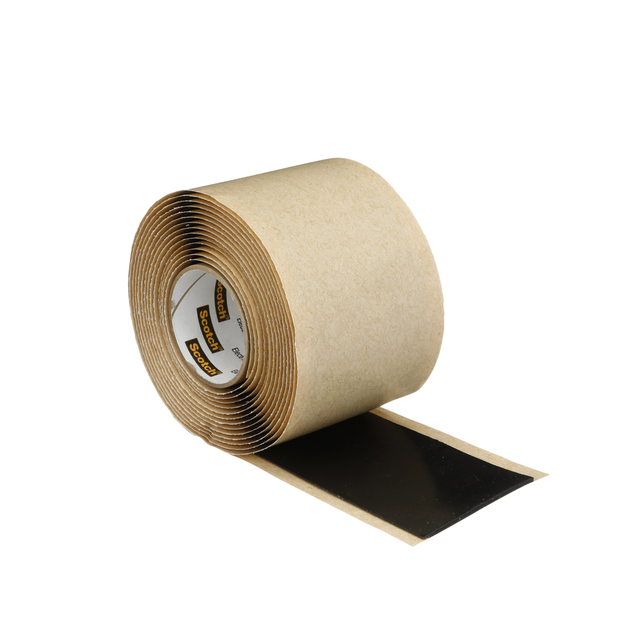

Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.

Features

  • Applicable over a temperature range of 32 to 100°F (0 to 38°C) without loss of physical properties

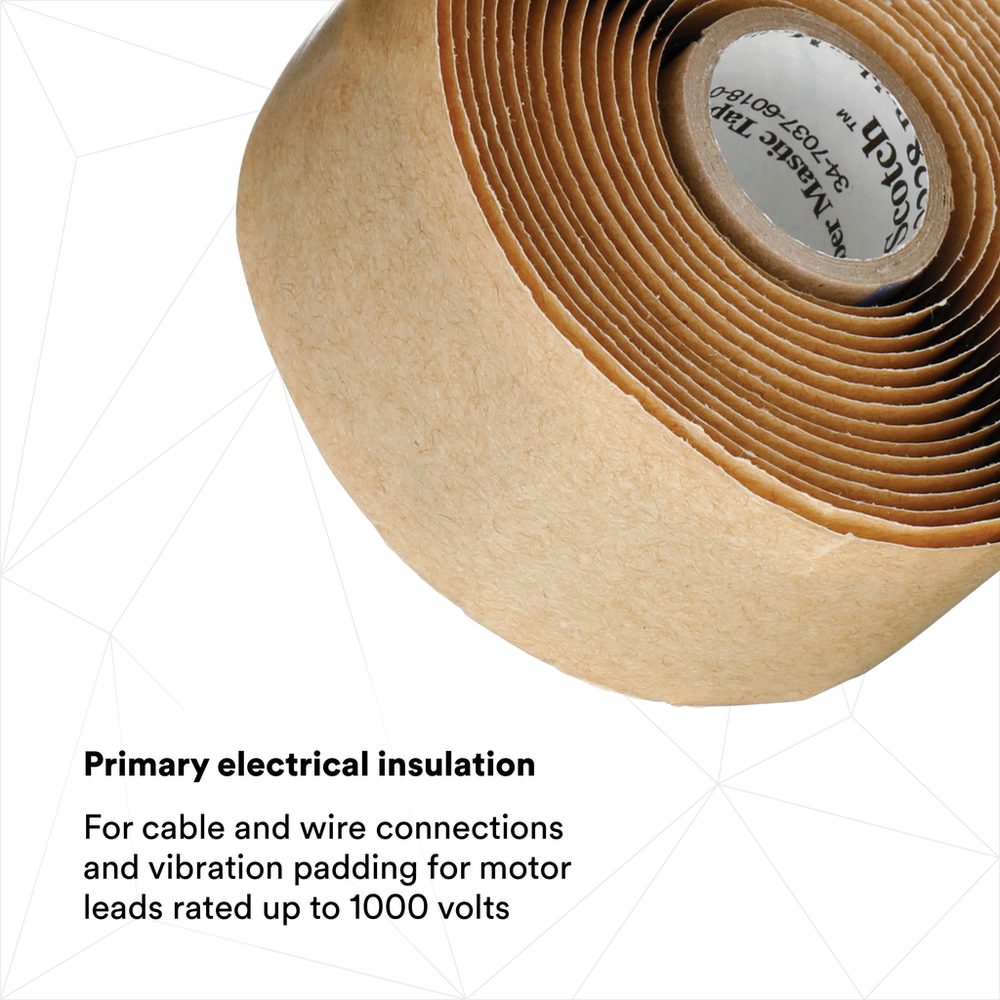

  • Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts

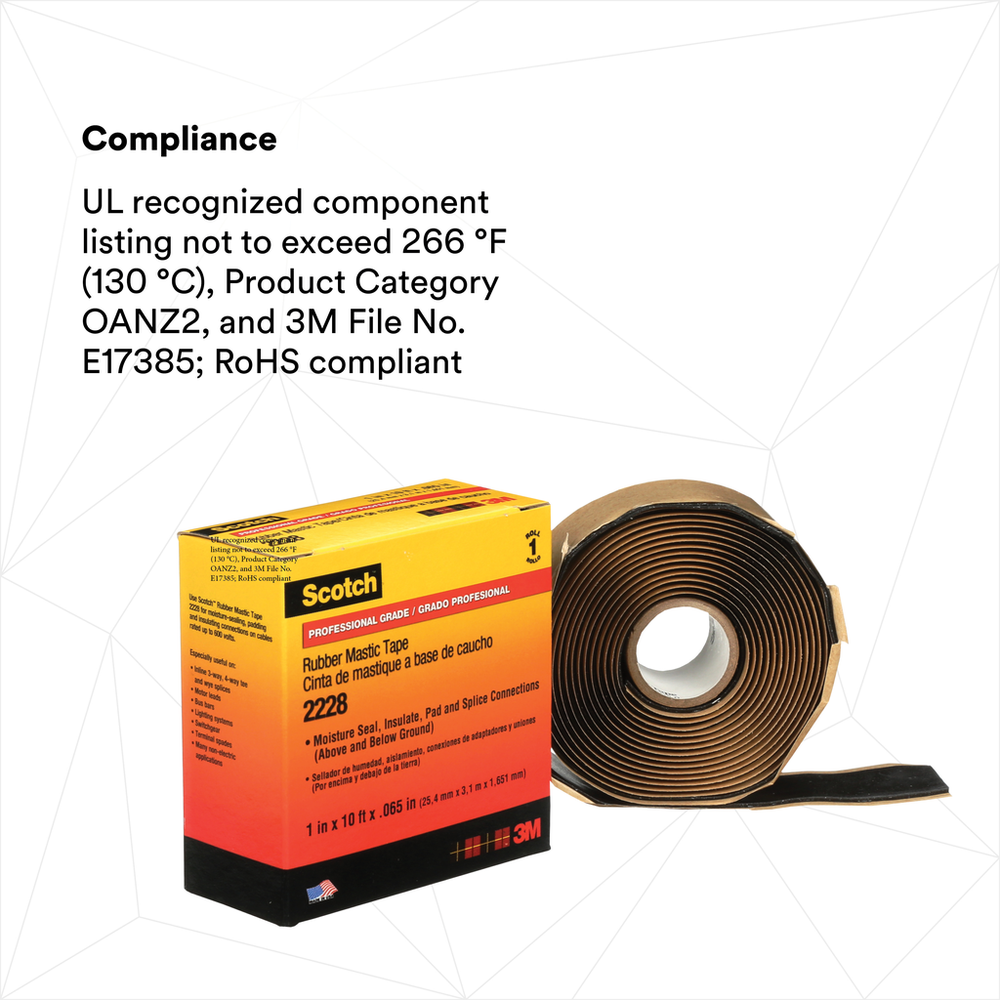

  • Is a UL recognized component for applications up to 130°C (266°F)
  • Thick construction allows quick application build–up and padding over irregular connections
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Dielectric Strength500.0
Dielectric Strength UOMV/mil
FeaturesSelf-sticking; UV-resistant
Specifications MetASTM D-4388 Type 1, 2 & 3
Overall Length (Metric) UOMm
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Width (Imperial)1.0
Overall Length (Imperial) UOMft
Overall Length (Imperial)10.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)1.65
Overall Width (Imperial) UOMin
Product ColorBlack
Elongation at Break1000
Maximum Operating Temperature (Fahrenheit)266.0
Overall Width (Metric)25.4
Minimum Operating Temperature (Celsius) UOMDegree
ApplicationInsulation; Sealing
Adhesive TypeRubber
Overall Length (Metric)3.0
Voltage Rating35 kV
Maximum Operating Temperature (Celsius) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Backing (Carrier) MaterialEthylene Propylene Rubber
Minimum Operating Temperature (Celsius)0.0
Total Tape Thickness without Liner (Imperial)65.0
Maximum Operating Temperature (Celsius)130.0
