3M Products & Supplies

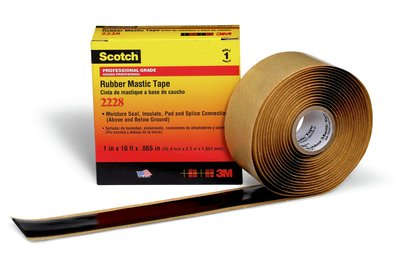

Scotch® Rubber Mastic Tape 2228, 2 in x 3 ft, Black, 1 roll/carton, 48 rolls/Case - 7100005959

Sold As: 48-Pack
SKU: 7100005959
MPN: 7100005959
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007434788
3M ID: 80611200777
5 Digit UPC: 43478
$572.14 ($11.92 / Count)
Hurry up! Current stock:

Product Description

Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.

Features

  • Applicable over a temperature range of 32 to 100°F (0 to 38°C) without loss of physical properties
  • RoHS 2011/65/EU Compliant
  • Thick construction allows quick application build–up and padding over irregular connections

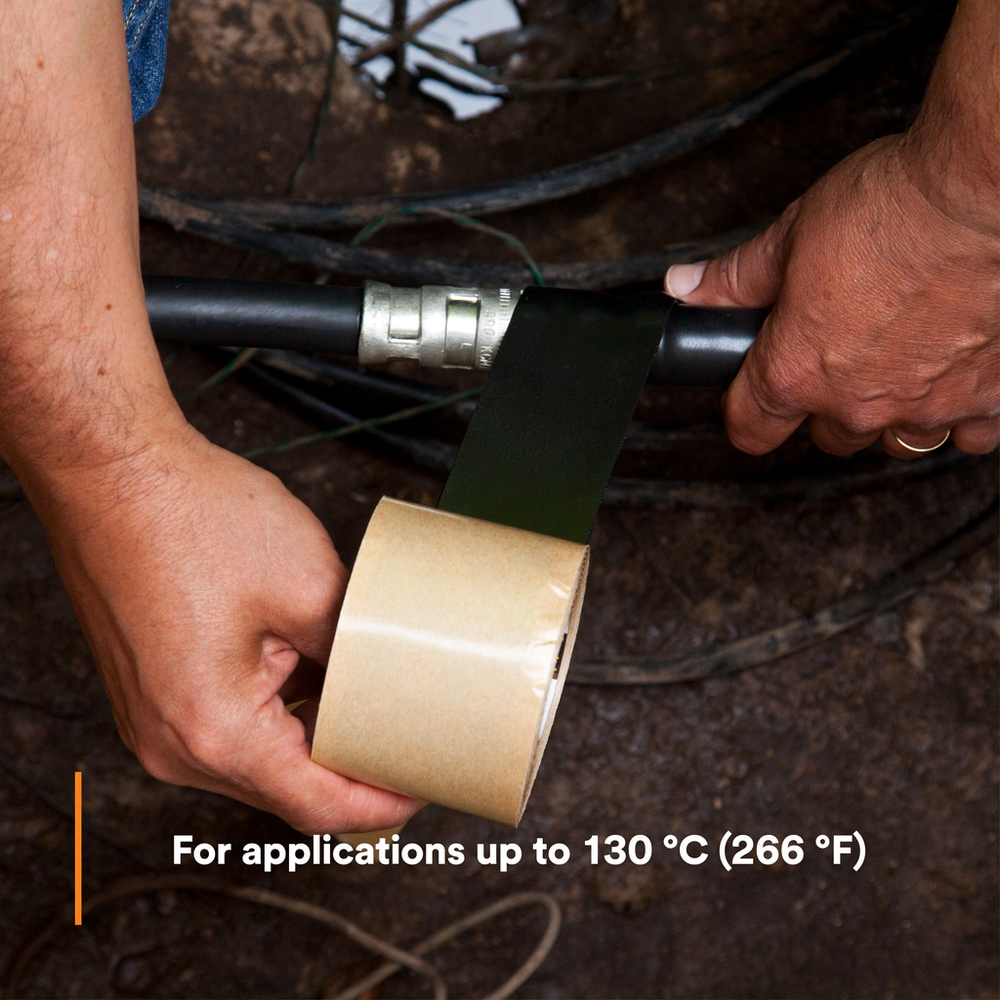

  • Is a UL recognized component for applications up to 130°C (266°F)
  • Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginUnited States
Overall Length (Imperial) UOMft
Dielectric Strength UOMV/mil
Total Tape Thickness without Liner (Metric)1.65
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)65.0
Maximum Operating Temperature (Fahrenheit)266.0
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationInsulation; Sealing
Overall Width (Imperial)2.0
Backing (Carrier) MaterialEthylene Propylene Rubber
Overall Length (Imperial)3.0
Overall Length (Metric)0.91
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)50.8
Maximum Operating Temperature (Celsius)130.0
Overall Width (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Dielectric Strength500.0
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorBlack
Minimum Operating Temperature (Celsius)0.0
Elongation at Break1000
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
