3M Products & Supplies

Scotch® Rubber Mastic Tape 2228, 2 in x 10 ft, Black, 10 Rolls/Case - 7000005986

Sold As: 10-Pack
SKU: 7000005986
MPN: 7000005986
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007096566
3M ID: 80610322945
5 Digit UPC: 9656
$501.95 ($50.20 / Count)
Hurry up! Current stock:

Product Description

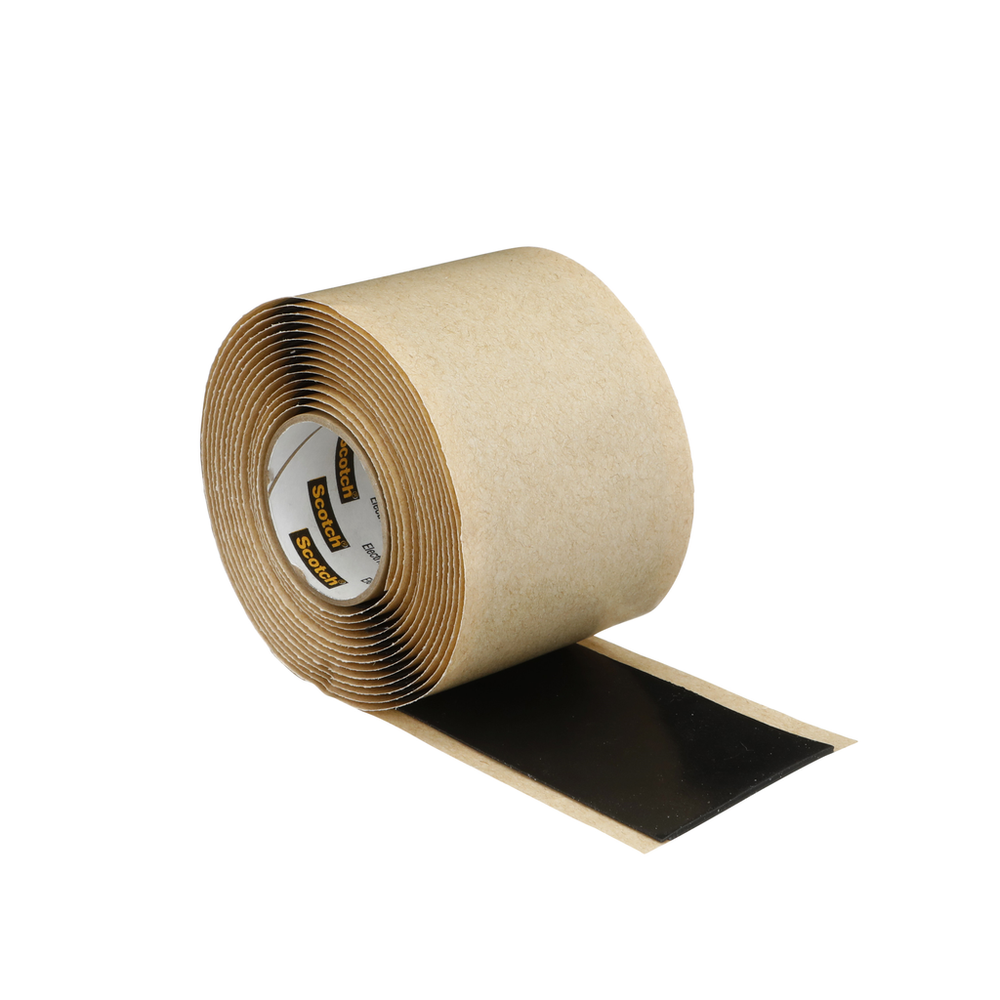

Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.

Features

  • Applicable over a temperature range of 32 to 100°F (0 to 38°C) without loss of physical properties

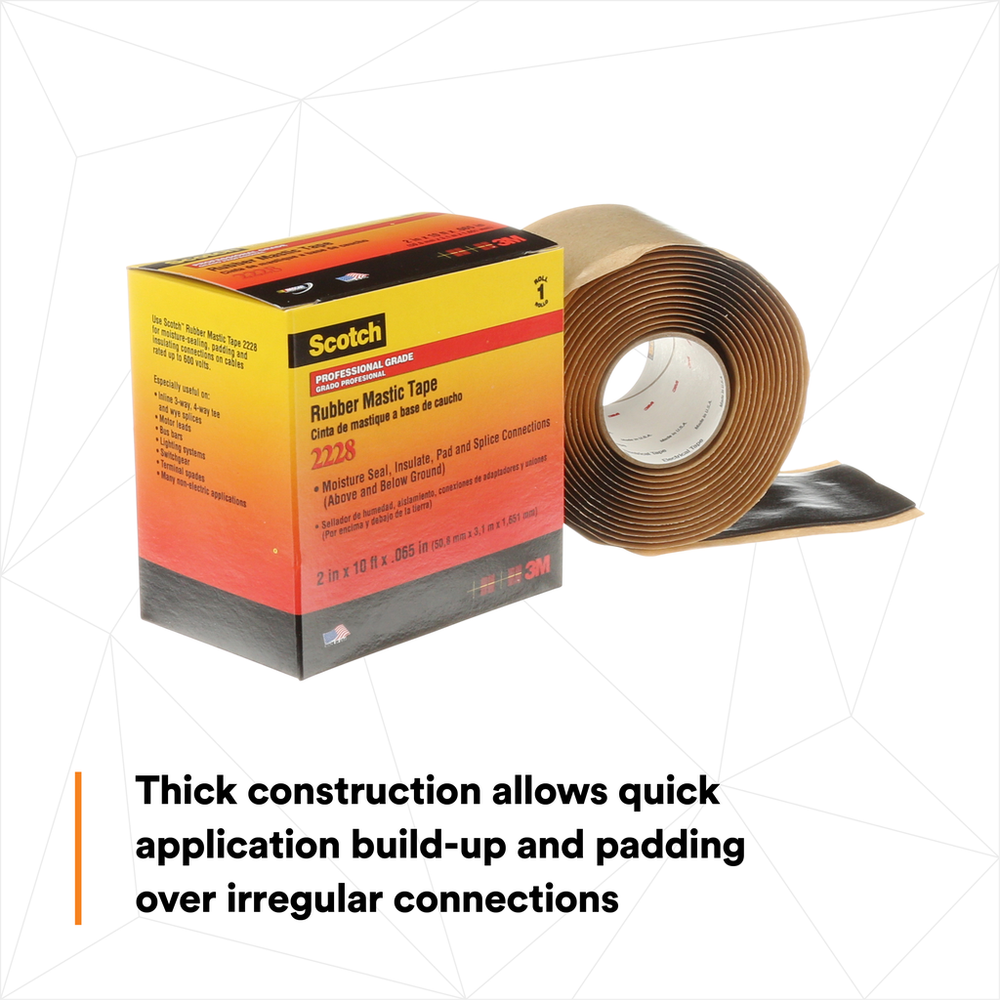

  • Thick construction allows quick application build–up and padding over irregular connections

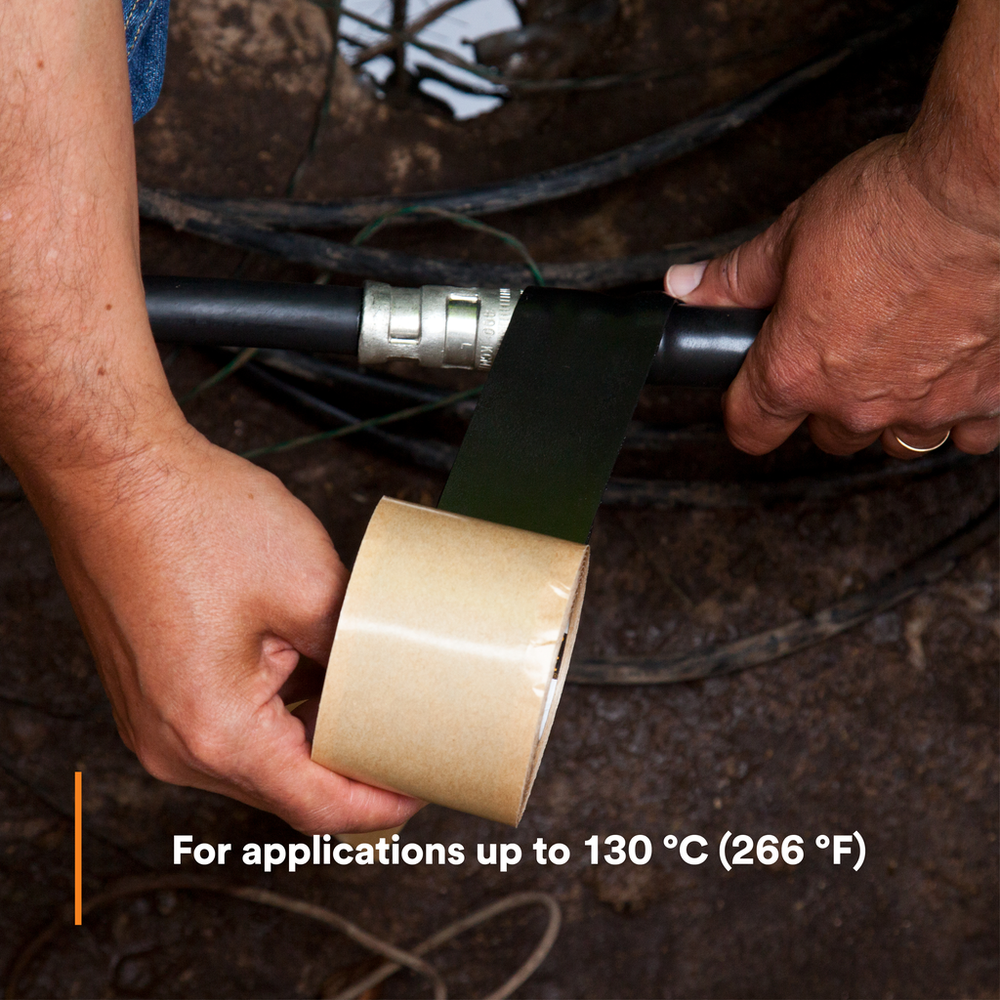

  • Is a UL recognized component for applications up to 130°C (266°F)
  • Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Celsius)90.0
Overall Width (Metric) UOMmm
FeaturesSelf-sticking; UV-resistant
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)2.0
Minimum Operating Temperature (Celsius)0.0
Total Tape Thickness without Liner (Imperial)65.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength UOMV/mil
ApplicationInsulation
Product ColorBlack
Dielectric Strength500.0
Overall Length (Metric)3.0
Elongation at Break1000
Specifications MetASTM D-4388 Type 1, 2 & 3
Backing (Carrier) MaterialEthylene Propylene Rubber
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)194.0
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMYear
Adhesive TypeMastic
Overall Length (Imperial)10.0
Overall Length (Imperial) UOMft
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)1.65
Voltage Rating600 V
Overall Width (Metric)50.8
