3M Products & Supplies

Scotch® Super 33+ Vinyl Electrical Tape, 1-1/2 in x 36 yd, 1-1/2 in Core, Black, 50 rolls/Case - 7000031512

Sold As: 50-Pack
SKU: 7000031512
MPN: 7000031512
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007502364
3M ID: 80610731913
5 Digit UPC: 50236
$1,540.32 ($30.81 / Count)
Hurry up! Current stock:

Product Description

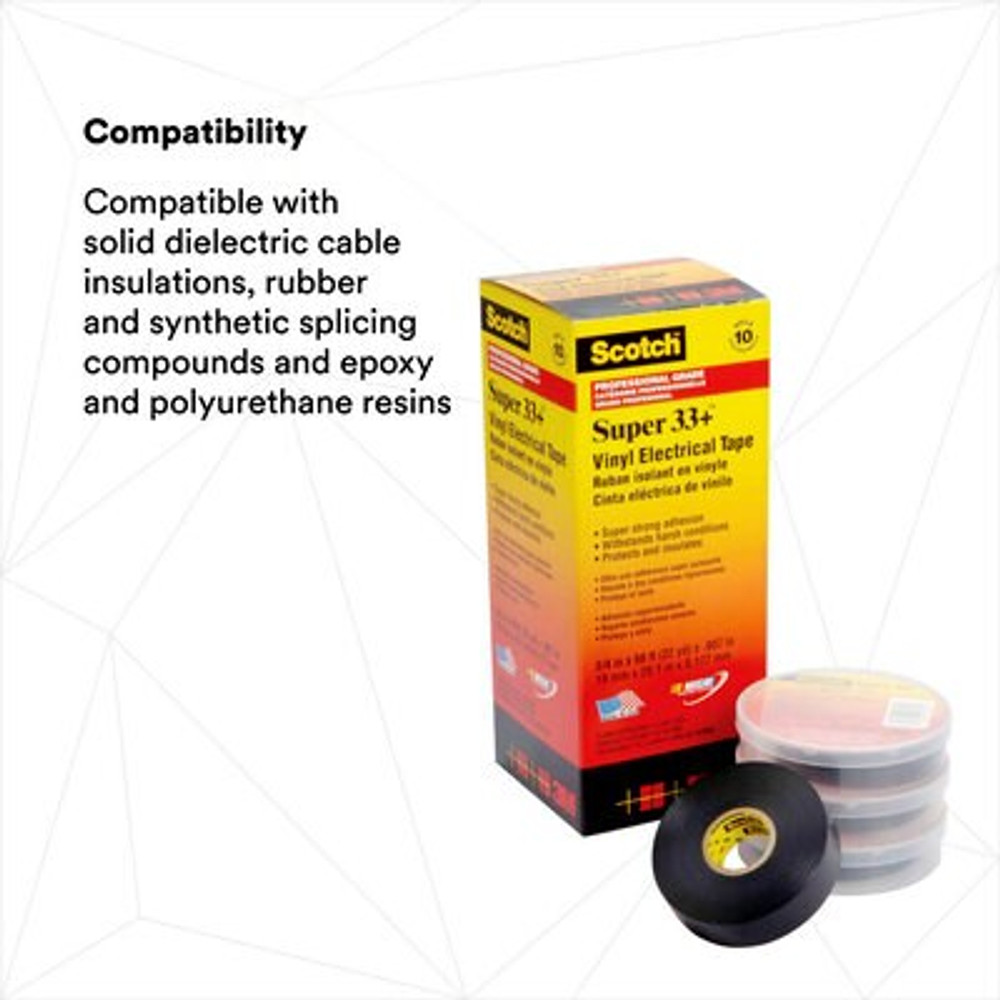

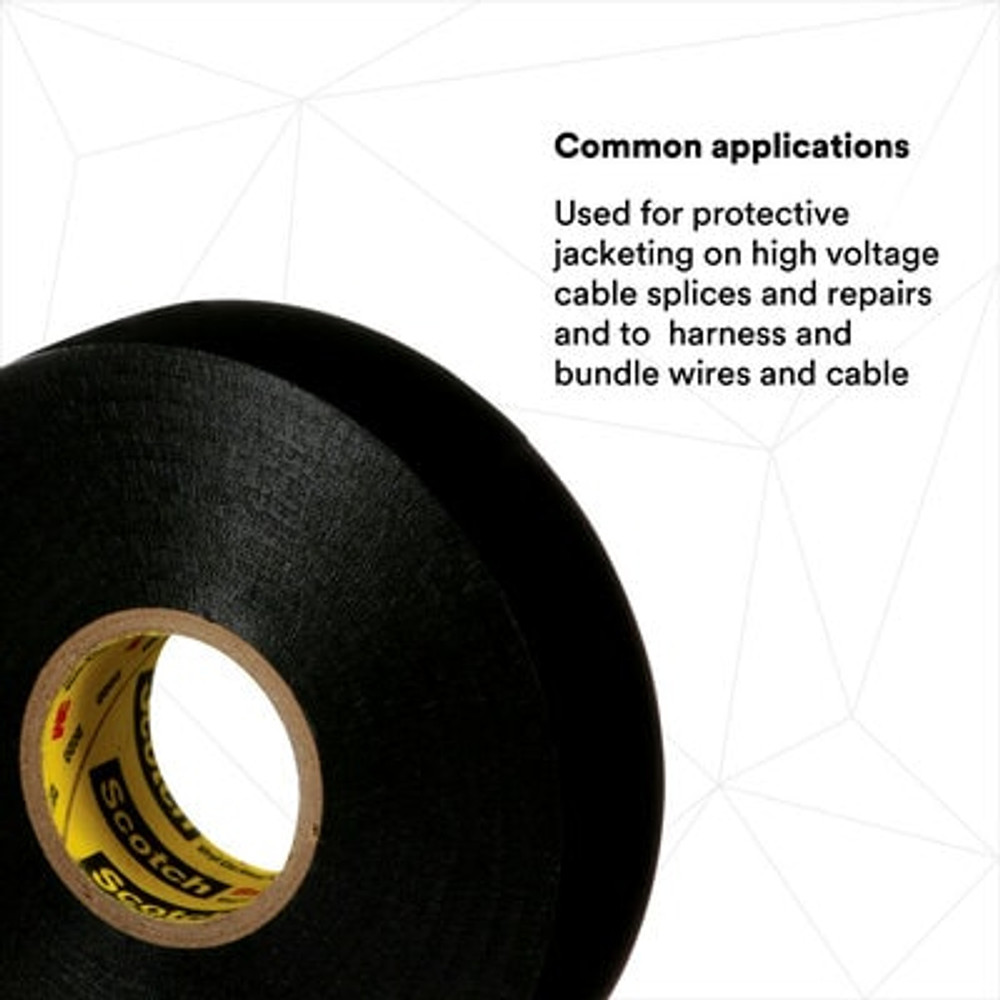

Scotch® Super 33+™ Vinyl Electrical Tape is a professional-grade tape that provides electrical insulation for low to high-voltage wires and cables rated up to 600V, with a total thickness of 7 mil (0.178 mm) when applied. This tape is designed with a pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its versatility, excelling in solid dielectric cable insulation, synthetic cable insulations, jackets, rubber and synthetic splicing compounds, as well as wire and cable harnessing. In critical indoor and outdoor environments, this tape conforms to irregular shapes to create a secure seal on electrical connections and other essential tasks. Its durability allows it to withstand various weather conditions, making it a reliable solution for long-lasting performance. With excellent insulation and adhesion properties, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C), meeting the requirements for flame retardancy. Scotch® Super 33+™ Vinyl Electrical Tape is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. Consider this tape for your next industrial application.

Features

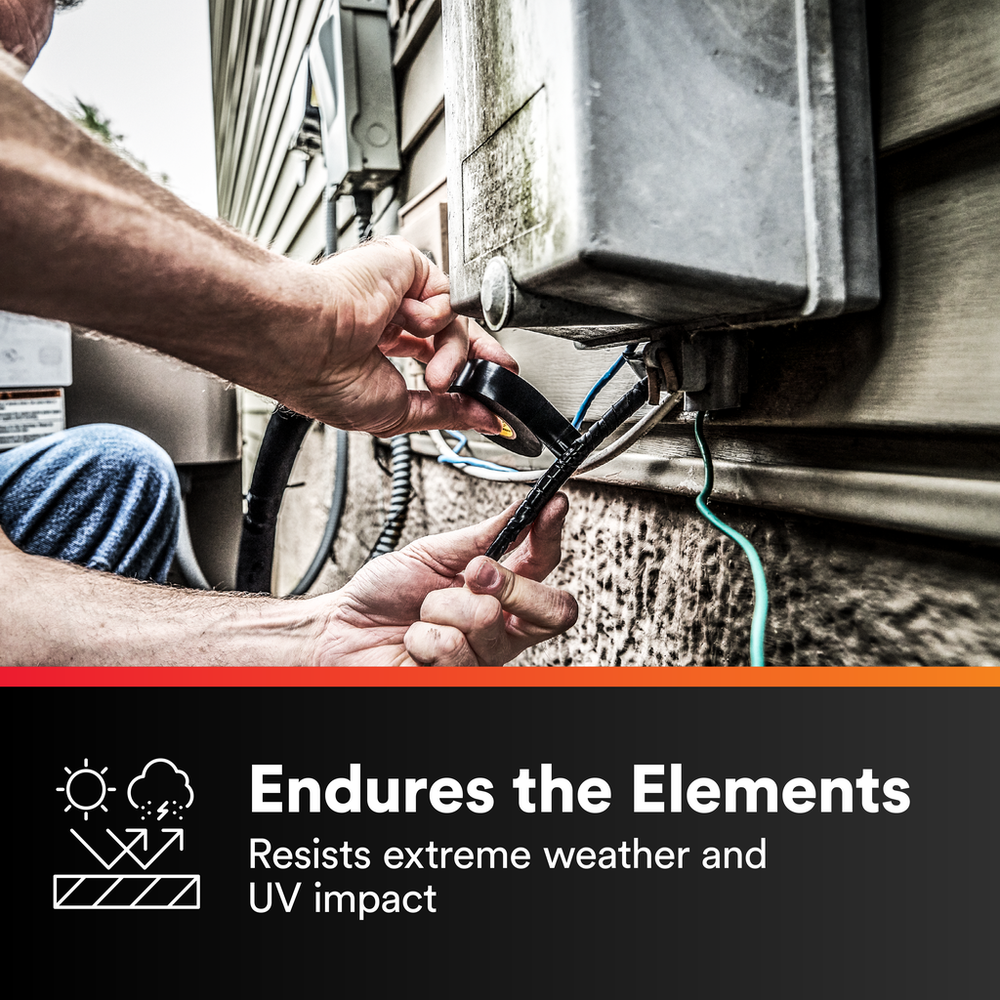

  • ENDURES THE ELEMENTS: Resists various weather conditions, making it a reliable solution for long-lasting performance
  • TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
  • HIGH CONFORMABILITY: Securely holds on irregular shapes to create a secure seal

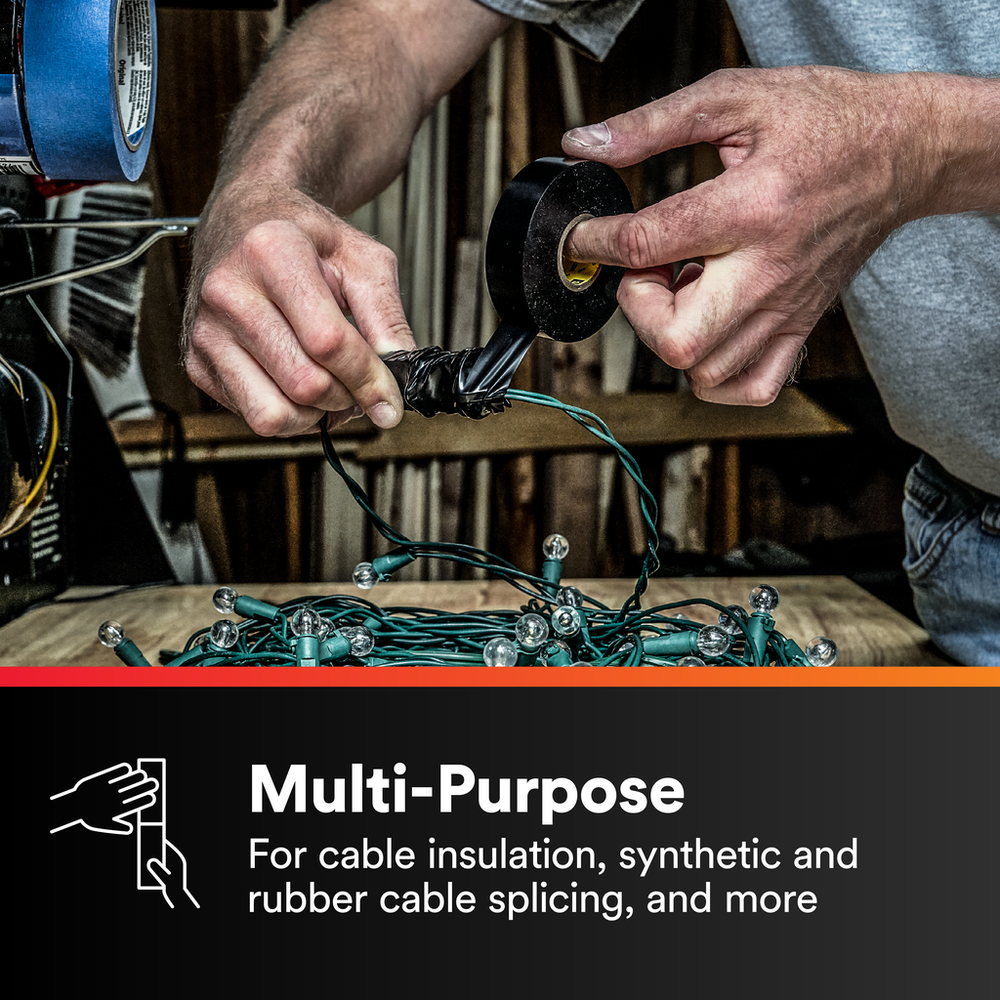

  • MULTI-PURPOSE: Excels in solid dielectric cable insulation, synthetic and rubber cable splicing, cable harnessing, and more
  • RELIABLE PERFORMANCE: Delivers dependable insulation for low to high-voltage wires and cables up to 600V

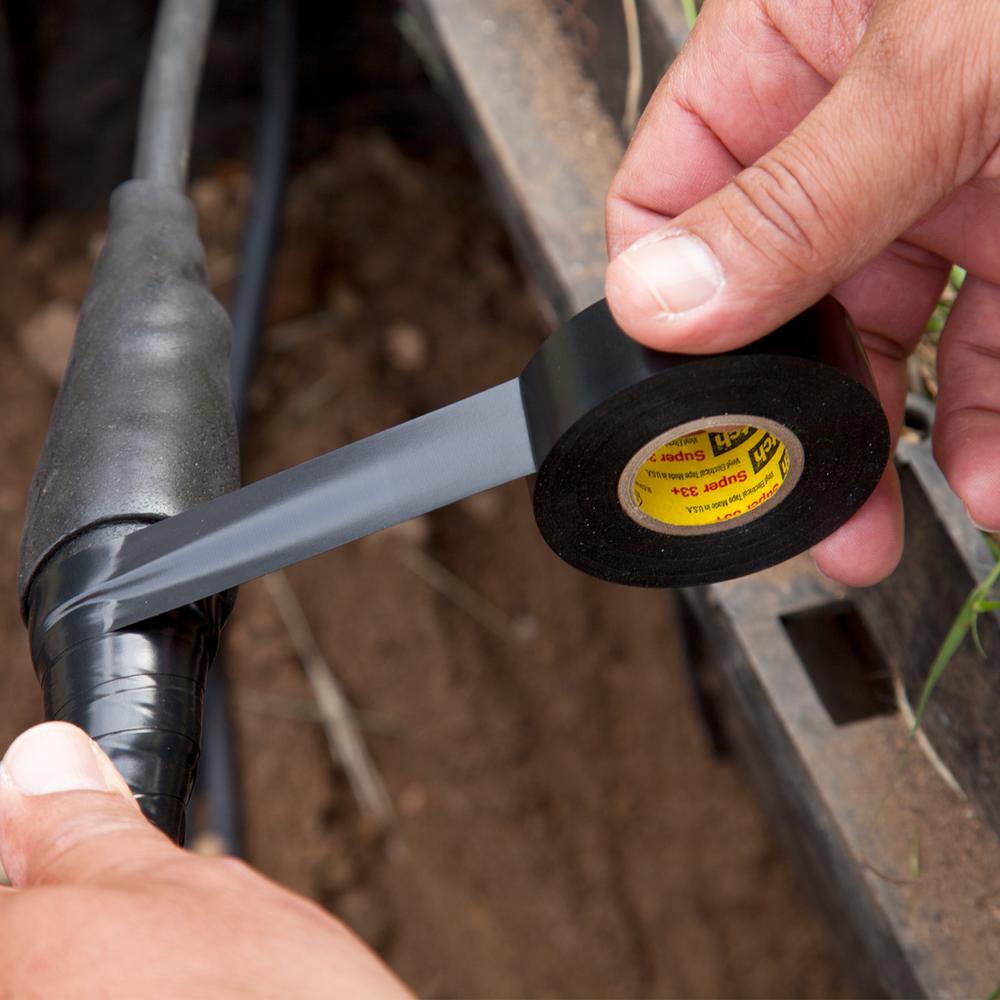

  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)108.0
Maximum Operating Temperature (Celsius)105.0
Adhesive TypeRubber
Product MarketsElectrical Equipment Manufacturing
Overall Length (Metric) UOMm
Insulation Resistance> 10^12 ohms
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)38.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Tape GradeProfessional
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)32.9
ApplicationElectrical Maintenance; Insulation
Maximum Operating Temperature (Fahrenheit)221.0
Product CategoryElectrical Tapes
Specifications MetCSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License
Overall Length (Imperial) UOMft
Shelf Life UOMYear
Overall Width (Imperial)1.5
Minimum Operating Temperature (Celsius)-18.0
Minimum Operating Temperature (Fahrenheit)0.0
Voltage Rating600 V
