3M Products & Supplies

Scotch® Vinyl Electrical Tape 33, 1/2 in x 36 yd, Black, 48 rolls/Case - 7000057496

Sold As: 48-Pack
SKU: 7000057496
MPN: 7000057496
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007101178
3M ID: 80012023034
5 Digit UPC: 10117
$546.60 ($11.39 / Count)
Hurry up! Current stock:

Product Description

Scotch® Tape 33 is a 7 mil thick, mid tier, vinyl electrical tape that provides electrical insulation for all wires and cables rated up to 600V. The flame retardant tape withstands a temperature range of 32 to 221 °F (0 to 105 °C). It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets and splicing compounds.

Features

  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
  • Resists UV rays, abrasion, moisture, alkalis, solvents and acids
  • Withstands a temperature range of 32 to 221 °F (0 to 105 °C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

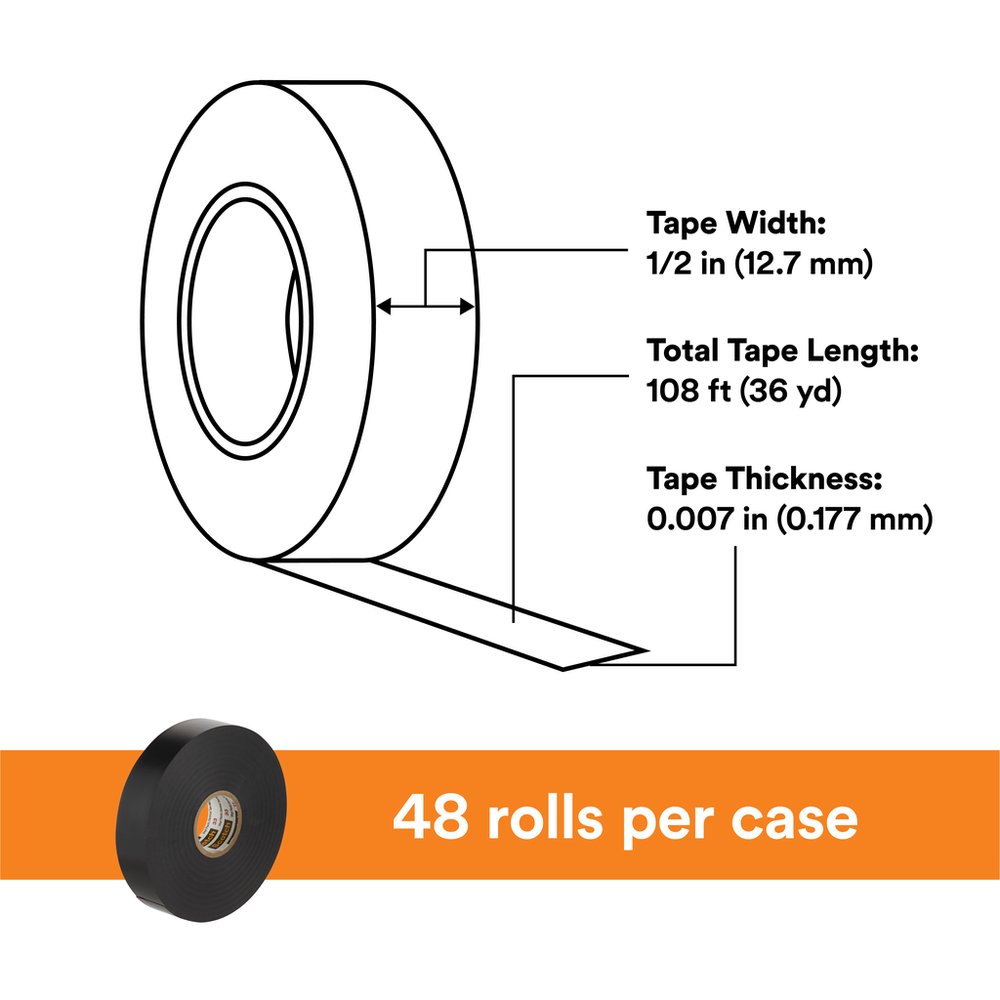

Overall Width (Metric)12.7 mm
Tape GradePremium
Maximum Operating Temperature (Celsius)105 Degree Celsius
Voltage Rating600 V
Overall Length (Imperial)36 yd
Total Tape Thickness without Liner (Metric)0.18 mm
Insulation Resistance> 10^6 megohms
Minimum Operating Temperature (Celsius)0 Degree Celsius
ApplicationInsulation
Overall Length (Metric)32.9 m
Adhesive TypeRubber
Elongation at Break250% at 72°F (22°C)
Overall Width (Imperial)0.5 in
Maximum Operating Temperature (Fahrenheit)220 Degree Fahrenheit
Specifications MetUL Listed - CSA Certified
Self-extinguishingYes
Total Tape Thickness without Liner (Imperial)7 mil
Adhesive MaterialBased adhesive rubber pressure sensitive
Product FormRoll
FamilyScotch® Super 33+™ Vinyl Electrical Tape
UV ResistantYes
Total Thickness0.18 mm
Chemical ResistantYes
Adhesion to Steelen-CA: 24 oz./in (2.6 N/10 mm) - en-US: 24 oz./in (2.6 N/10 mm) - fr-CA: 24 oz./in (2.6 N/10 mm)
VulcanizingNo
Color FamilyBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL ApprovalYes
Tensile Strength (Metric)30 N/10mm
Breaking Strength (Imperial)15 lb/in
Tape ColorBlack
Tape Width (Metric)12.7 mm
Product TypeVinyl Electrical Tapes
Suitable for High VoltageNo
Product ColorBlack
Flame RetardantYes
Backing MaterialVinyl - Polyvinyl Chloride
Tape Length (Metric)32.9 m
Adhesion Strength28 oz/in
