3M Products & Supplies

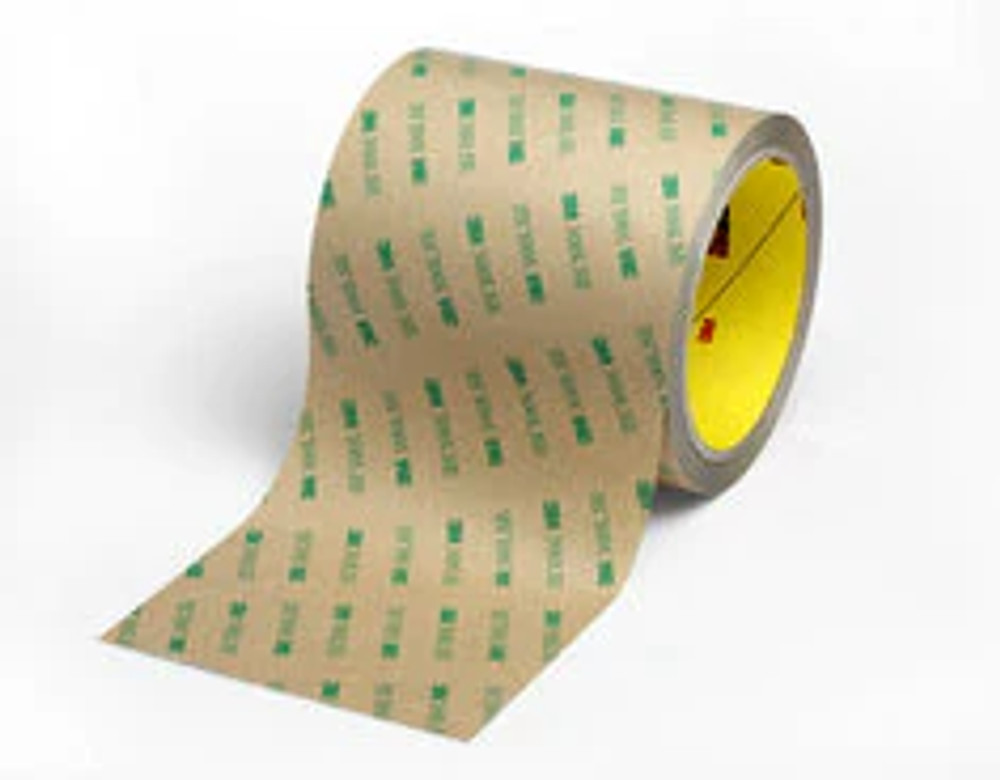

3M™ Double Coated Tape 9495LE, Clear, 0.875 in x 180 yd, 6.7 mil, Roll - 7010535943

Sold As: 54-Pack
SKU: 7010535943
MPN: 7010535943
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998787055
5 Digit UPC: #VALUE!
$4,859.28 ($89.99 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9495LE provides high bond strength to most surfaces, including many low surface energy plastics such as polypropylene and powder coated paints. The acrylic adhesive also provides excellent adhesion to surfaces contaminated lightly with oil typically used with machine parts.

Features

  • The bond strength of 3M™ Laminating Adhesive 300LSE increases as a function of time and temperature, and has very high initial adhesion
  • High bonding strength to LSE plastics
  • Film carrier makes for easy handling during slitting and die-cutting
  • 3M™ Double Coated Tape 9495LE features a single liner for ease in selective die cutting
  • Film carrier adding dimensional stability to foams and other substrates
  • Adds dimensional stability to foams and other substrates and also makes it easier to handle the tape during slitting and die-cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Face Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Product ColorTransparent
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Primary Liner58# Polycoated Kraft Paper (PCK)
Primary Liner Thickness (Metric)0.11
Primary Liner Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)3.4
IndustriesElectronics, General Industrial
Overall Length (Metric)164.59
Total Tape Thickness without Liner (Metric)0.17
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner ColorTan
Overall Width (Metric)22.23
Overall Width (Imperial)0.875
Backing (Carrier) Thickness (Imperial)0.5
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.071
Overall Length (Imperial)180.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.086
Adhesive TypeLow Surface Energy Acrylic Adhesive 300LSE
Backing (Carrier) Thickness (Metric)0.013
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric) UOMm
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialPET
Primary Liner Thickness (Imperial)4.2
Face Side Adhesive Thickness (Imperial)2.8
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)6.7
Back Side Adhesive Thickness (Imperial) UOMmil
