3M Products & Supplies

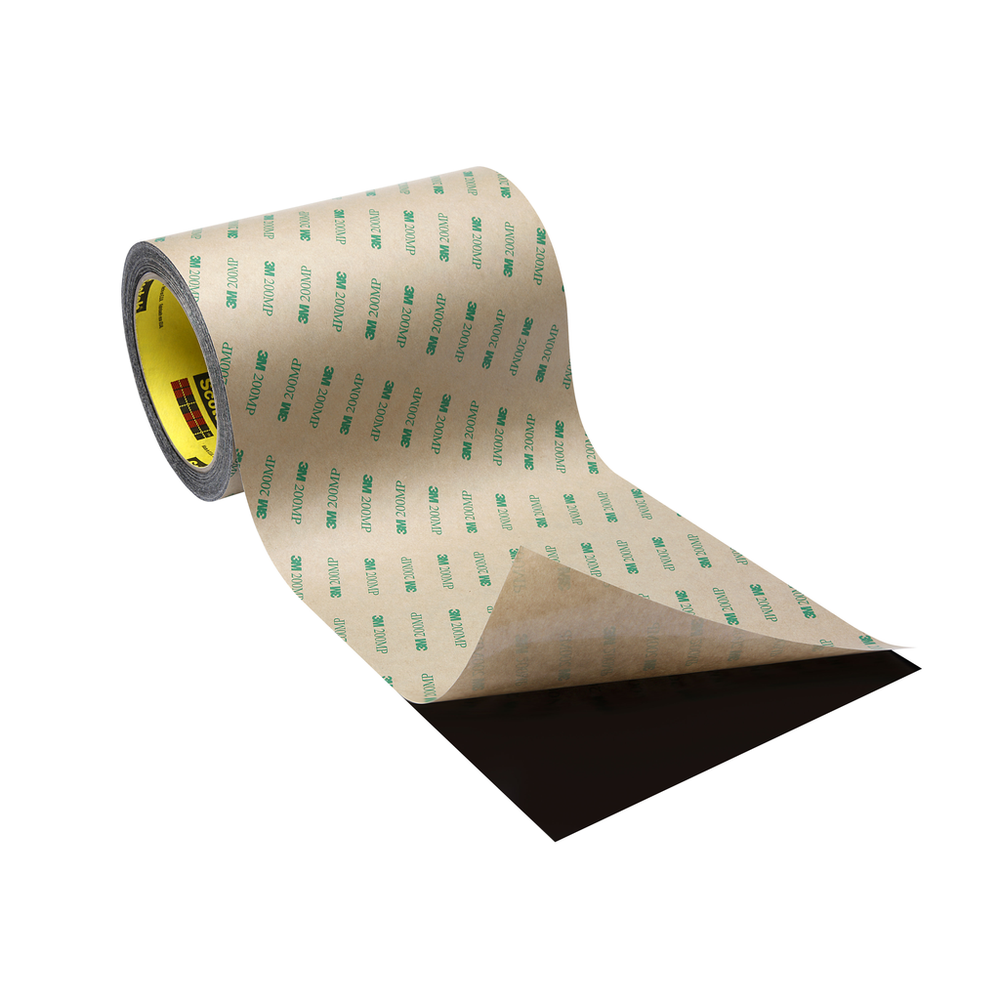

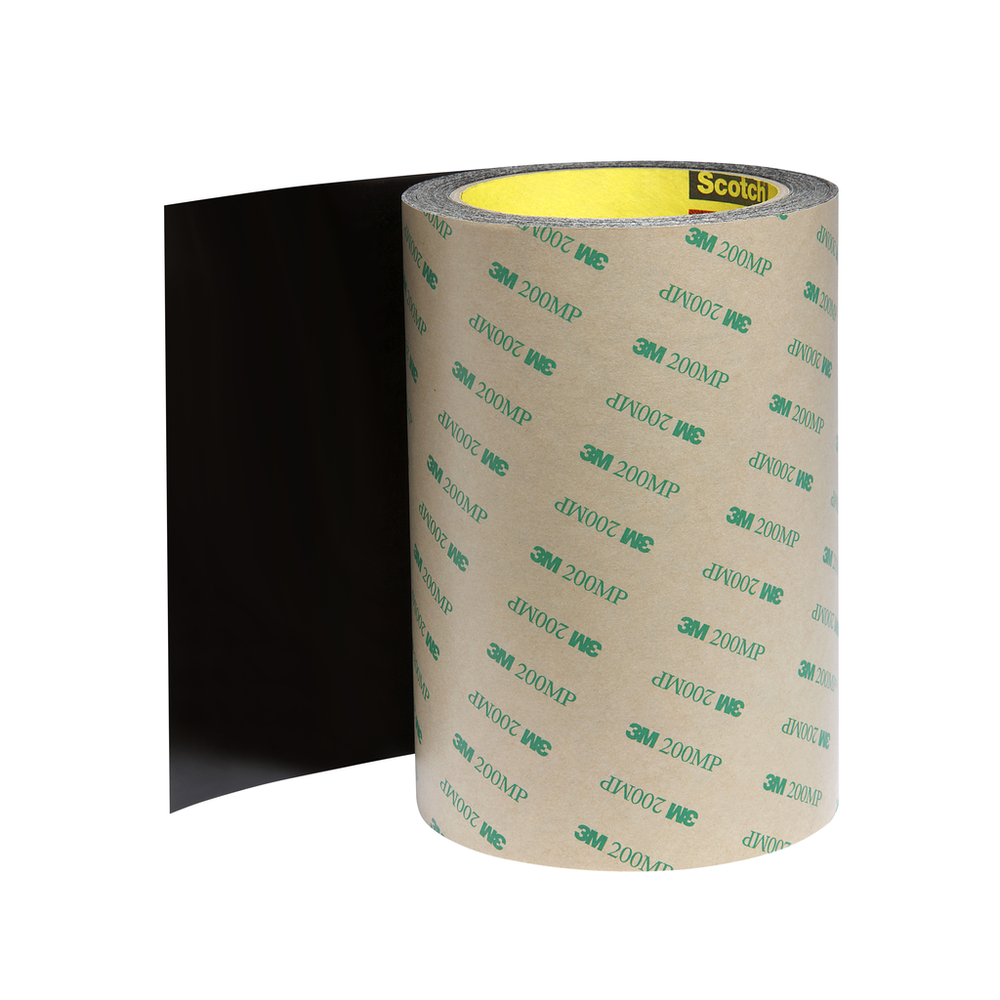

3M™ Double Coated Tape 9495LE, Clear, 3 in x 180 yd, 6.7 mil, Roll - 7010535720

Sold As: 18-Pack
SKU: 7010535720
MPN: 7010535720
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998784813
5 Digit UPC: #VALUE!
$5,553.46 ($308.53 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9495LE provides high bond strength to most surfaces, including many low surface energy plastics such as polypropylene and powder coated paints. The acrylic adhesive also provides excellent adhesion to surfaces contaminated lightly with oil typically used with machine parts.

Features

  • Film carrier makes for easy handling during slitting and die-cutting
  • High bonding strength to LSE plastics
  • Adds dimensional stability to foams and other substrates and also makes it easier to handle the tape during slitting and die-cutting
  • The bond strength of 3M™ Laminating Adhesive 300LSE increases as a function of time and temperature, and has very high initial adhesion
  • Film carrier adding dimensional stability to foams and other substrates
  • 3M™ Double Coated Tape 9495LE features a single liner for ease in selective die cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Product ColorTransparent
Backing (Carrier) Thickness (Imperial)0.5
Back Side Adhesive Thickness (Imperial)3.4
Overall Width (Imperial)3.0
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.071
Overall Length (Imperial)180.0
Face Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialPET
Primary Liner Thickness (Imperial)4.2
Total Tape Thickness without Liner (Metric)0.17
Overall Length (Metric) UOMm
Adhesive TypeLow Surface Energy Acrylic Adhesive 300LSE
Overall Length (Metric)164.59
IndustriesElectronics, General Industrial
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.013
Face Side Adhesive Thickness (Imperial)2.8
Primary Liner Thickness (Metric)0.11
Primary Liner ColorTan
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Metric)76.2
Back Side Adhesive Thickness (Metric)0.086
Face Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)6.7
Primary Liner58# Polycoated Kraft Paper (PCK)
