3M Products & Supplies

3M™ Double Coated Tape 9731-050, Clear, 6 in x 36 yd, 0.05 mm, Trimmed Ends Flush Core , 1 Roll/Case - 7100080412

Sold As: 4-Pack
SKU: 7100080412
MPN: 7100080412
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051131177239
3M ID: 70006399391
5 Digit UPC: 17723
$4,648.12 ($1162.03 / Count)
Hurry up! Current stock:

Product Description

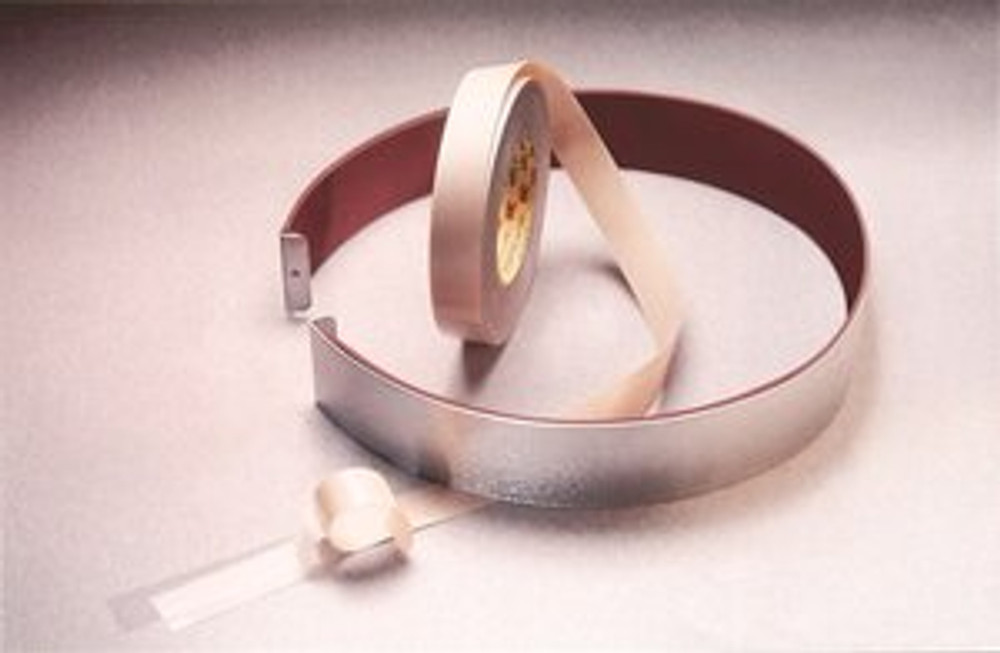

3M™ Double Coated Tape 9731-050 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Ideal for attaching silicone rubber elastomers and foam
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing MaterialPolyester
Carrier MaterialPolyester Film
Minimum Operating Temperature (Fahrenheit)-40.0
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Primary Liner Thickness (Imperial) UOMmil
Overall Length (Metric)32.91
Adhesive TypeAcrylic/Silicone
Overall Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Metric) UOMmm
Master Size Width (Metric) UOMcm
Primary Liner58# Polycoated Kraft Paper (PCK)
Product FormRoll
Overall Width (Metric)152.4
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Medical, Metalworking, Oil & Gas, Signage, Specialty Vehicles, Transportation
Backing (Carrier) Thickness (Imperial)0.056
Carrier Thickness0.56
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing (Carrier) Thickness (Metric)0.014
Primary Liner Thickness (Metric)0.11
Shelf Life UOMMonth
Master Size Width (Metric)122.0
Primary Liner ColorTan
Back Side Adhesive Thickness (Imperial)0.8
Master Size Length (Metric) UOMm
Shelf Life in Months (From Date of Manufacture)18.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive TypeSilicone
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyester Film
Master Size Length (Metric)98.8
ApplicationGasket Assembly
Carrier Thickness UOMmil
Face Side Adhesive Thickness (Imperial)0.6
Number of Adhesive SidesDouble-sided
Total Tape Thickness without Liner (Imperial)2.0
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Face Side Adhesive Thickness (Metric)0.015
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.2
Backing (Carrier) Thickness (Metric) UOMmm
Carrier Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)250.0
Overall Width (Imperial)6.0
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Carrier Thickness (Metric)0.014
Overall Thickness (Imperial)5.5
Total Tape Thickness without Liner (Metric)0.05
Maximum Operating Temperature (Celsius)121.0
Minimum Operating Temperature (Celsius)-40.0
Product ColorTransparent
