3M Products & Supplies

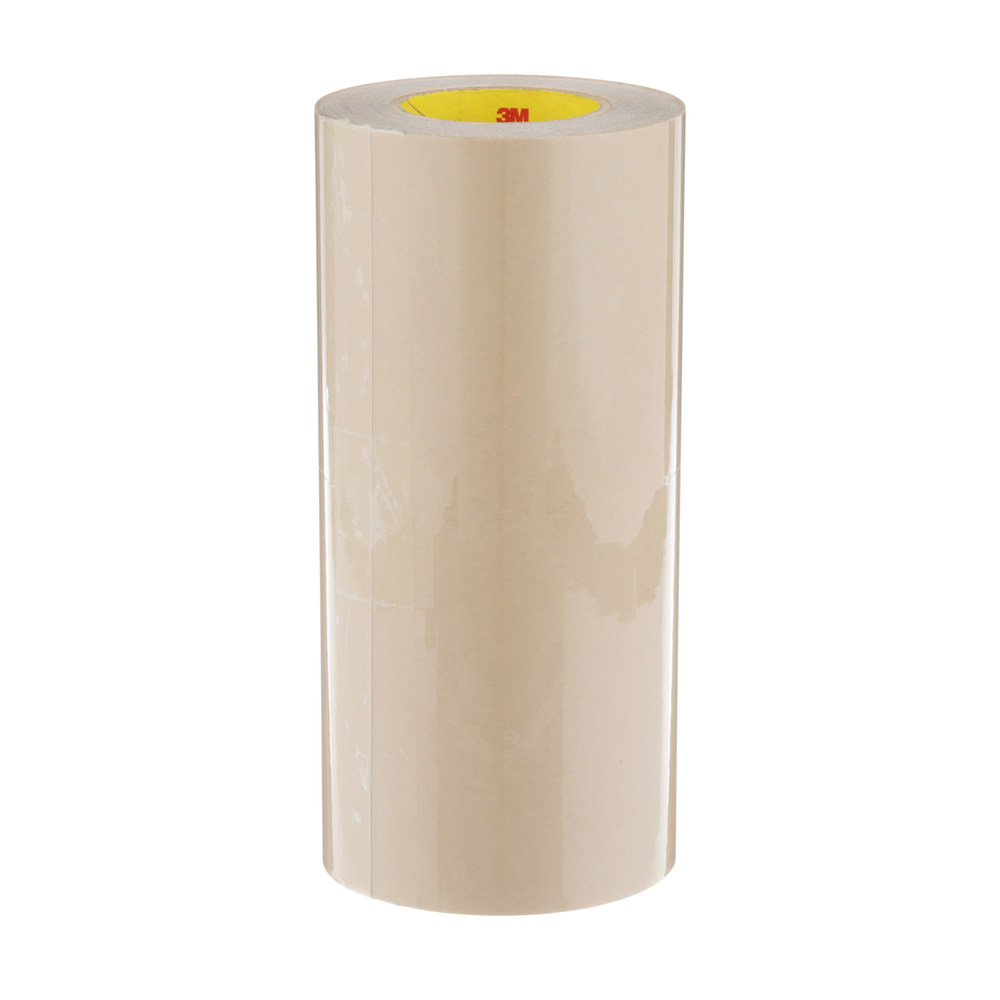

3M™ Double Coated Tape 9731, Clear, 12 in x 36 yd, 5.5 mil, 1 Roll/Case - 7000124196

Sold As: 4-Pack
SKU: 7000124196
MPN: 7000124196
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138955908
3M ID: 70006390077
5 Digit UPC: 95590
$7,154.35 ($1788.59 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Ideal for attaching silicone rubber elastomers and foam
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric)304.8
Carrier Thickness (Metric)0.03
Carrier Thickness0.0951388888888889
Back Side Adhesive TypeSilicone
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing (Carrier) MaterialPolyester Film
Face Side Adhesive Thickness (Imperial)1.6
Secondary Liner Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Overall Thickness (Imperial)5.5
Back Side Adhesive Thickness (Imperial)2.9
Overall Width (Metric) UOMmm
Master Size Width (Metric) UOMcm
Face Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.0
Shelf Life UOMMonth
Secondary Liner Thickness (Metric)0.07
Minimum Operating Temperature (Fahrenheit)-40.0
Adhesive TypeAcrylic/Silicone
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner Thickness (Imperial)2.9
Overall Width (Imperial)12.0
Total Tape Thickness without Liner (Imperial)5.5
Total Tape Thickness without Liner (Imperial) UOMmil
Carrier Thickness UOMmil
Face Side Adhesive Thickness (Metric)0.041
Primary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Core Size (Metric)76.2
Carrier MaterialPolyester Film
Primary Liner58# Polycoated Kraft Paper (PCK)
Overall Length (Metric)32.91
Indoor/OutdoorBoth
Back Side Adhesive Thickness (Metric) UOMmm
Tape TypeDouble Coated
Overall Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)250.0
Master Size Length (Metric)98.8
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial)36.0
Shelf Life in Months (From Date of Manufacture)12.0
Backing (Carrier) Thickness (Imperial) UOMmil
Core Size (Imperial)3.0
Backing (Carrier) Thickness (Metric)0.025
Units per Case1.0
Primary Liner ColorTan
Minimum Operating Temperature (Celsius)-40.0
Face Side Adhesive Thickness (Imperial) UOMmil
Carrier Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Core Size (Metric) UOMmm
Primary Liner Thickness (Metric)0.17
Master Size Length (Metric) UOMm
Assembly TypeGasket Attachment
Overall Length (Imperial) UOMyd
Master Size Width (Metric)122.0
Maximum Operating Temperature (Celsius)121.0
Product ColorTransparent
Product FormRoll
Total Tape Thickness without Liner (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Metric)0.14
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.2
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
