3M Products & Supplies

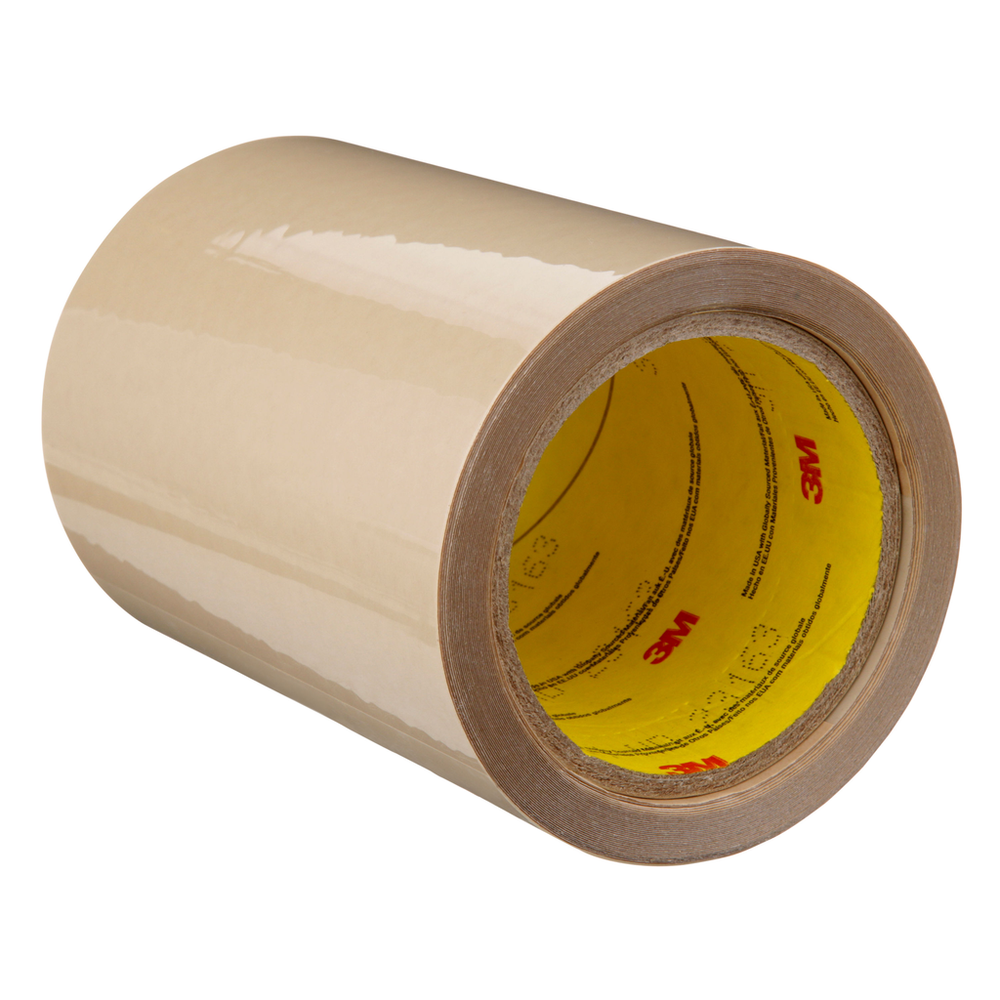

3M™ Double Coated Tape 9731, Clear, 6 in x 180 yd, 5.5 mil, 1 Roll/Case - 7010334305

Sold As: 8-Pack
SKU: 7010334305
MPN: 7010334305
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138955670
3M ID: 70006389848
5 Digit UPC: 95567
$35,771.77 ($4471.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Ideal for attaching silicone rubber elastomers and foam
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Shelf Life in Months (From Date of Manufacture)12.0
Carrier MaterialPolyester Film
Product ColorTransparent
Maximum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial)3.0
Overall Thickness (Imperial)5.5
Overall Width (Imperial)6.0
Overall Thickness (Imperial) UOMmil
Carrier Thickness0.09513889
Carrier Thickness (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper (PCK)
Back Side Adhesive Thickness (Imperial)2.9
Overall Length (Imperial) UOMyd
Carrier Thickness (Metric)0.03
Maximum Operating Temperature (Celsius)121.0
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Metric) UOMmm
Overall Width (Metric)152.4
Master Size Length (Metric)98.8
Secondary Liner Thickness (Imperial)2.9
Back Side Adhesive Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Shelf Life in Months (From Date of Manufacture) UOMMonths
Face Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.5
Backing (Carrier) MaterialPolyester Film
Indoor/OutdoorBoth
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case1.0
Face Side Adhesive Thickness (Metric)0.041
Master Size Width (Metric)122.0
Secondary Liner Thickness (Metric)0.07
Overall Width (Metric) UOMmm
Back Side Adhesive TypeSilicone
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Minimum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial) UOMin
Core Size (Metric) UOMmm
Tape TypeDouble Coated
Product FormRoll
Face Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.14
Backing (Carrier) Thickness (Metric)0.025
Overall Length (Imperial)180.0
Total Tape Thickness without Liner (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Master Size Length (Metric) UOMm
Secondary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.2
Backing (Carrier) Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.0
Carrier Thickness UOMmil
Maximum Operating Temperature (Fahrenheit)250.0
Core Size (Metric)76.2
Face Side Adhesive Thickness (Imperial)1.6
Primary Liner Thickness (Metric)0.17
Master Size Width (Metric) UOMcm
Assembly TypeGasket Attachment
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric)164.59
Minimum Operating Temperature (Fahrenheit)-40.0
Adhesive TypeAcrylic/Silicone
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Primary Liner ColorTan
