3M Products & Supplies

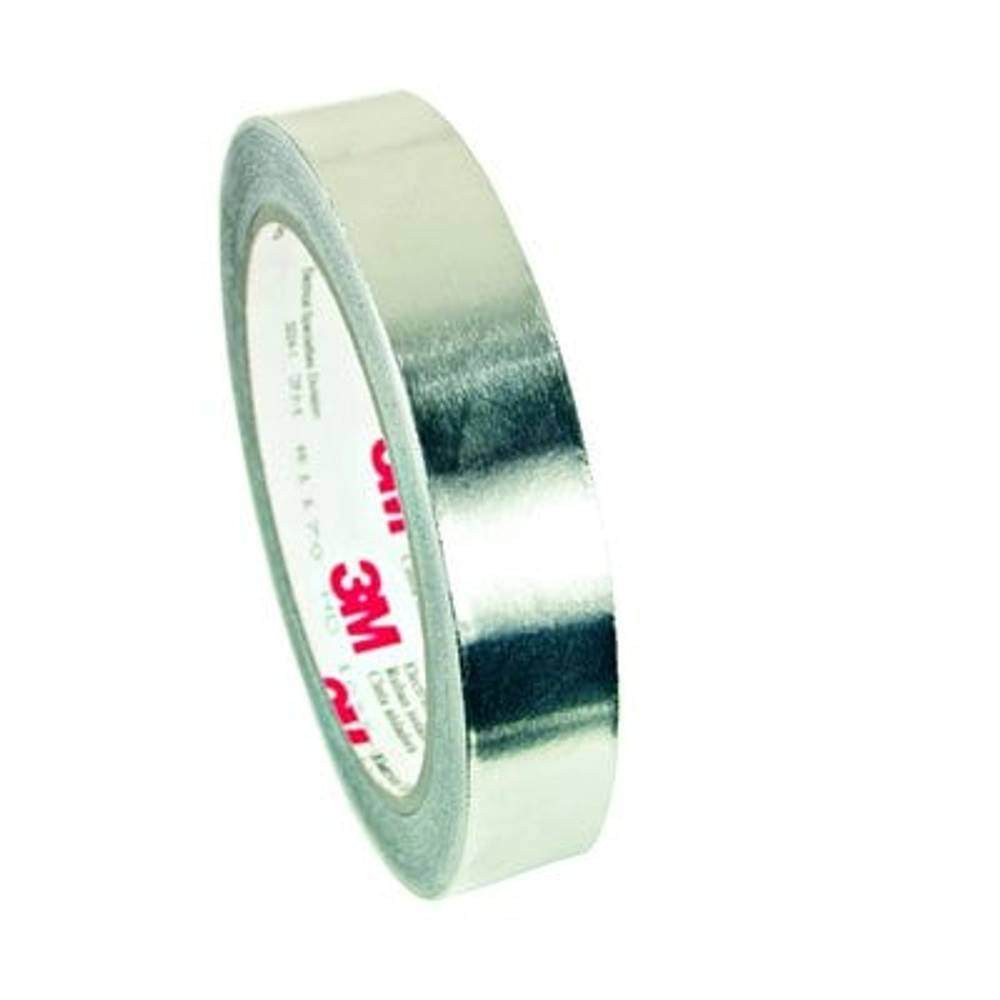

3M™ Embossed Aluminum Foil EMI Shielding Tape 1267, 1/2 in x 18 yd, 3 in Paper Core, 18 Rolls/Case - 7010398765

Sold As: 18-Pack
SKU: 7010398765
MPN: 7010398765
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138495671
3M ID: 80610881460
5 Digit UPC: 49567
$748.84 ($41.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Aluminum EMI Shielding Tape 1267 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Rated for 600V applications
  • Flame-retardant
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Offers outstanding contact through the adhesive with an embossed pattern
  • Removable liner for easy die-cutting and handling
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Product ColorSilver
Maximum Operating Temperature (Celsius)130.0
Overall Length (Imperial) UOMyd
Primary LinerPaper
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Elongation at Break100
Tensile Strength (Metric)35.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Tensile Strength (Imperial) UOMlb/in
IndustriesElectronics
Adhesive TypeAcrylic
Overall Width (Imperial)0.5
Total Tape Thickness without Liner (Imperial)5.0
ApplicationShielding
Tensile Strength (Metric) UOMN/10mm
Overall Length (Imperial)18.0
Shelf Life UOMYear
Overall Width (Metric)12.7
Product MarketsElectrical Equipment Manufacturing
Overall Length (Metric) UOMm
Overall Length (Metric)16.5
Total Tape Thickness without Liner (Imperial) UOMmil
Shielding Effectiveness80.0
Backing MaterialAluminum; Aluminum Foil; Embossed Aluminum Foil
Tensile Strength (Imperial)20.0
