3M Products & Supplies

3M™ Embossed Aluminum Foil EMI Shielding Tape 1267, 23 in x 18 yd, 3 in Paper Core, Untrimmed Potted Log Roll, 1 Roll/Case - 7000132143

SKU: 7000132143
MPN: 7000132143
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50054007081987
3M ID: 80008005870
5 Digit UPC: 8198
$1,411.71 each
Hurry up! Current stock:

Product Description

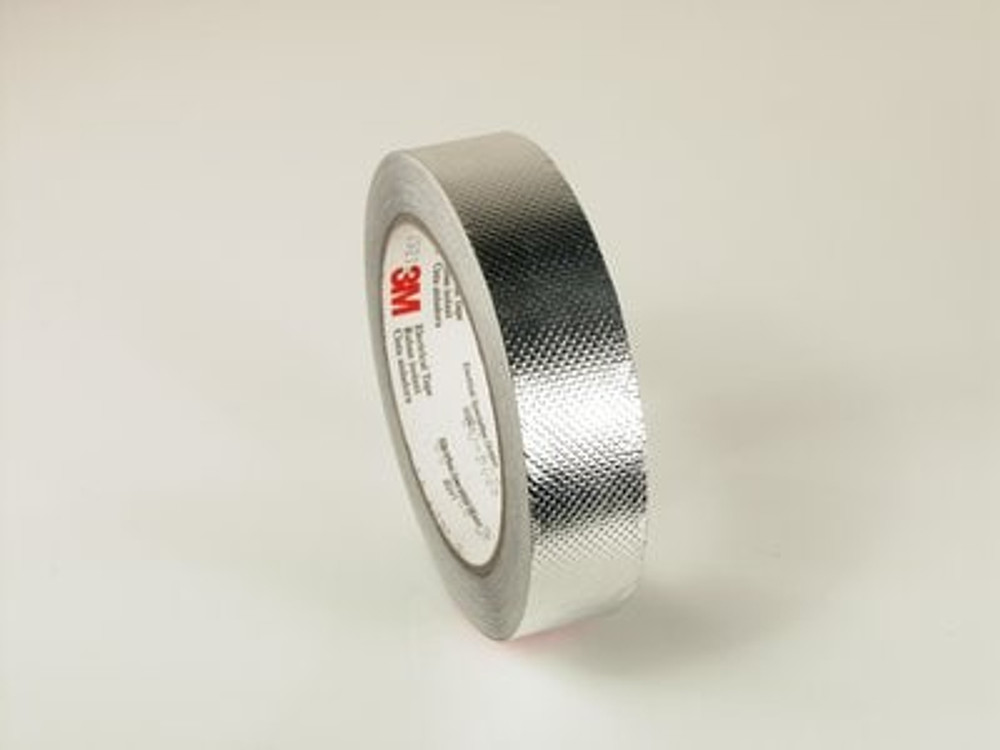

3M™ Embossed Aluminum EMI Shielding Tape 1267 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Flame-retardant
  • Rated for 600V applications
  • Removable liner for easy die-cutting and handling
  • UL Listed and RoHS 2011/65/EU Compliant
  • Offers outstanding contact through the adhesive with an embossed pattern

Specifications

Shelf Life1825
Country of OriginTaiwan
Primary LinerPaper
Overall Width (Metric) UOMmm
Shielding Effectiveness80.0
Overall Width (Imperial) UOMin
Specifications MetRoHS 2011/65/EU, UL Recognized
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius)130.0
Total Tape Thickness without Liner (Imperial)5.0
Tensile Strength (Imperial)20.0
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric)35.0
ApplicationShielding
Overall Width (Metric)584.2
Overall Width (Imperial)23.0
Backing MaterialAluminum; Aluminum Foil; Embossed Aluminum Foil
IndustriesElectronics
Elongation at Break100
Product MarketsElectrical Equipment Manufacturing
Shelf Life UOMYear
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/10mm
Total Tape Thickness without Liner (Imperial) UOMmil
