3M Products & Supplies

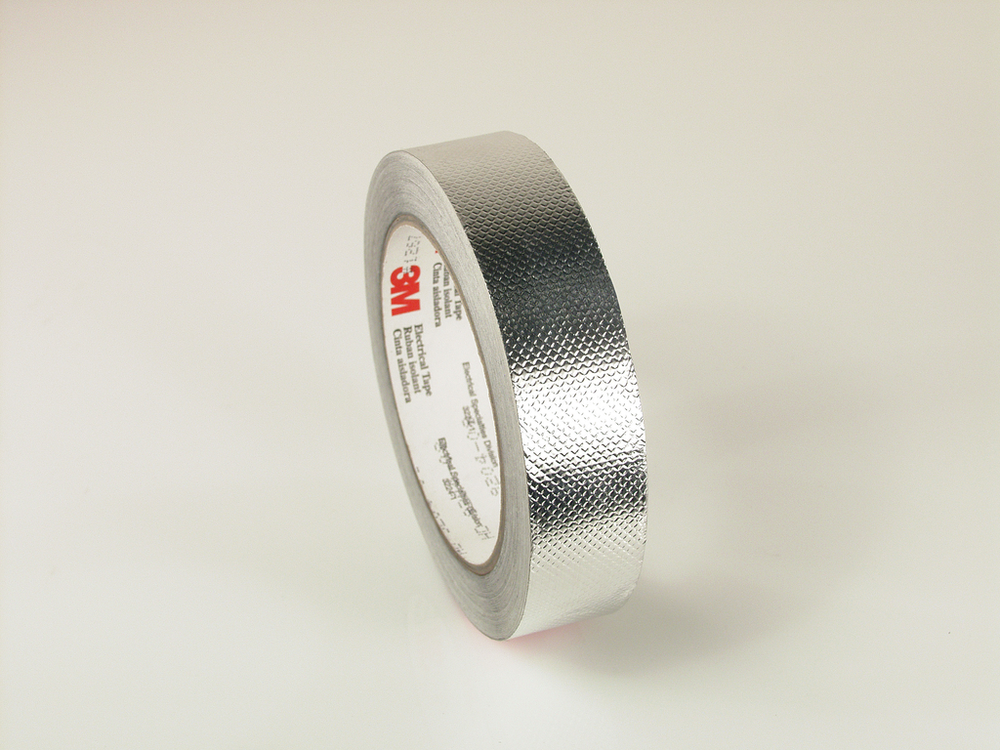

3M™ Embossed Aluminum Foil EMI Shielding Tape 1267, 2 in x 18 yd, 3 in Paper Core, 6 Rolls/Case - 7100018396

SKU: 7100018396
MPN: 7100018396
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50051138501247
3M ID: 80610886998
5 Digit UPC: 50124
$1,098.24 each
Hurry up! Current stock:

Product Description

3M™ Embossed Aluminum EMI Shielding Tape 1267 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Removable liner for easy die-cutting and handling
  • UL Listed and RoHS 2011/65/EU Compliant
  • Offers outstanding contact through the adhesive with an embossed pattern
  • Flame-retardant
  • Rated for 600V applications
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate

Specifications

Shelf Life1825
Country of OriginTaiwan
Adhesive TypeAcrylic
Elongation at Break100
Overall Length (Metric)16.5
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Imperial)50.0
Overall Width (Metric)50.8
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial)2.0
ApplicationShielding
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)5.0
IndustriesElectronics
Tensile Strength (Metric)35.0
Primary LinerPaper
Overall Width (Imperial) UOMin
Backing MaterialAluminum; Aluminum Foil; Embossed Aluminum Foil
Tensile Strength (Metric) UOMN/10mm
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Tensile Strength (Imperial)20.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Shielding Effectiveness80.0
Maximum Operating Temperature (Celsius)130.0
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial) UOMmil
