3M Products & Supplies

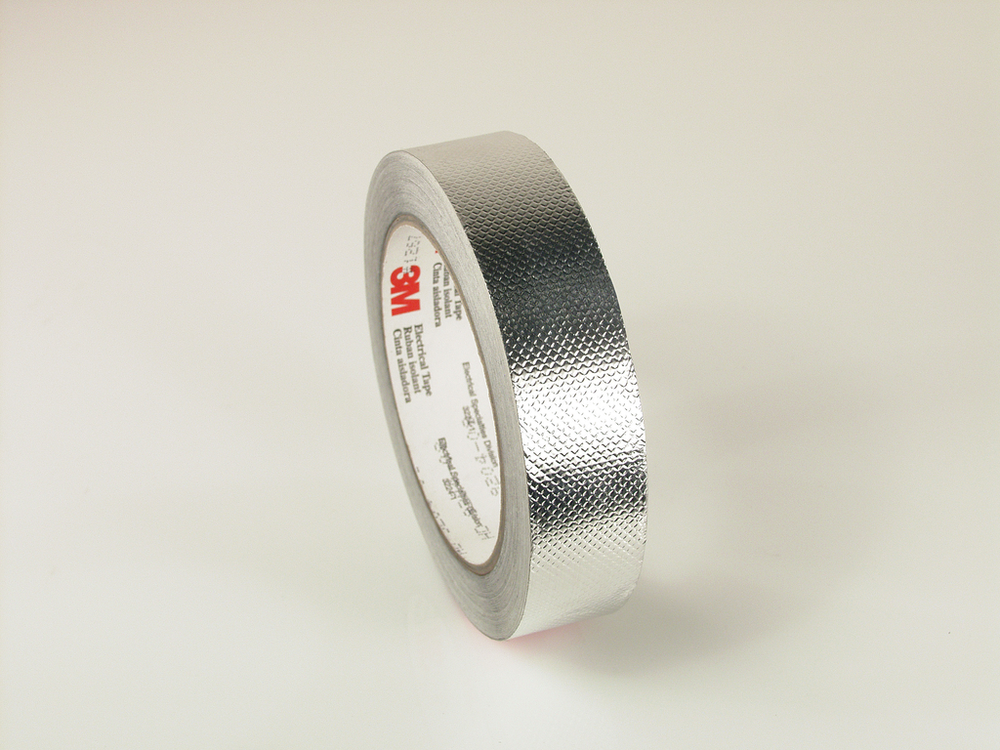

3M™ Embossed Aluminum Foil EMI Shielding Tape 1267, 3/4 in x 18 yd, 3 in Paper Core, 12 Rolls/Case - 7000132707

Sold As: 12-Pack
SKU: 7000132707
MPN: 7000132707
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138498443
3M ID: 80610884217
5 Digit UPC: 49844
$748.61 ($62.38 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Aluminum EMI Shielding Tape 1267 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Rated for 600V applications
  • Offers outstanding contact through the adhesive with an embossed pattern
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • UL Listed and RoHS 2011/65/EU Compliant
  • Flame-retardant
  • Removable liner for easy die-cutting and handling
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Tensile Strength (Imperial)20.0
Overall Length (Metric)16.5
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Product ColorSilver
Elongation at Break100
Overall Width (Metric)19.05
Overall Width (Metric) UOMmm
Backing MaterialAluminum; Aluminum Foil; Embossed Aluminum Foil
Overall Length (Imperial)18.0
Tensile Strength (Metric) UOMN/10mm
Shelf Life UOMYear
Maximum Operating Temperature (Celsius)130.0
Primary LinerPaper
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Specifications MetRoHS 2011/65/EU, UL Recognized
ApplicationShielding
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)0.75
Adhesive TypeAcrylic
IndustriesElectronics
Total Tape Thickness without Liner (Imperial)5.0
Tensile Strength (Metric)35.0
Overall Length (Imperial) UOMyd
Shielding Effectiveness80.0
