3M Products & Supplies

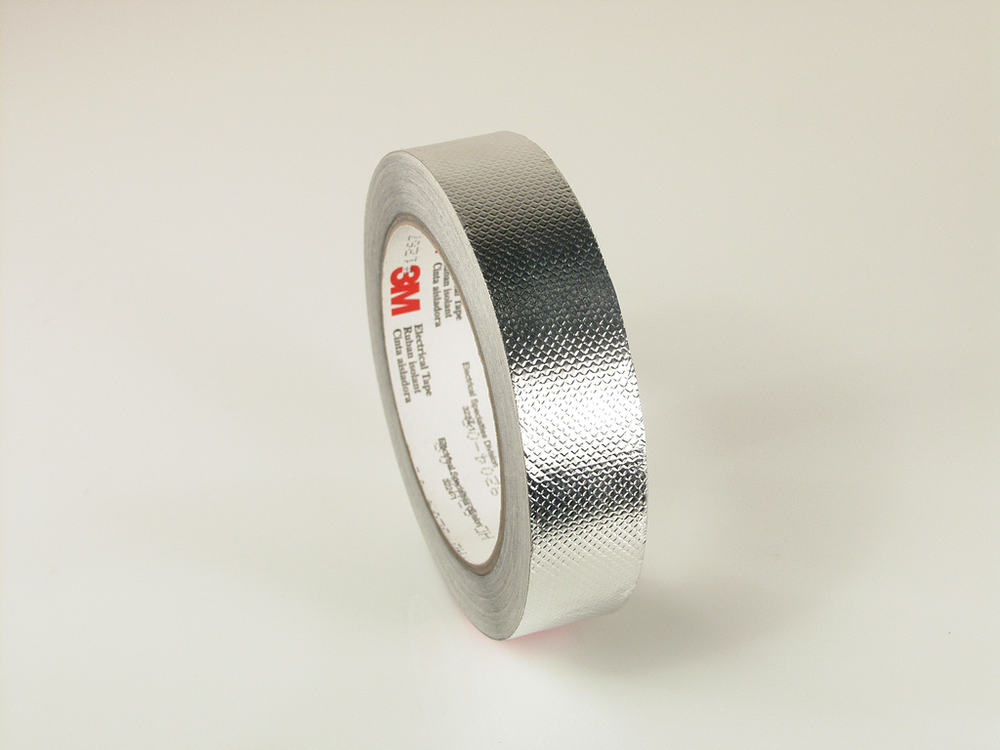

3M™ Embossed Aluminum Foil EMI Shielding Tape 1267, 1 in x 18 yd, 3 in Paper Core, 9 Rolls/Case - 7010398759

Sold As: 9-Pack
SKU: 7010398759
MPN: 7010398759
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138492977
3M ID: 80610878888
5 Digit UPC: 49297
$717.42 ($79.71 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Aluminum EMI Shielding Tape 1267 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Removable liner for easy die-cutting and handling
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Rated for 600V applications
  • Offers outstanding contact through the adhesive with an embossed pattern
  • Flame-retardant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric) UOMN/10mm
Overall Width (Metric)25.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Backing MaterialAluminum; Aluminum Foil; Embossed Aluminum Foil
Primary LinerPaper
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Length (Metric)16.5
IndustriesElectronics
Adhesive TypeAcrylic
Tensile Strength (Metric)35.0
Elongation at Break100
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Maximum Operating Temperature (Celsius)130.0
Product MarketsElectrical Equipment Manufacturing
Overall Length (Imperial)18.0
Overall Width (Imperial)1.0
Shielding Effectiveness80.0
Total Tape Thickness without Liner (Imperial)5.0
ApplicationShielding
Tensile Strength (Imperial)20.0
