3M Products & Supplies

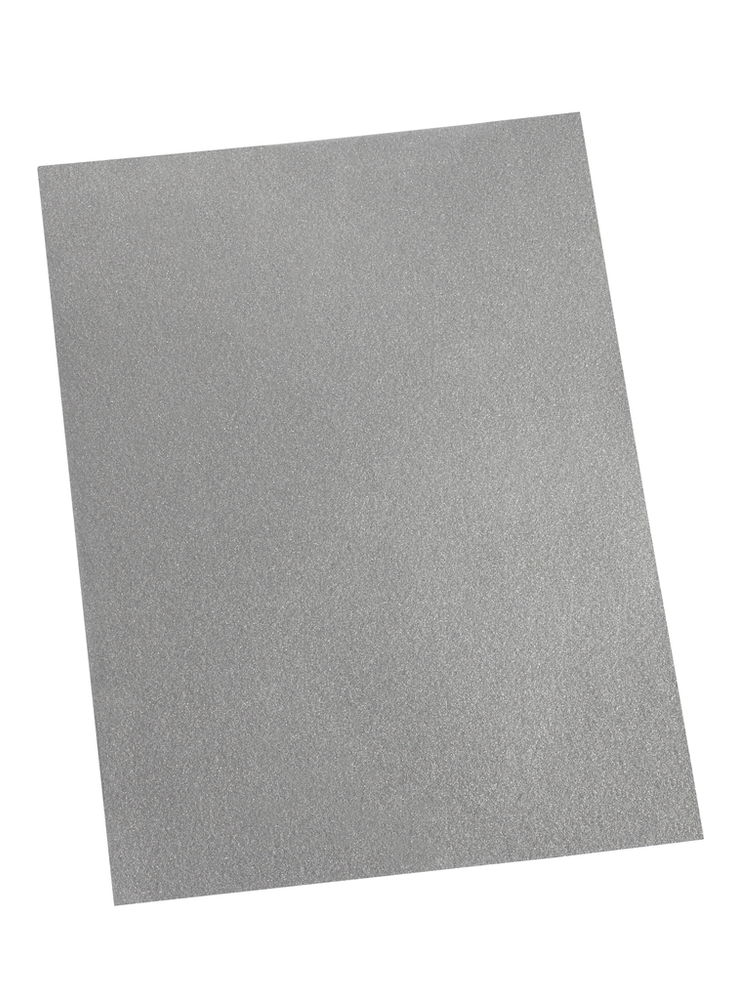

3M™ EMI Absorber AB7020HF, 210 mm x 297 mmx 0.25 mm - 7100001702

Sold As: 50-Pack
SKU: 7100001702
MPN: 7100001702
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051141415659
3M ID: WX300944161
5 Digit UPC: 41565
$3,044.06 ($60.88 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Polymer resin sheets are flexible for consistent coverage
  • Removable liner makes material easy to handle
  • Broad operating frequency of 300 MHz to 4 GHz
  • Target absorbing performance from 800 MHz - 2.5 GHz
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Length (Imperial) UOMin
Overall Thickness (Imperial) UOMmil
Adhesive Thickness (Imperial)1.969
Overall Width (Metric) UOMmm
Overall Thickness (Imperial)9.843
Overall Width (Imperial) UOMin
Overall Width (Metric)210.0
AdhesivePressure-sensitive Acrylic
Number of Adhesive Sides1
Frequency Range300 MHz - 2 GHz
Adhesive Thickness (Metric)0.05
Overall Length (Imperial)11.693
Overall Thickness (Metric)0.25
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards
Overall Thickness (Metric) UOMmm
Overall Length (Metric)297.0
Total Tape Thickness without Liner (Imperial)0.0
Total Thickness (Metric)0.25
Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMmm
Overall Width (Imperial)8.268
Magnetic Permeability110
Total Thickness0.25 mm
