3M Products & Supplies

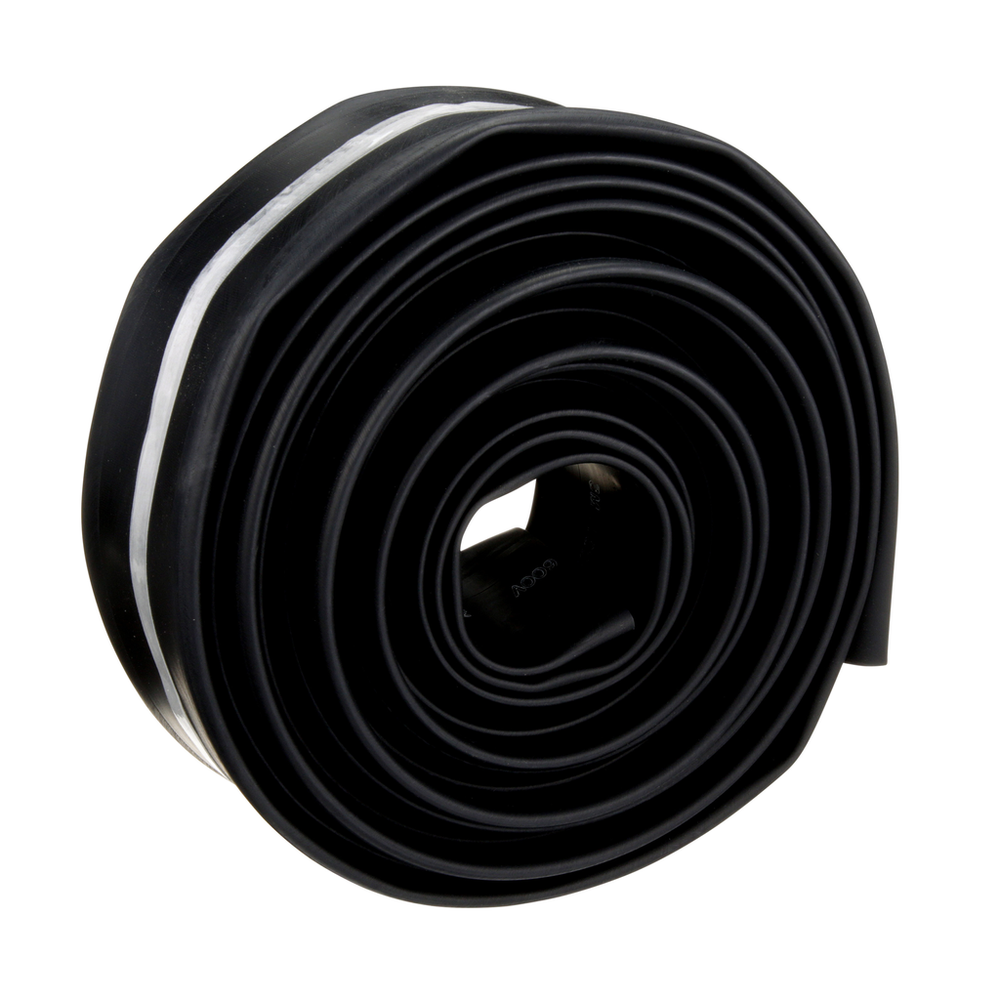

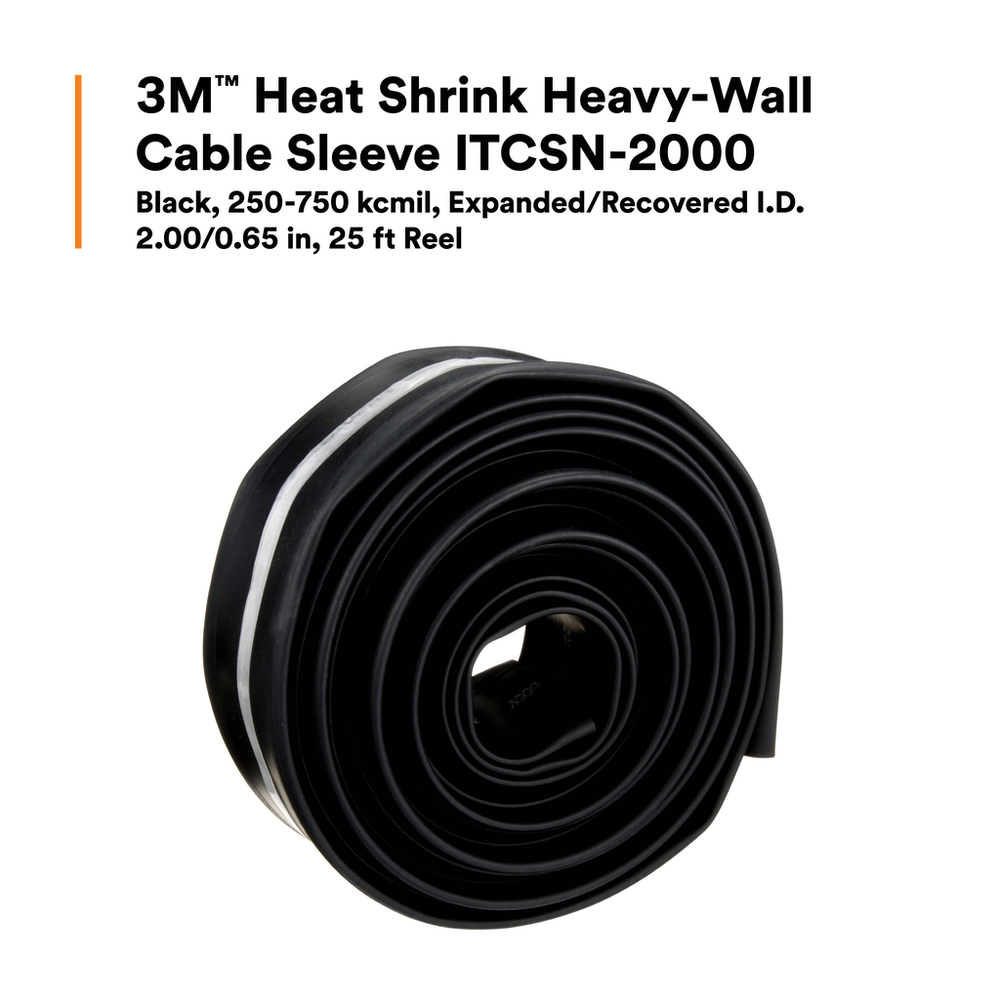

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil, Exp./Rec. I.D. 2.00/0.65 in, 25 ft Length Reel, 1/Case - 7000132374

SKU: 7000132374
MPN: 7000132374
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088981
3M ID: 80610229579
5 Digit UPC: 8898
$489.89 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Direct BuryNo
Overall Length (Imperial) UOMft
Minimum Expanded Tubing I. D. UOMin
Shrink Ratio3:1
Maximum Conductor Size (Imperial)750 kcmil
Maximum Operating Temperature (Celsius)100.0
Tubing TypeHeavy Wall
Adhesive LinedNo
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial)0.65
UL File NumberE-102356
MaterialPolyolefin
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantNo
Inner Diameter After Shrink (Imperial) UOMin
Maximum Conductor Size (Metric)400 mm²
Overall Length (Metric)7.62
Inner Diameter After Shrink (Metric) UOMcm²
Inner Diameter Before Shrink (Imperial) UOMin
Product FormSleeve-roll
Inner Diameter After Shrink (Metric)1.651
Inner Diameter Before Shrink (Imperial)2.0
Minimum Conductor Size (Metric)120 mm²
Units per Case1.0
Inner Diameter Before Shrink (Metric) UOMcm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)25.0
Minimum Expanded Tubing I. D.2.0
Specifications MetUL 486D*
Non-CorrosiveYes
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric)5.08
Product TypeSplice
Mil SpecAMS-DTL-23053/15,Class 1
Product ColorBlack
Minimum Conductor Size (Imperial)250 kcmil
Splice TypeHeat Shrink
Elongation UOMdB
Dielectric Strength (V/mil)500 V/mil
Maximum Operating Temperature (Fahrenheit)230.0
