3M Products & Supplies

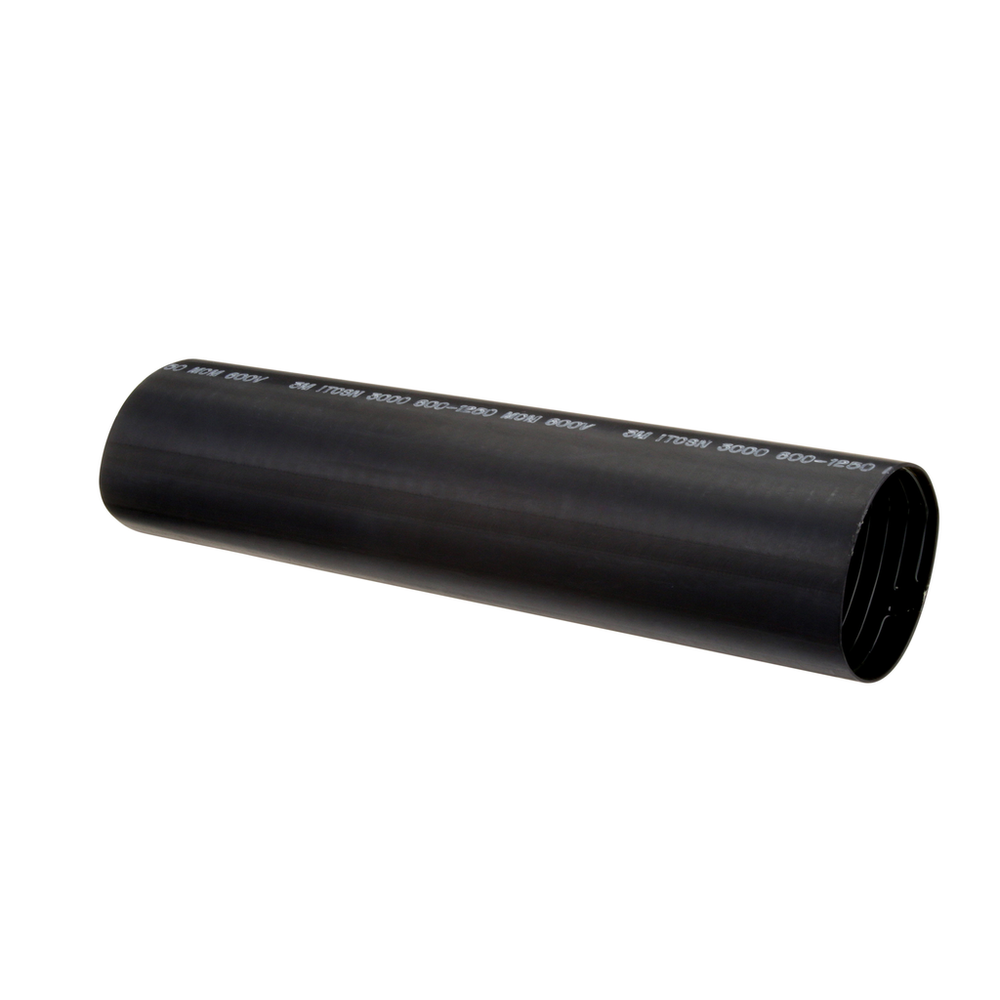

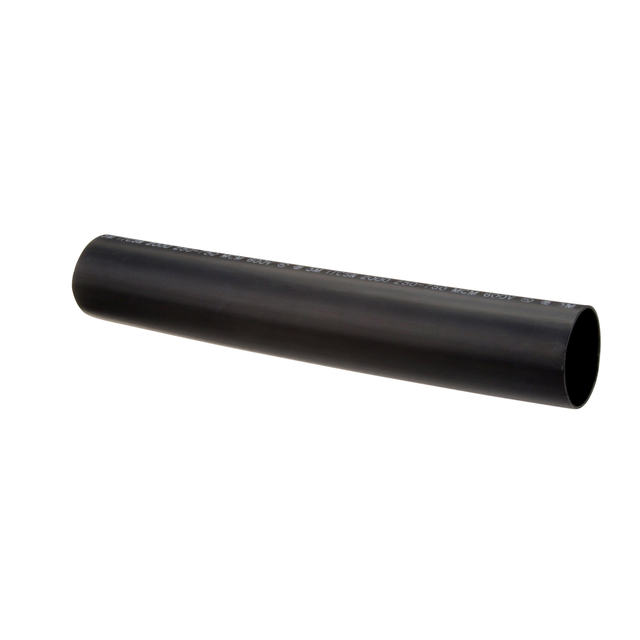

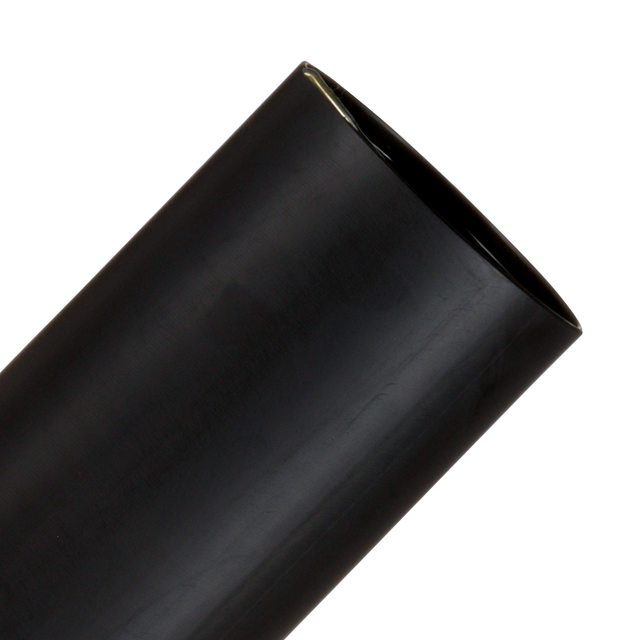

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-3000, 600-1250 kcmil, Expanded/Recovered I.D. 3.00/1.00 in, 12 in Length, 50/case - 7010348206

Sold As: 50-Pack
SKU: 7010348206
MPN: 7010348206
For an accurate lead time please contact us
UPC: 00054007089797
3M ID: 80008007330
5 Digit UPC: 8979
$1,568.73 ($31.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product TypeSplice
Inner Diameter After Shrink (Imperial)1.0
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Metric)2.54
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric) UOMcm²
Units per Case50.0
Maximum Operating Temperature (Celsius)110.0
Product ColorBlack
Tubing TypeHeavy Wall
MaterialPolyolefin
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
Adhesive LinedYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
Specifications MetUL 486D*
Inner Diameter Before Shrink (Metric)7.62
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric) UOMmm
Elongation UOM%
Flame RetardantNo
Inner Diameter After Shrink (Metric) UOMcm²
Splice TypeHeat Shrink
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Overall Length (Metric)304.8
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius) UomDegree
Shrink Ratio3:1
Inner Diameter Before Shrink (Imperial)3.0
Direct BuryNo
Overall Length (Imperial)12.0
