3M Products & Supplies

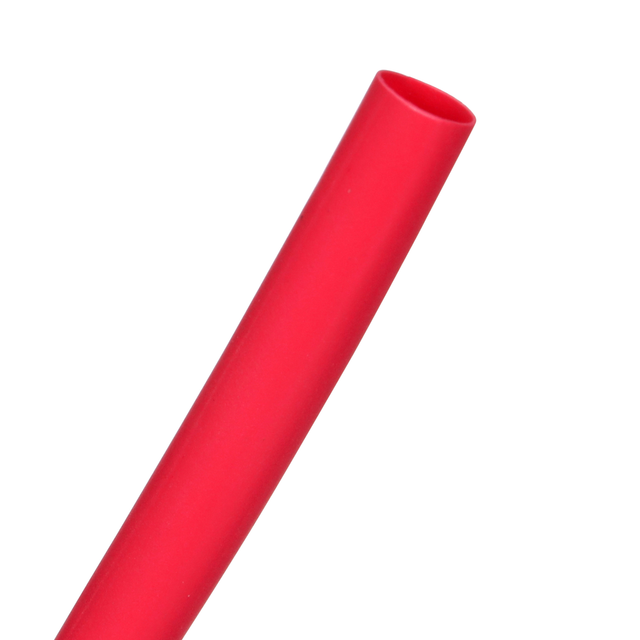

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-Red-200`: 200 ft spool length, 600 ft/case - 7100025161

Sold As: 600-Pack
SKU: 7100025161
MPN: 7100025161
Stock Item: Stock items typically ship within 2-3 business days
UPC: 30054007084991
3M ID: 80610219679
5 Digit UPC: 8499
$388.35 ($0.65 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantYes
Inner Diameter Before Shrink (Imperial)0.5
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial) UOMft
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Shrink Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial) UOMin
Product ColorRed
Maximum Operating Temperature (Fahrenheit)275.0
Elongation UOM%
Inner Diameter After Shrink (Metric)6.35
Minimum Expanded Tubing I. D. UOMin
Non-CorrosiveYes
Minimum Expanded Tubing I. D.1.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialNone
Inner Diameter Before Shrink (Metric) UOMmm
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Tubing TypeSingle Wall (Thin)
MaterialFlexible Polyolefin
UL File NumberE-39100
Inner Diameter Before Shrink (Metric)12.7
Maximum Operating Temperature (Celsius)135.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.25
Overall Length (Imperial)200.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
UL ApprovalYes
