3M Products & Supplies

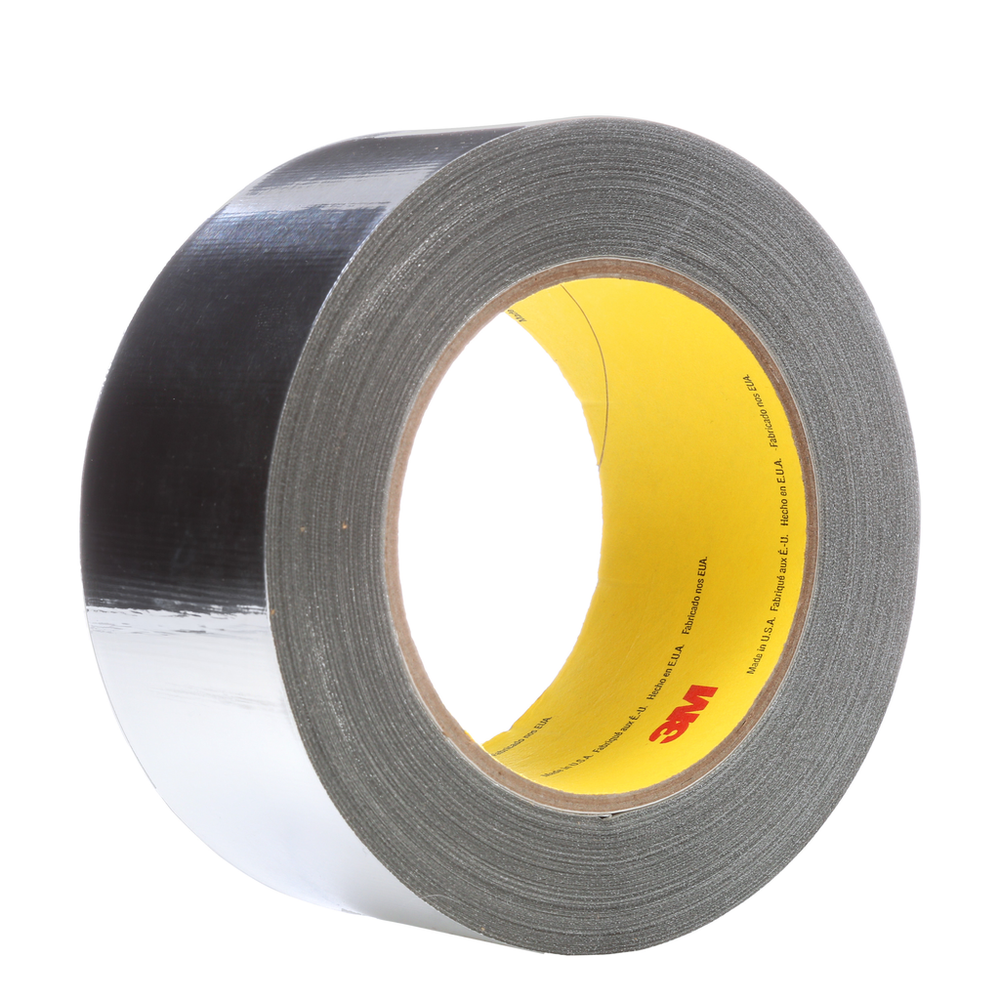

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 50 mm x 33 m, 7.3 mil, 4 Roll/Case - 7100035736

Sold As: 4-Pack
SKU: 7100035736
MPN: 7100035736
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115815652
3M ID: 70006763786
5 Digit UPC: 81565
$1,623.57 ($405.89 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.

Features

  • POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
  • HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
  • MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
  • ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
  • HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
  • VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)316.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)50.0
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Tensile Strength (Metric)2364.0
Overall Width (Imperial)1.97
Total Tape Thickness without Liner (Imperial)7.3
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Imperial)135.0
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.06
Elongation at Break7
Minimum Operating Temperature (Fahrenheit)-65.0
Maximum Operating Temperature (Fahrenheit)600.0
Product ColorSilver
Back Side Adhesive Thickness (Metric)0.09
Adhesive TypeSilicone
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMN/100mm
Overall Length (Metric)33.0
Overall Length (Metric) UOMm
ApplicationShielding Cables Against Heat; Shielding Wire Harnesses Against Heat
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Backing (Carrier) Thickness (Imperial)2.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.19
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-54.0
