3M Products & Supplies

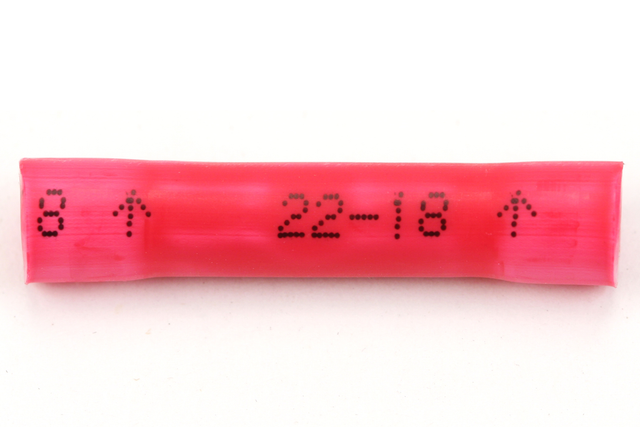

3M™ Highland™ BSV18Q Vinyl-Insulated Butted-Seam Standard Butt Connector, 22 to 18 AWG, Red, 25/Bag, 10 Bags/Case - 7000133656

Sold As: 10-Pack
SKU: 7000133656
MPN: 7000133656
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599983
3M ID: 80611602592
5 Digit UPC: 59998
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Color-Coded Butt Splice Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Built-in wire stop for correct positioning
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Accommodates wire sizes 22 to 18 AWG
  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Barrel Inside Diameter0.145 Inch
Insulation MaterialVinyl
UL File NumberE23438
Minimum Conductor Size (Imperial)22 AWG
Connector TypeButt
Barrel Length (Metric)6.35 mm
Maximum Operating Temperature (Celsius)105.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case10.0
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outside Diameter0.145 in
Operating Temperature Range (Celsius)-40 °C to 105 °C
InsulatedYes
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)1.0
Body MaterialCopper Alloy
Maximum Recommended Voltage Rating600.0
Overall Length (Metric) UOMmm
Units per bag25
Terminal StyleStandard
Maximum Conductor Size (Imperial)18 AWG
Packaging25 per bag
Maximum Insulation Outer Diameter (Metric) UOMmm
Conductor Sizes (Imperial)22 - 18 AWG
Max. Number of Cores411.0
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Voltage Rating600 to 1000 V
Terminal MaterialTin-Plated Electrolytic Copper
Terminal TypeButt Connectors
MaterialPlastic
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric).34 mm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Insulation ColorRed
Maximum Conductor Size (Metric)1 mm²
Barrel StyleButted Seam
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Metric)25.4
