3M Products & Supplies

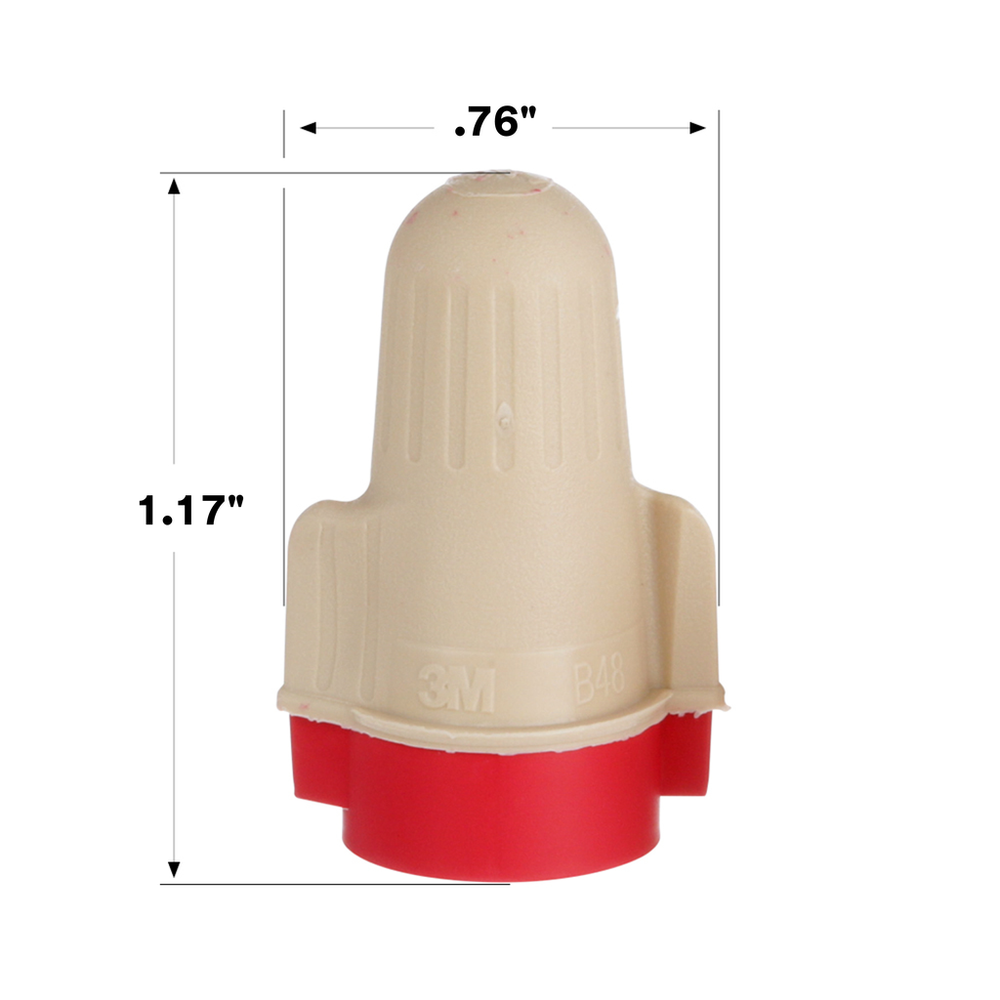

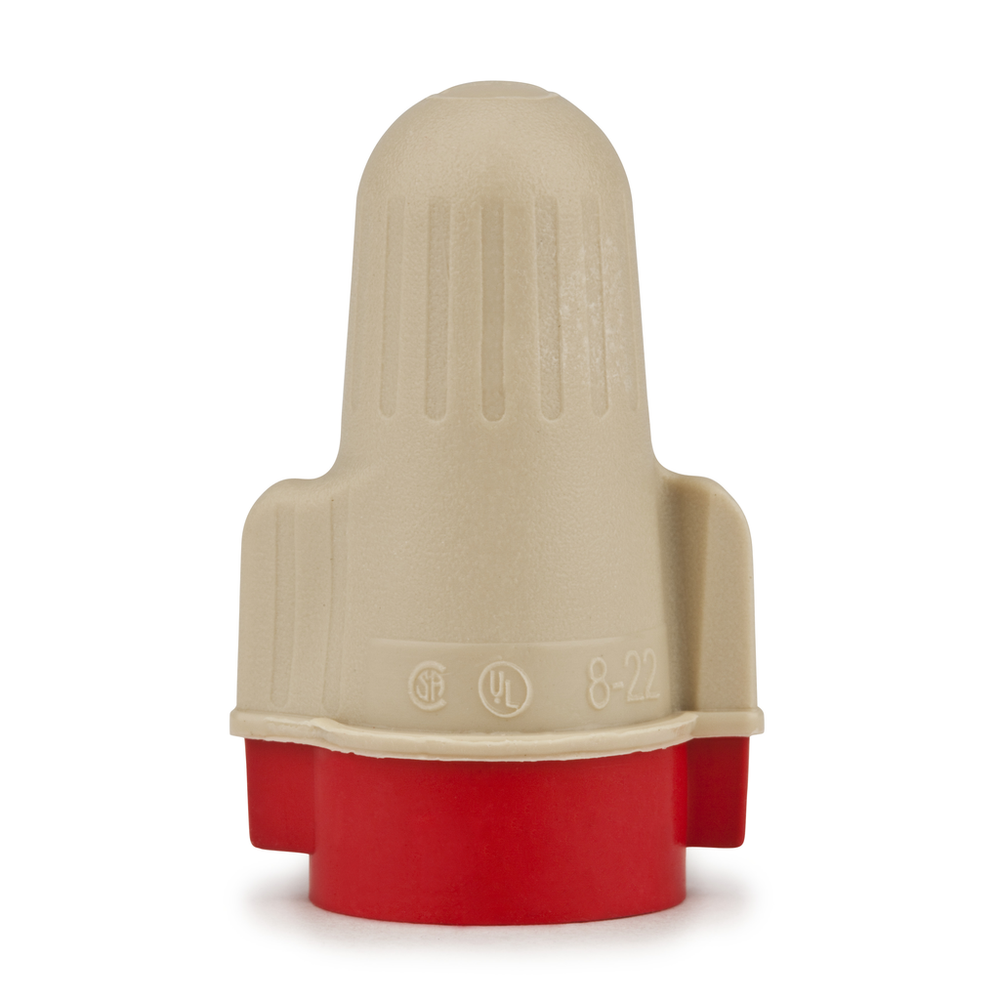

3M™ Performance Plus™ Wire Connector T/R+JUG, 750 per Jug, smooth, comfortable feel, 6000/Case - 7100019140

Sold As: 6000-Pack
SKU: 7100019140
MPN: 7100019140
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128544556
3M ID: 80611454523
5 Digit UPC: 54455
$984.57 ($0.16 / Count)
Hurry up! Current stock:

Product Description

3M™ Performance Plus™ Wire Connectors T/R+ are constructed to work with a wire range between 2 #18 to 5 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

  • Flexible spring expands for greater wire range and reuse
  • Strong bite for a secure, reliable connection
  • UL Listed
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Fahrenheit)0.0
Maximum Voltage Rating600 V (1000 V in signs, lighting fixtures and luminaries)
Maximum Conductor Size (Imperial)8 AWG
PackagingJug
Product TypeConnector
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Specifications MetCSA, UL Listed
Boxes per Case8.0
Connection TypeWire
Maximum Operating Temperature (Fahrenheit)221.0
Flame RetardantYes
Connector StyleTwist On
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorRed
Minimum Conductor Size (Metric).34 mm²
Maximum Conductor Size (Metric)10
