3M Products & Supplies

3M™ Safety Stripe Vinyl Tape 5700, Black/White, 3 in x 36 yd, 5.4 mil, 12 Roll/Case - 7000123282

Sold As: 12-Pack
SKU: 7000123282
MPN: 7000123282
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200039546
3M ID: 70006008398
5 Digit UPC: 3954
$1,167.34 ($97.28 / Count)
Hurry up! Current stock:

Product Description

Developed to provide highly visible safety indication for driving and walking lanes, hazardous areas, protruding equipment and low hanging objects, durable 3M™ Safety Stripe Tape 5700 is an ideal choice for your applications. The color is embedded into the vinyl backing to resist abrasion, scuffing and moisture which might affect visibility. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive has quick stick and excellent holding strength on most surfaces. This combination of the backing and adhesive properties help to prevent edge lifting, keeping the tape in place. The tape removes cleanly in one piece from most surfaces to help reduce clean-up and labor costs.

Features

  • WEAR-RESISTANT STRIPES: The stripped pattern is printed below the surface to prevent it from rubbing off through normal wear
  • LONG SERVICE LIFE: Mark and protect surfaces longer thanks to construction that resists harsh solvents
  • COMES OFF CLEAN: Engineered for tidy, one-piece removal to minimize cleanup and labor
  • ATTENTION GRABBING: Wide black and white stripes help designate safety and/or hazard zones

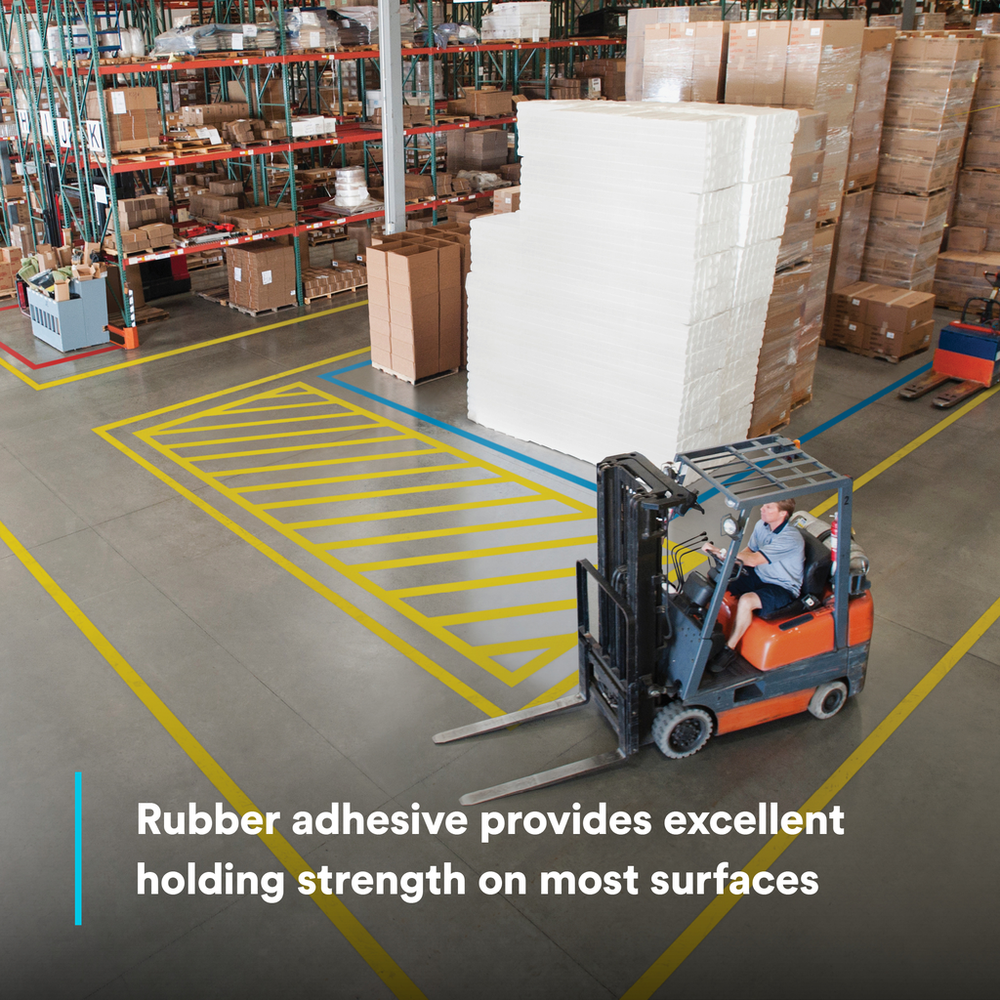

  • POWERFUL ADHESIVE: Rubber adhesive provides excellent holding strength on most surfaces

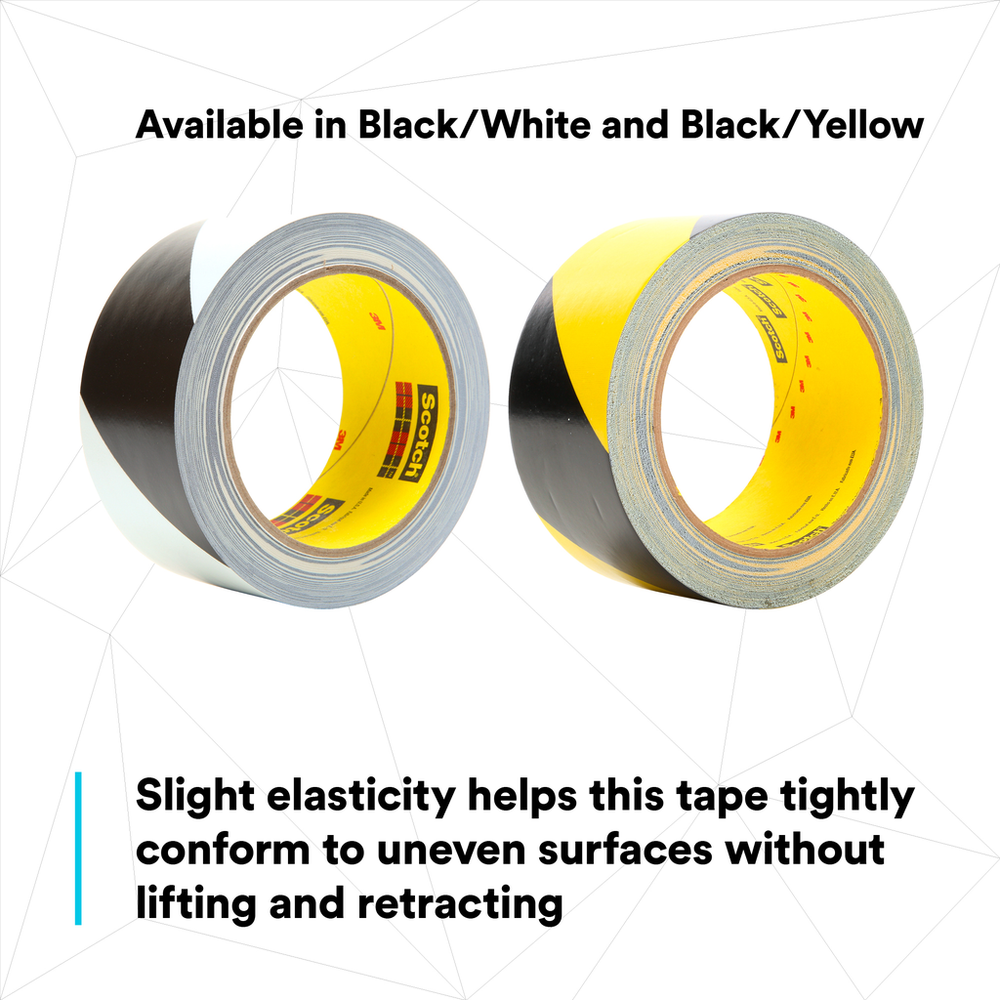

  • UNIQUE STRETCHABILITY: Slight elasticity helps this tape tightly conform to uneven surfaces without lifting and retracting
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)32.91
Backing (Carrier) MaterialVinyl
Total Tape Thickness without Liner (Metric)0.14
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)4.2
Performance LevelHigh Performance
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)77.0
Tensile Strength (Imperial) UOMlb/in
Back Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeRubber
Overall Width (Metric) UOMcm
Elongation at Break170
Units per Case12.0
Maximum Operating Temperature (Fahrenheit)140.0
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.11
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)5.4
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationSafety & Hazard Marking
Back Side Adhesive Thickness (Metric)0.11
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Imperial)1.2
Tensile Strength (Imperial)15.0
Minimum Operating Temperature (Celsius)4.0
LegendCaution
Tensile Strength (Metric)260.0
Shelf Life UOMMonth
Tensile Strength (Metric) UOMN/100mm
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Overall Width (Imperial) UOMin
Product ColorBlack
Overall Width (Imperial)3.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)40.0
Specifications MetD-3330, D-3652, D-3759
Overall Width (Metric)7.6
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
