3M™ Safety Stripe Vinyl Tape 5702, Black/Yellow, 3 in x 36 yd, 5.4 mil, 12 Roll/Case - 7000048386

Sold As: 12-Pack
SKU: 7000048386
MPN: 7000048386
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200039515
3M ID: 70006008356
5 Digit UPC: 3951
$1,168.01 ($97.33 / Count)
Hurry up! Current stock:

Product Description

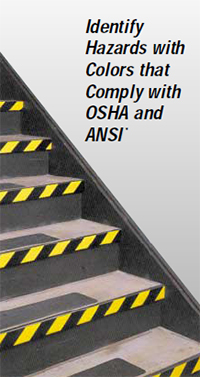

Developed to provide highly visible safety indication for driving and walking lanes, hazardous areas, protruding equipment and low hanging objects, durable 3M™ Safety Stripe Tape 5702 is an ideal choice for your applications. The color is embedded into the vinyl backing to resist abrasion, scuffing and moisture which might affect visibility. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive has quick stick and excellent holding strength on most surfaces. This combination of the backing and adhesive properties help to prevent edge lifting, keeping the tape in place. The tape removes cleanly in one piece from most surfaces to help reduce clean-up and labor costs.

Features

  • ATTENTION GRABBING: Wide black and yelllow stripes help designate safety and/or hazard zones
  • UNIQUE STRETCHABILITY: Slight elasticity helps this tape tightly conform to uneven surfaces without lifting and retracting
  • POWERFUL ADHESIVE: Rubber adhesive provides excellent holding strength on most surfaces
  • LONG SERVICE LIFE: Mark and protect surfaces longer thanks to construction that resists harsh solvents
  • COMES OFF CLEAN: Engineered for tidy, one-piece removal to minimize cleanup and labor
  • WEAR-RESISTANT STRIPES: The stripped pattern is printed below the surface to prevent it from rubbing off through normal wear
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Specifications MetD-3330, D-3652, D-3759
LegendCaution
Total Tape Thickness without Liner (Metric)0.14
Elongation at Break170
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric) UOMm
Overall Width (Metric)7.6
ApplicationSafety & Hazard Marking
Back Side Adhesive Thickness (Imperial)1.2
Back Side Adhesive Thickness (Metric)0.11
Maximum Operating Temperature (Fahrenheit)140.0
Overall Length (Metric)32.91
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)4.2
Overall Length (Imperial) UOMyd
Product ColorBlack
Minimum Operating Temperature (Fahrenheit)40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.11
Units per Case12.0
Overall Width (Imperial) UOMin
Shelf Life UOMMonth
Overall Width (Imperial)3.0
Tensile Strength (Metric)260.0
Backing (Carrier) MaterialVinyl
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)4.0
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial)15.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMcm
Maximum Operating Temperature (Celsius)77.0
Backing (Carrier) Thickness (Imperial) UOMin
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Performance LevelHigh Performance
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeRubber
Total Tape Thickness without Liner (Imperial)5.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
