3M Products & Supplies

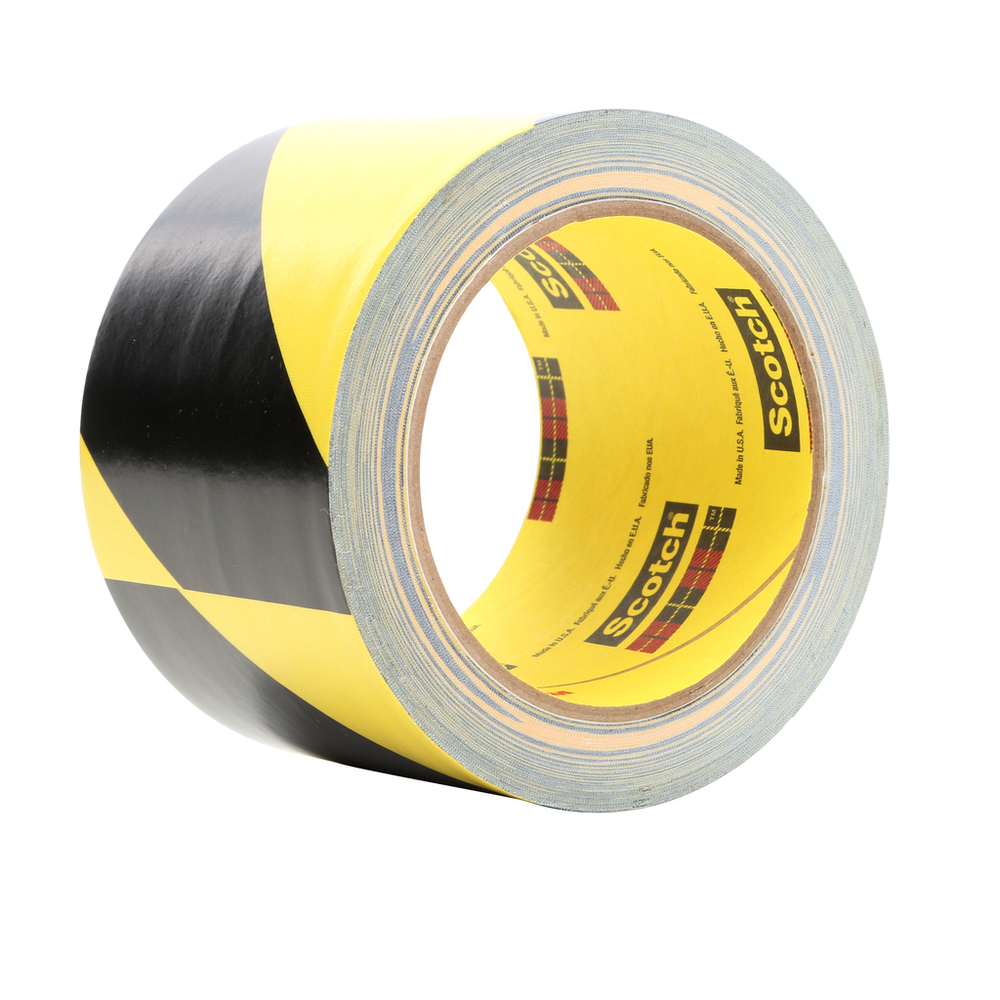

3M™ Safety Stripe Vinyl Tape 5702, Black/Yellow, 4 in x 36 yd, 5.4 mil, 8 Roll/Case - 7000048387

Sold As: 8-Pack
SKU: 7000048387
MPN: 7000048387
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200039522
3M ID: 70006008364
5 Digit UPC: 3952
$1,038.23 ($129.78 / Count)
Hurry up! Current stock:

Product Description

Developed to provide highly visible safety indication for driving and walking lanes, hazardous areas, protruding equipment and low hanging objects, durable 3M™ Safety Stripe Tape 5702 is an ideal choice for your applications. The color is embedded into the vinyl backing to resist abrasion, scuffing and moisture which might affect visibility. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive has quick stick and excellent holding strength on most surfaces. This combination of the backing and adhesive properties help to prevent edge lifting, keeping the tape in place. The tape removes cleanly in one piece from most surfaces to help reduce clean-up and labor costs.

Features

  • UNIQUE STRETCHABILITY: Slight elasticity helps this tape tightly conform to uneven surfaces without lifting and retracting
  • LONG SERVICE LIFE: Mark and protect surfaces longer thanks to construction that resists harsh solvents

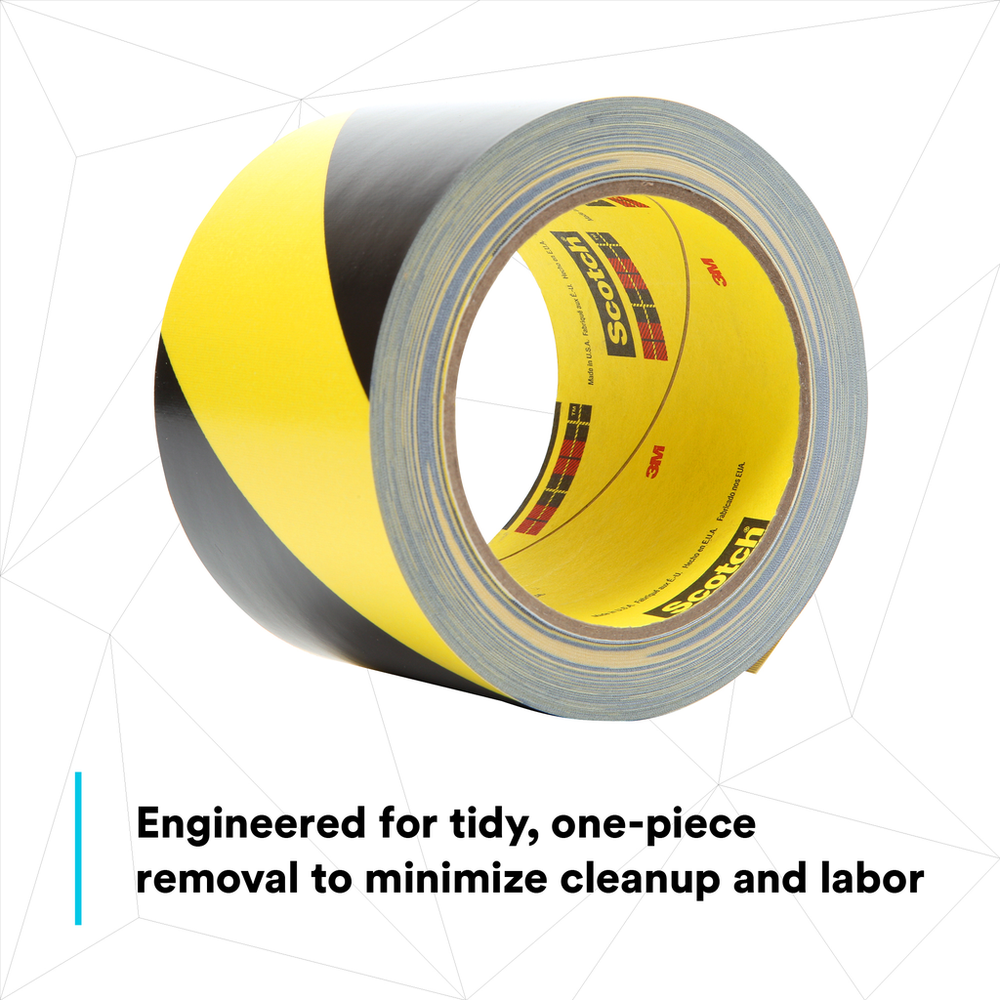

  • COMES OFF CLEAN: Engineered for tidy, one-piece removal to minimize cleanup and labor

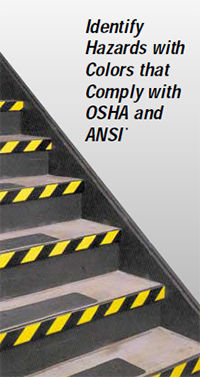

  • ATTENTION GRABBING: Wide black and yelllow stripes help designate safety and/or hazard zones
  • WEAR-RESISTANT STRIPES: The stripped pattern is printed below the surface to prevent it from rubbing off through normal wear

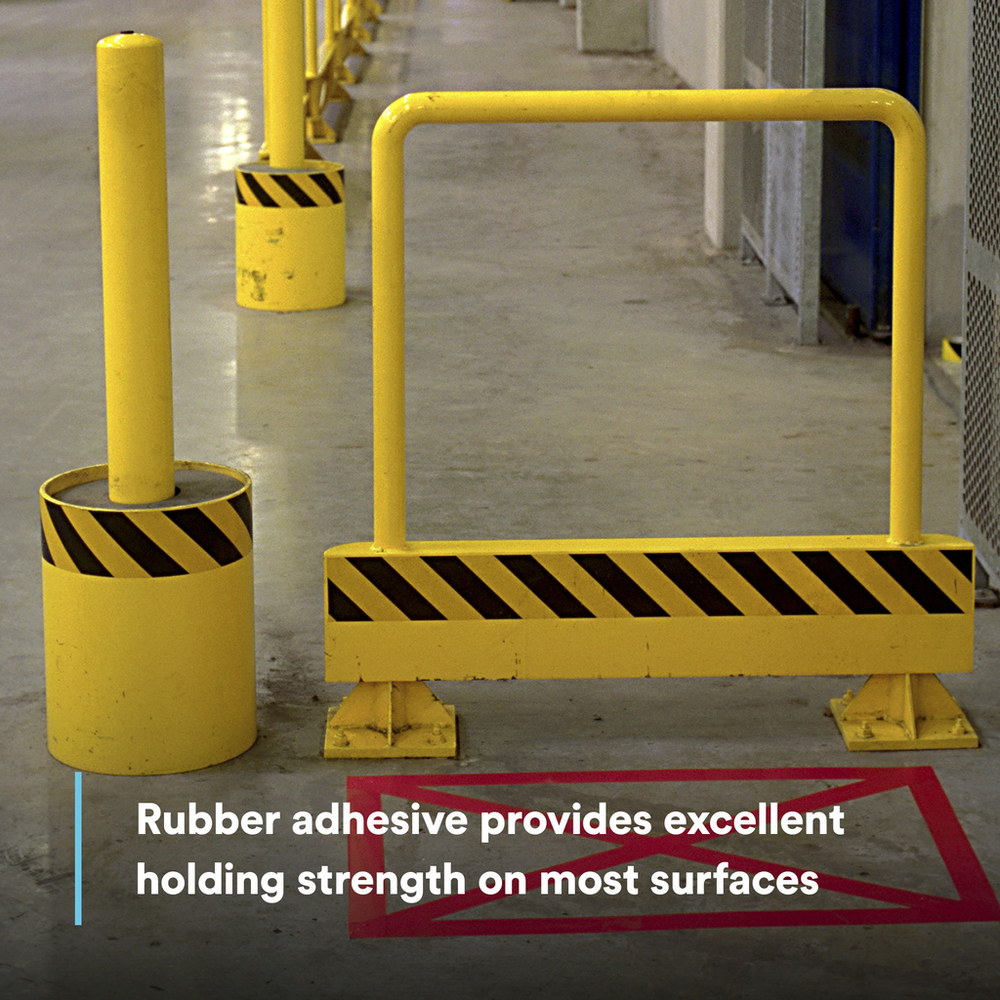

  • POWERFUL ADHESIVE: Rubber adhesive provides excellent holding strength on most surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)40.0
Product ColorBlack
Backing (Carrier) Thickness (Imperial)4.2
Units per Case8.0
Total Tape Thickness without Liner (Metric)0.14
Performance LevelHigh Performance
Elongation at Break170
Overall Length (Metric)32.91
Maximum Operating Temperature (Celsius)76.0
Total Tape Thickness without Liner (Imperial)5.4
Backing (Carrier) MaterialVinyl
LegendCaution
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.11
Tensile Strength (Metric) UOMN/100mm
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial)36.0
Tensile Strength (Imperial) UOMlb/in
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeRubber
Back Side Adhesive Thickness (Metric)0.11
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)4.0
Overall Width (Imperial) UOMin
Tensile Strength (Metric)260.0
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)170.0
ApplicationSafety & Hazard Marking
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)101.6
Tensile Strength (Imperial)15.0
