3M Products & Supplies

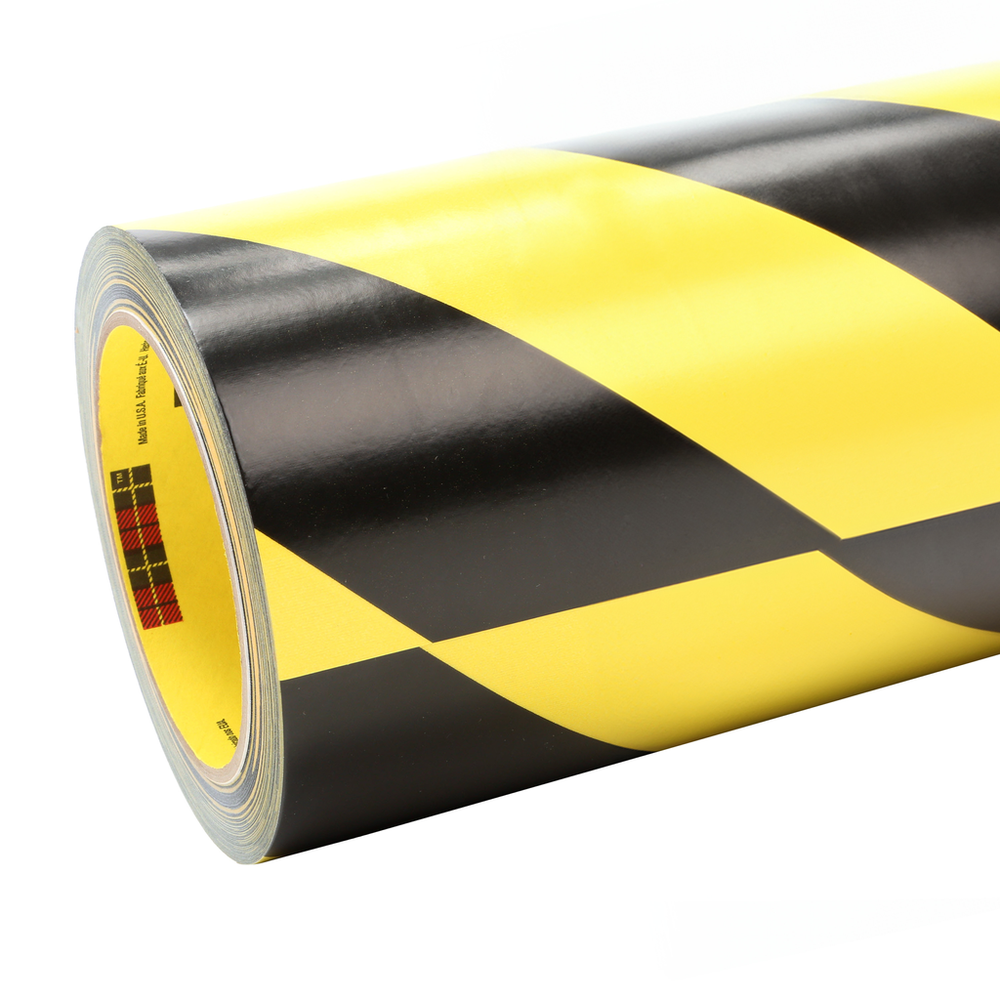

3M™ Safety Stripe Tape 5702, Black/Yellow, 48 in x 20 yd, 5.4 mil, 4 Roll/Case, Untrimmed - 7010334365

Sold As: 4-Pack
SKU: 7010334365
MPN: 7010334365
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115236693
3M ID: 70006414331
5 Digit UPC: 23669
$3,460.87 ($865.22 / Count)
Hurry up! Current stock:

Product Description

Developed to provide highly visible safety indication for driving and walking lanes, hazardous areas, protruding equipment and low hanging objects, durable 3M™ Safety Stripe Tape 5702 is an ideal choice for your applications. The color is embedded into the vinyl backing to resist abrasion, scuffing and moisture which might affect visibility. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive has quick stick and excellent holding strength on most surfaces. This combination of the backing and adhesive properties help to prevent edge lifting, keeping the tape in place. The tape removes cleanly in one piece from most surfaces to help reduce clean-up and labor costs.

Features

  • UNIQUE STRETCHABILITY: Slight elasticity helps this tape tightly conform to uneven surfaces without lifting and retracting
  • LONG SERVICE LIFE: Mark and protect surfaces longer thanks to construction that resists harsh solvents
  • ATTENTION GRABBING: Wide black and yelllow stripes help designate safety and/or hazard zones
  • COMES OFF CLEAN: Engineered for tidy, one-piece removal to minimize cleanup and labor

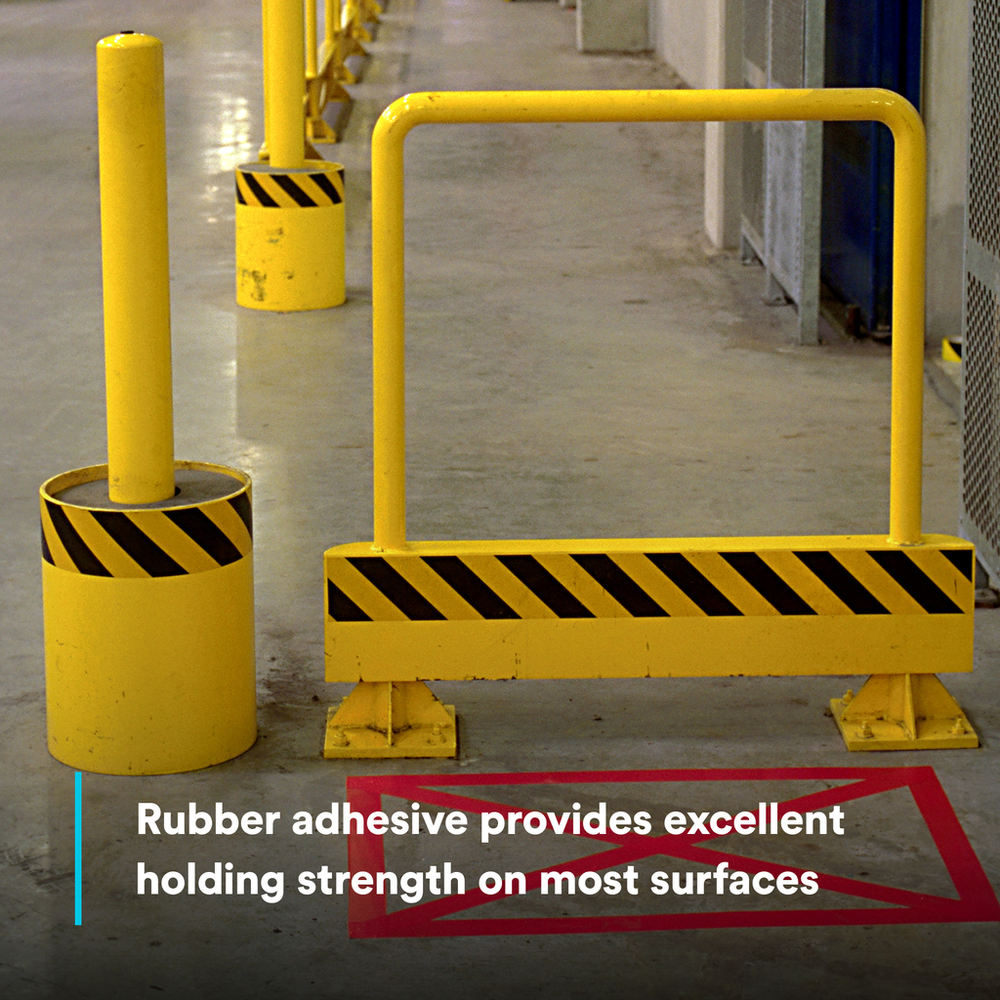

  • POWERFUL ADHESIVE: Rubber adhesive provides excellent holding strength on most surfaces
  • WEAR-RESISTANT STRIPES: The stripped pattern is printed below the surface to prevent it from rubbing off through normal wear
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Adhesive TypeRubber
Back Side Adhesive Thickness (Metric)0.11
Total Tape Thickness without Liner (Imperial)5.4
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life UOMMonth
Tensile Strength (Imperial) UOMlb/in
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)40.0
Overall Length (Imperial)20.0
Tensile Strength (Imperial)15.0
Backing (Carrier) Thickness (Metric)0.11
Overall Width (Metric) UOMmm
Product ColorBlack
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)76.0
LegendCaution
Total Tape Thickness without Liner (Metric)0.14
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)1219.2
Overall Width (Imperial)48.0
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case4.0
Elongation at Break170
Backing (Carrier) Thickness (Imperial)4.2
Backing (Carrier) MaterialVinyl
Maximum Operating Temperature (Fahrenheit)170.0
Tensile Strength (Metric)260.0
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMin
Performance LevelHigh Performance
Overall Length (Metric)18.28
Overall Length (Imperial) UOMyd
ApplicationSafety & Hazard Marking
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
