3M Products & Supplies

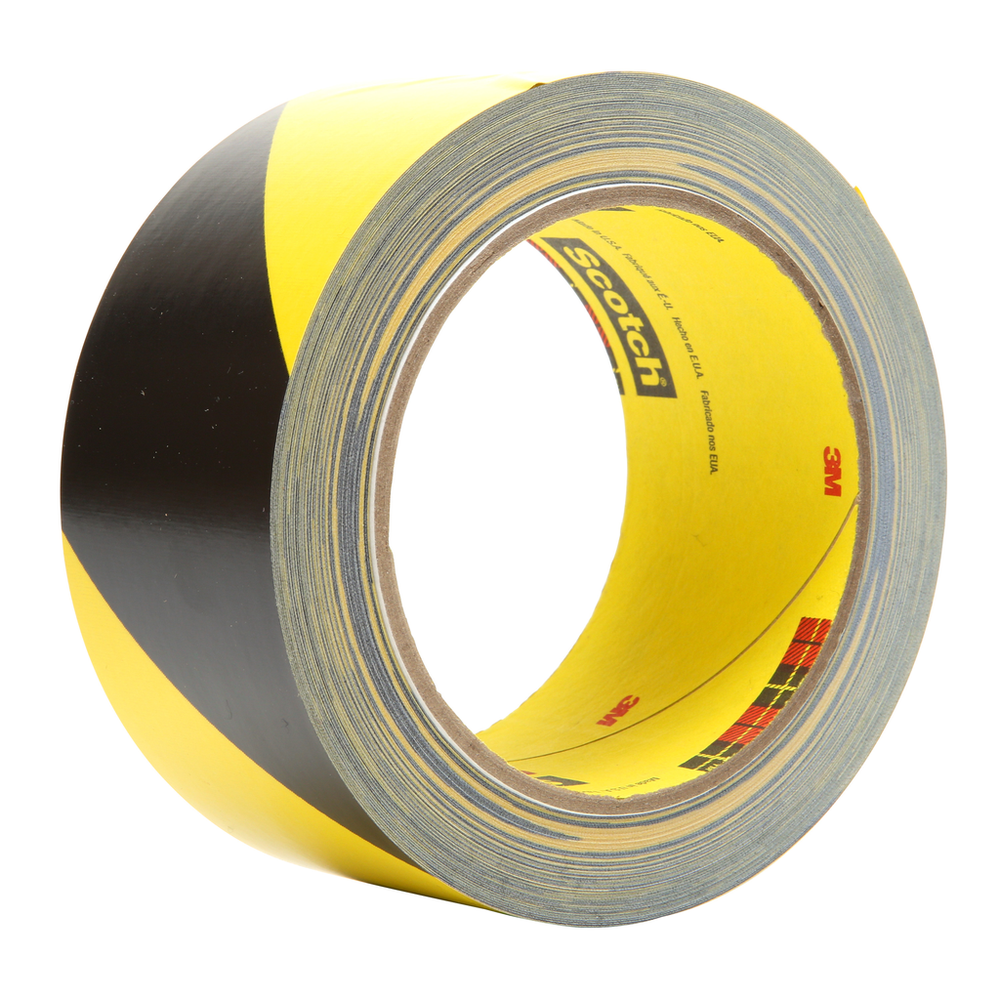

3M™ Safety Stripe Tape 5702, Black/Yellow, 1 in x 36 yd, 5.4 mil, 36 Roll/Case - 7000123722

Sold As: 36-Pack
SKU: 7000123722
MPN: 7000123722
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200428920
3M ID: 70006220951
5 Digit UPC: 42892
$1,168.01 ($32.44 / Count)
Hurry up! Current stock:

Product Description

Developed to provide highly visible safety indication for driving and walking lanes, hazardous areas, protruding equipment and low hanging objects, durable 3M™ Safety Stripe Tape 5702 is an ideal choice for your applications. The color is embedded into the vinyl backing to resist abrasion, scuffing and moisture which might affect visibility. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive has quick stick and excellent holding strength on most surfaces. This combination of the backing and adhesive properties help to prevent edge lifting, keeping the tape in place. The tape removes cleanly in one piece from most surfaces to help reduce clean-up and labor costs.

Features

  • COMES OFF CLEAN: Engineered for tidy, one-piece removal to minimize cleanup and labor
  • UNIQUE STRETCHABILITY: Slight elasticity helps this tape tightly conform to uneven surfaces without lifting and retracting
  • ATTENTION GRABBING: Wide black and yelllow stripes help designate safety and/or hazard zones
  • POWERFUL ADHESIVE: Rubber adhesive provides excellent holding strength on most surfaces
  • WEAR-RESISTANT STRIPES: The stripped pattern is printed below the surface to prevent it from rubbing off through normal wear
  • LONG SERVICE LIFE: Mark and protect surfaces longer thanks to construction that resists harsh solvents
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Performance LevelHigh Performance
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorBlack
Tensile Strength (Imperial)15.0
Overall Length (Metric)32.91
Overall Width (Imperial)1.0
Units per Case36.0
Backing (Carrier) Thickness (Imperial)4.2
Overall Width (Metric) UOMmm
LegendCaution
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break170
Adhesive TypeRubber
Overall Length (Imperial)36.0
Maximum Operating Temperature (Celsius)76.0
Backing (Carrier) Thickness (Imperial) UOMin
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Metric)0.14
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Backing (Carrier) Thickness (Metric)0.11
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit)170.0
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)40.0
Tensile Strength (Metric)260.0
Back Side Adhesive Thickness (Metric)0.11
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial)5.4
ApplicationSafety & Hazard Marking
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialVinyl
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
