3M Products & Supplies

3M™ Safety Stripe Tape 5702, Black/Yellow, 48 in x 36 yd, 5.4 mil, 4 Roll/Case - 7010312470

Sold As: 4-Pack
SKU: 7010312470
MPN: 7010312470
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115712838
3M ID: 70006752524
5 Digit UPC: 71283
$6,229.55 ($1557.39 / Count)
Hurry up! Current stock:

Product Description

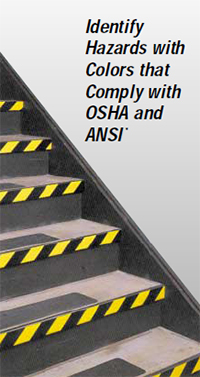

Developed to provide highly visible safety indication for driving and walking lanes, hazardous areas, protruding equipment and low hanging objects, durable 3M™ Safety Stripe Tape 5702 is an ideal choice for your applications. The color is embedded into the vinyl backing to resist abrasion, scuffing and moisture which might affect visibility. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive has quick stick and excellent holding strength on most surfaces. This combination of the backing and adhesive properties help to prevent edge lifting, keeping the tape in place. The tape removes cleanly in one piece from most surfaces to help reduce clean-up and labor costs.

Features

  • UNIQUE STRETCHABILITY: Slight elasticity helps this tape tightly conform to uneven surfaces without lifting and retracting
  • LONG SERVICE LIFE: Mark and protect surfaces longer thanks to construction that resists harsh solvents
  • COMES OFF CLEAN: Engineered for tidy, one-piece removal to minimize cleanup and labor

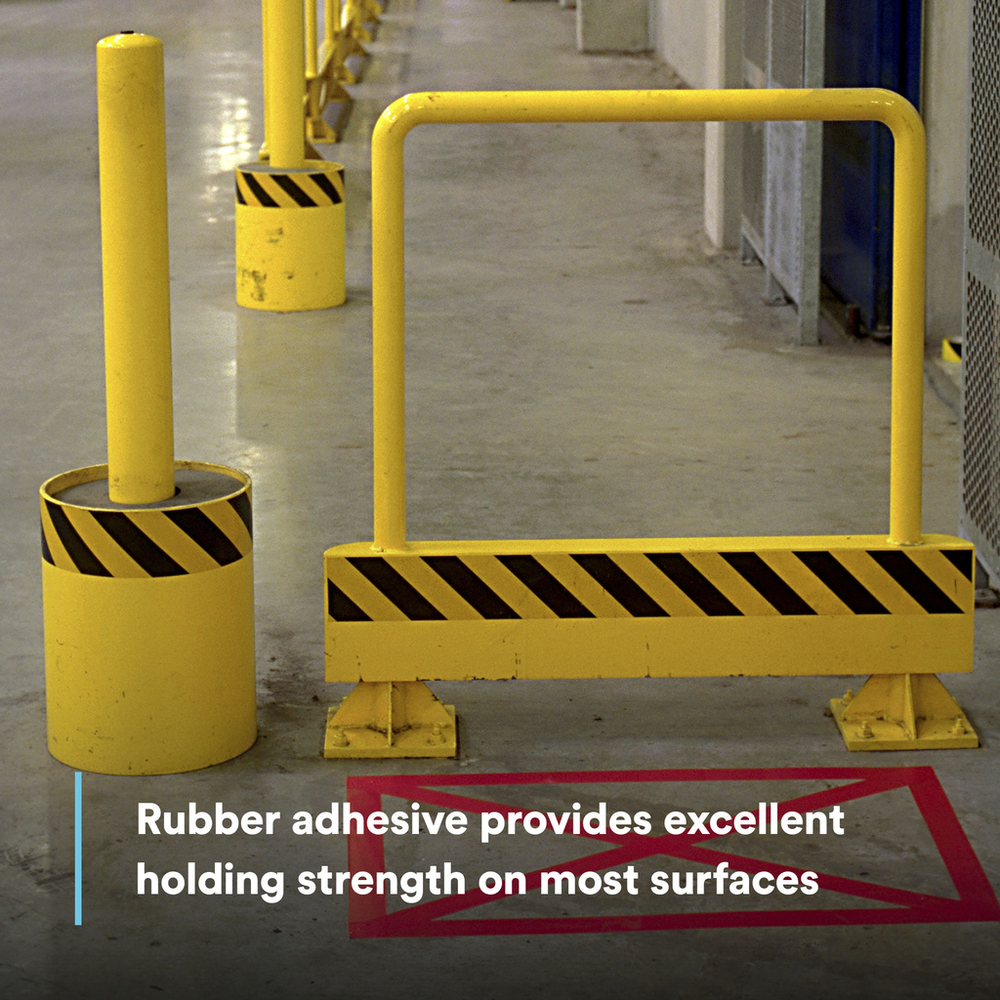

  • POWERFUL ADHESIVE: Rubber adhesive provides excellent holding strength on most surfaces
  • WEAR-RESISTANT STRIPES: The stripped pattern is printed below the surface to prevent it from rubbing off through normal wear
  • ATTENTION GRABBING: Wide black and yelllow stripes help designate safety and/or hazard zones
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Tensile Strength (Imperial)15.0
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)4.2
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)5.4
Elongation at Break170
Total Tape Thickness without Liner (Metric)0.14
Maximum Operating Temperature (Fahrenheit)170.0
Performance LevelHigh Performance
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)260.0
Overall Width (Metric)1219.2
Backing (Carrier) Thickness (Metric)0.11
Shelf Life UOMMonth
Overall Length (Metric)32.91
Product ColorBlack
LegendCaution
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case4.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)48.0
Backing (Carrier) Thickness (Imperial) UOMin
ApplicationSafety & Hazard Marking
Back Side Adhesive Thickness (Metric)0.11
Back Side Adhesive Thickness (Metric) UOMmm
Adhesive TypeRubber
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) MaterialVinyl
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)40.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)76.0
