3M Products & Supplies

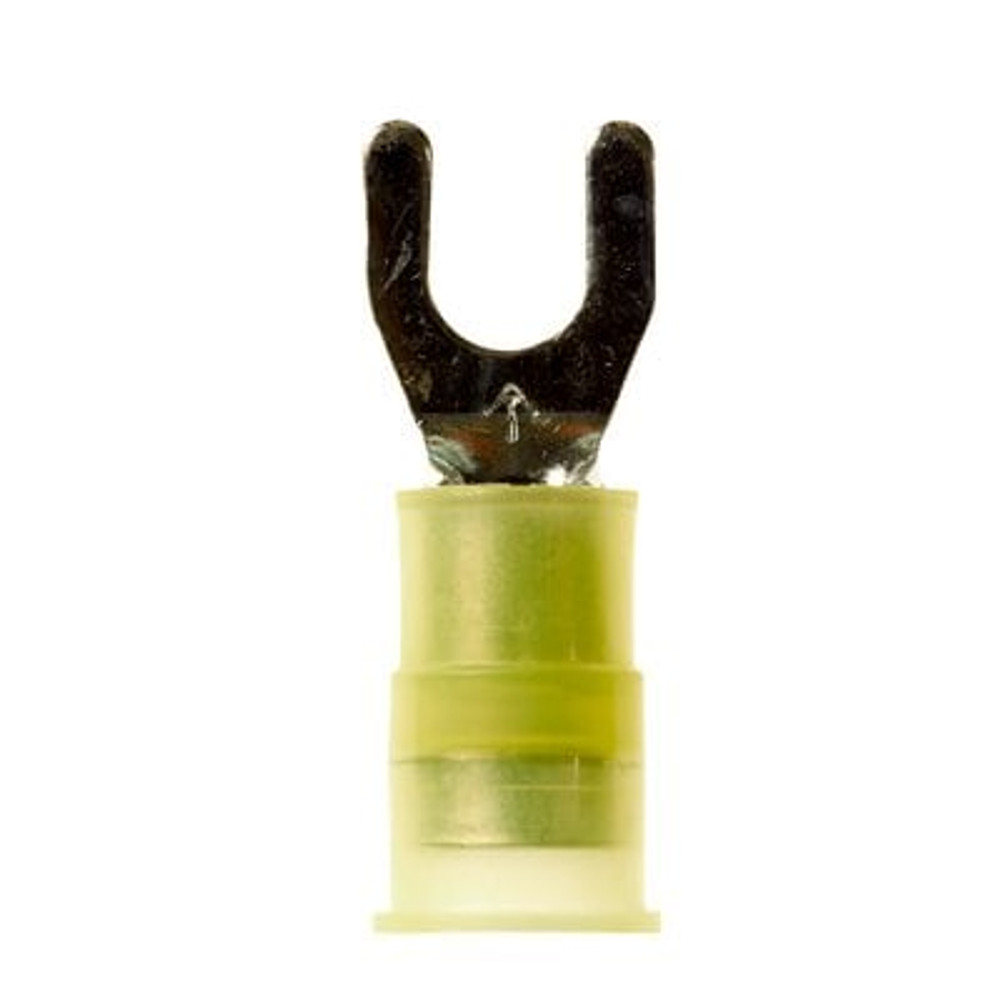

3M™ Scotchlok™ Fork Nylon Insulated, 50/bottle, MNG10-10FX, wider-tongue design for use on free-standing studs, 500/Case - 7010304187

Sold As: 50-Pack
SKU: 7010304187
MPN: 7010304187
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128587178
3M ID: 80611458623
5 Digit UPC: 58717
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Fork Terminal has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Wider tongue design for use on free-standing studs
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Terminal TypeFork
Packaging50 per bottle
Insulation MaterialNylon with Insulation Grip
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case500.0
Overall Length (Imperial)1.03
Dimension E0.84 Inch
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Stud Size#10
Terminal StyleStandard
Barrel Inside Diameter0.135 Inch
Clearance (C)0.29 Inch
Overall Width (Imperial)0.38
Stud Diameter (Metric)4.826
Maximum Insulation Outer Diameter (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)5.26 mm²
Fork TypeStandard
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Diameter (Metric) UOMmm
Stud Diameter (Imperial)0.19
Minimum Conductor Size (Metric)3.31 mm²
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
