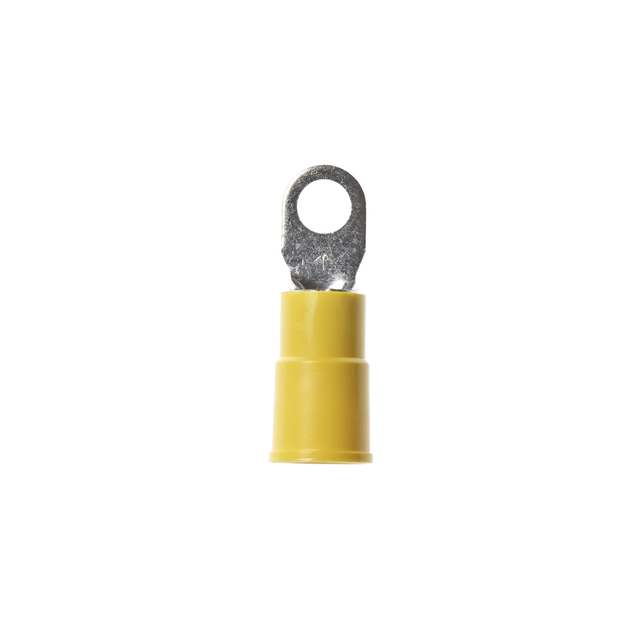

3M™ Scotchlok™ Ring Tongue MN24-2RK, standard-style ring tongue fits around the stud - 7100167503

Sold As: 1000-Pack
SKU: 7100167503
MPN: 7100167503
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007951360
3M ID: 80611256365
MPN: MN24-2RK
$1,423.39 ($1.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Flared portion of the nylon sleeve offers easy insertion of wires

Downloads

Specifications

Connection TypeCrimp
Overall Width (Imperial)0.14
Connection Width (Metric) UOMmm
Country of OriginTaiwan
Maximum Operating Temperature (Celsius)105.0
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)26 AWG
Minimum Conductor Size (Metric).14 mm²
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Metric)0.205
Maximum Operating Temperature (Fahrenheit) UOMDegree
Insulation MaterialNylon
Terminal StyleStandard
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.39 Inch
Connection Width (Imperial)0.086
Connection Width (Metric)2.0
Maximum Recommended Voltage Rating UOMV
Barrel StyleBrazed Seam
Terminal TypeRing
Maximum Conductor Size (Imperial)24 AWG
Ring TypeStandard
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.47
UL File NumberE23438
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Voltage Rating600 to 1000 V
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Overall Width (Imperial) UOMin
