3M Products & Supplies

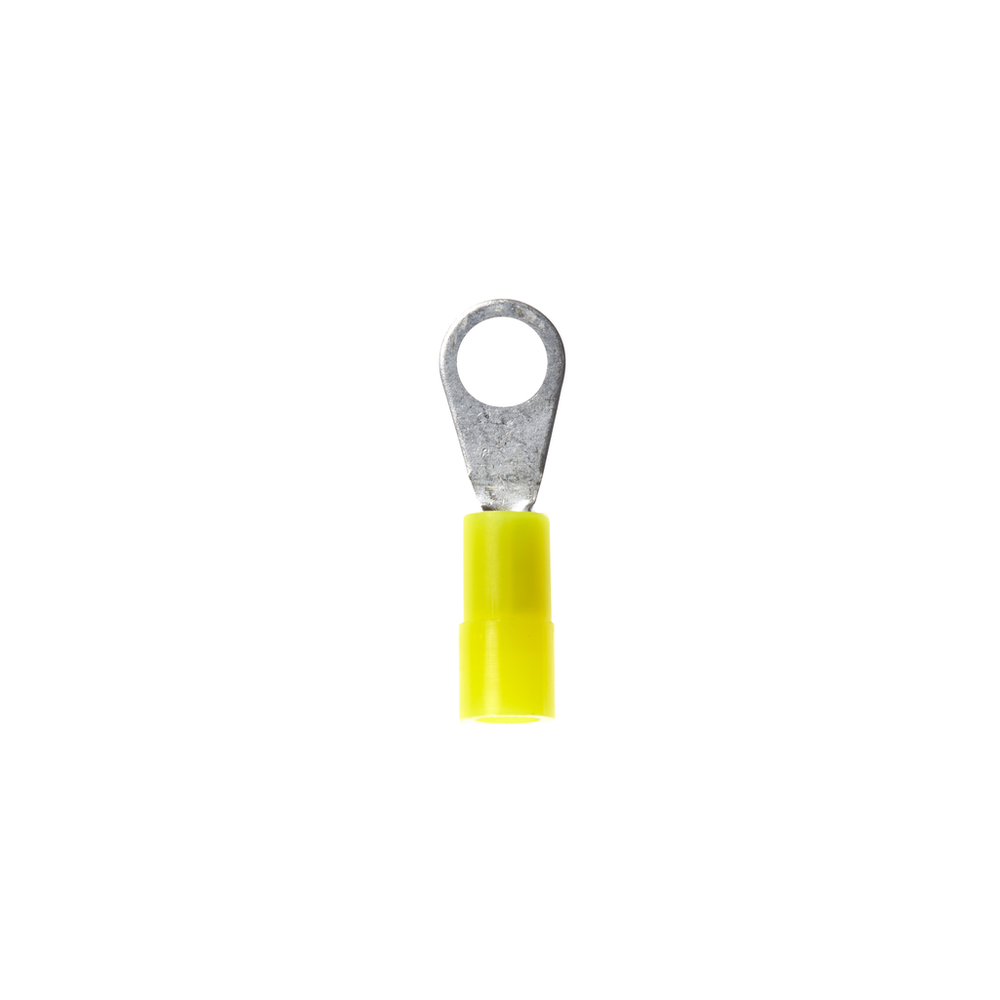

3M™ Scotchlok™ Ring Tongue MN24-4RK, standard-style ring tongue fits around the stud, 1000/Case - 7100164997

Sold As: 1000-Pack
SKU: 7100164997
MPN: 7100164997
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007951421
3M ID: 80611256423
5 Digit UPC: 95142
$1,273.56 ($1.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Flared portion of the nylon sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginTaiwan
Connection Width (Imperial) UOMin
Connection Width (Metric)2.845
Maximum Recommended Voltage Rating UOMV
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection TypeCrimp
Overall Length (Imperial)0.6
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating600.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Insulation MaterialNylon
UL File NumberE23438
Minimum Conductor Size (Imperial)26 AWG
Ring TypeStandard
Terminal StyleStandard
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.112
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Length (Imperial)0.39 Inch
Overall Length (Imperial) UOMin
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Conductor Size (Metric)0.205
Minimum Conductor Size (Metric).14 mm²
Barrel StyleBrazed Seam
Maximum Conductor Size (Imperial)24 AWG
Overall Width (Imperial)0.2
Terminal TypeRing
