3M Products & Supplies

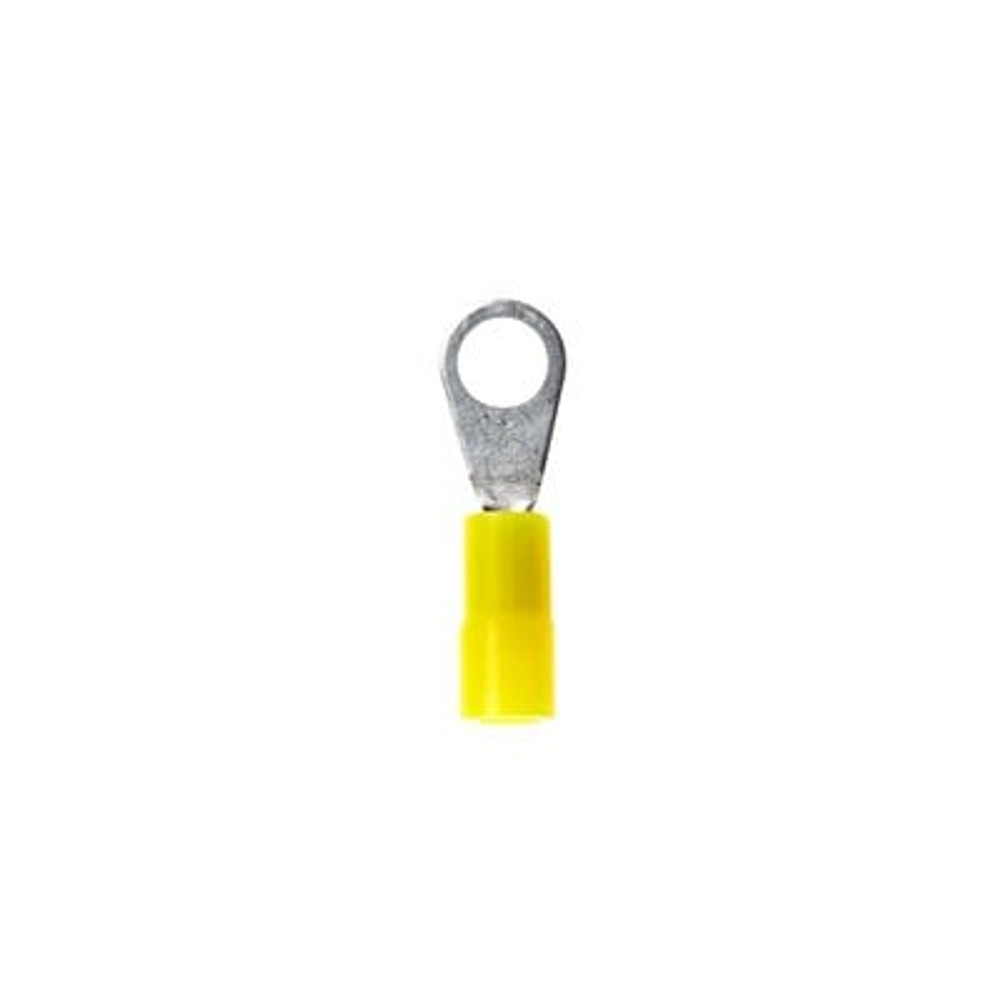

3M™ Scotchlok™ Ring Tongue MN24-6RK, standard-style ring tongue fits around the stud, 1000/Case - 7100164999

Sold As: 1000-Pack
SKU: 7100164999
MPN: 7100164999
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007951469
3M ID: 80611256464
5 Digit UPC: 95146
$1,273.56 ($1.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Flared portion of the nylon sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginTaiwan
Ring TypeStandard
Maximum Conductor Size (Metric)0.205
Minimum Conductor Size (Imperial)26 AWG
Connection Width (Imperial)0.138
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.2
Terminal StyleStandard
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Recommended Voltage Rating UOMV
Minimum Conductor Size (Metric).14 mm²
Insulation MaterialNylon
Maximum Voltage Rating600 to 1000 V
Maximum Conductor Size (Imperial)24 AWG
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Length (Imperial)0.39 Inch
Maximum Recommended Voltage Rating600.0
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Metric)3.5
Maximum Operating Temperature (Fahrenheit)221.0
Connection Width (Imperial) UOMin
Connection TypeCrimp
UL File NumberE23438
Barrel StyleBrazed Seam
Overall Length (Imperial)0.6
Terminal TypeRing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Connection Width (Metric) UOMmm
