3M Products & Supplies

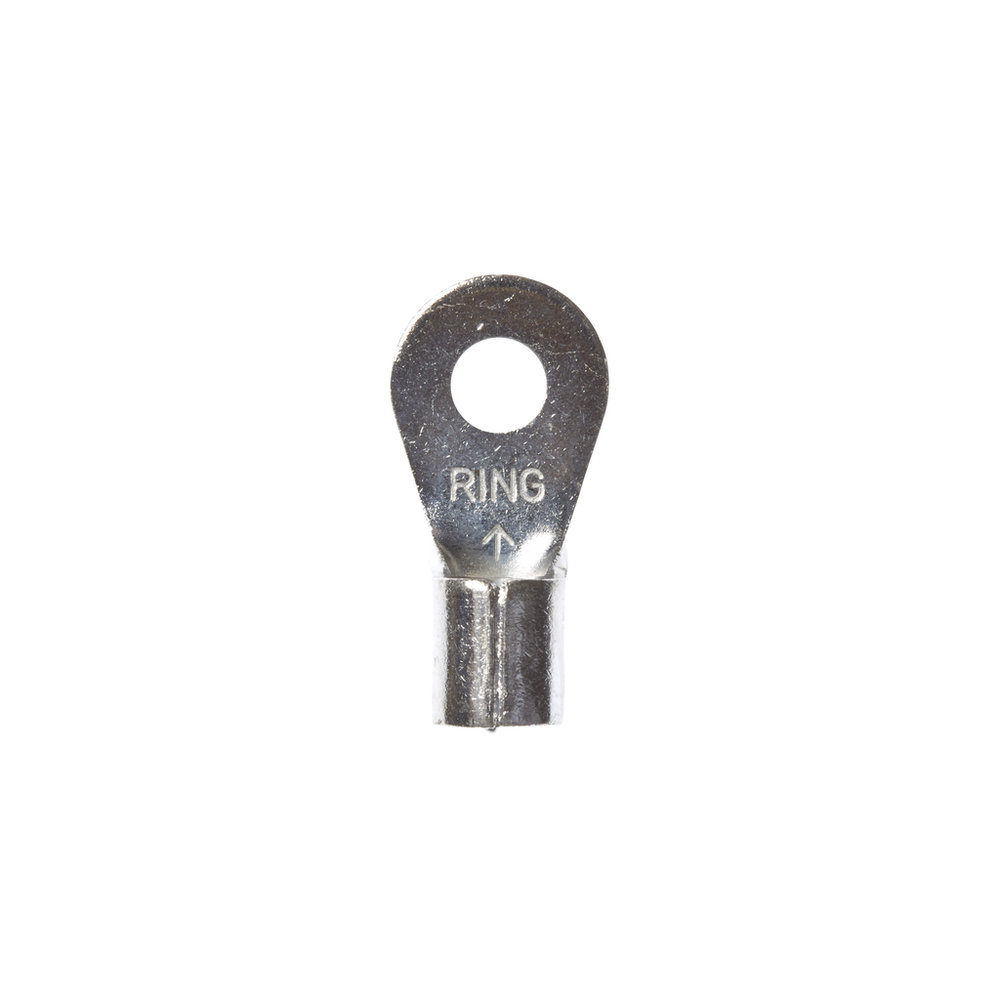

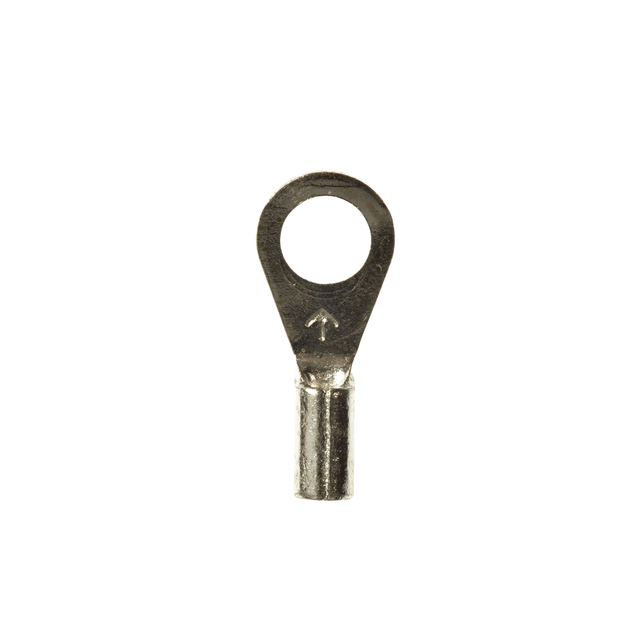

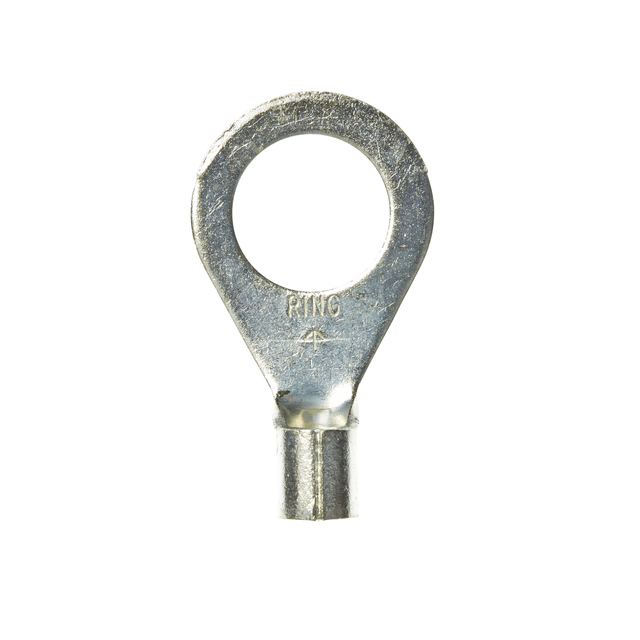

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M8-10R/SK, Stud Size 10, 200/Case - 7000132271

Sold As: 200-Pack
SKU: 7000132271
MPN: 7000132271
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021186
3M ID: 80610051239
5 Digit UPC: 2118
$156.28 ($0.78 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Ring TypeStandard
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleBrazed
Terminal TypeRing
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.95
UL File NumberE23438
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)8.37 mm²
Terminal StyleStandard
Connection Width (Imperial)0.19
Connection Width (Metric)4.826
Maximum Operating Temperature (Celsius)175.0
Overall Width (Imperial)0.47
Insulation MaterialNon-insulated
Connection TypeCrimp
Maximum Conductor Size (Metric)8.37
Minimum Conductor Size (Imperial)8 AWG
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)8 AWG
Connection Width (Metric) UOMmm
