3M Products & Supplies

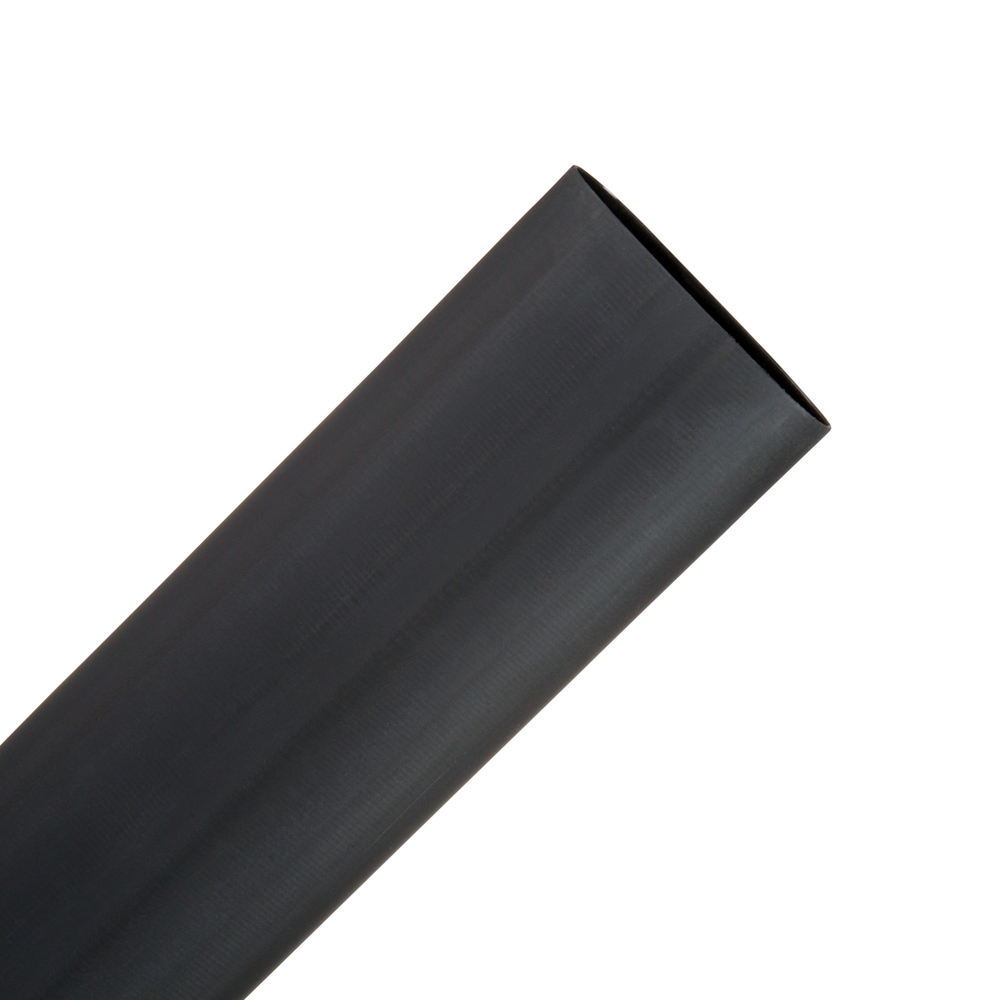

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1 1/2-6"-Black, 6 in length sticks, 3 pieces/pack, 10 Packs/Case - 7010350271

Sold As: 10-Pack
SKU: 7010350271
MPN: 7010350271
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601297
3M ID: 80611603913
5 Digit UPC: 60129
$314.73 ($31.47 / Count)
Hurry up! Current stock:

Product Description

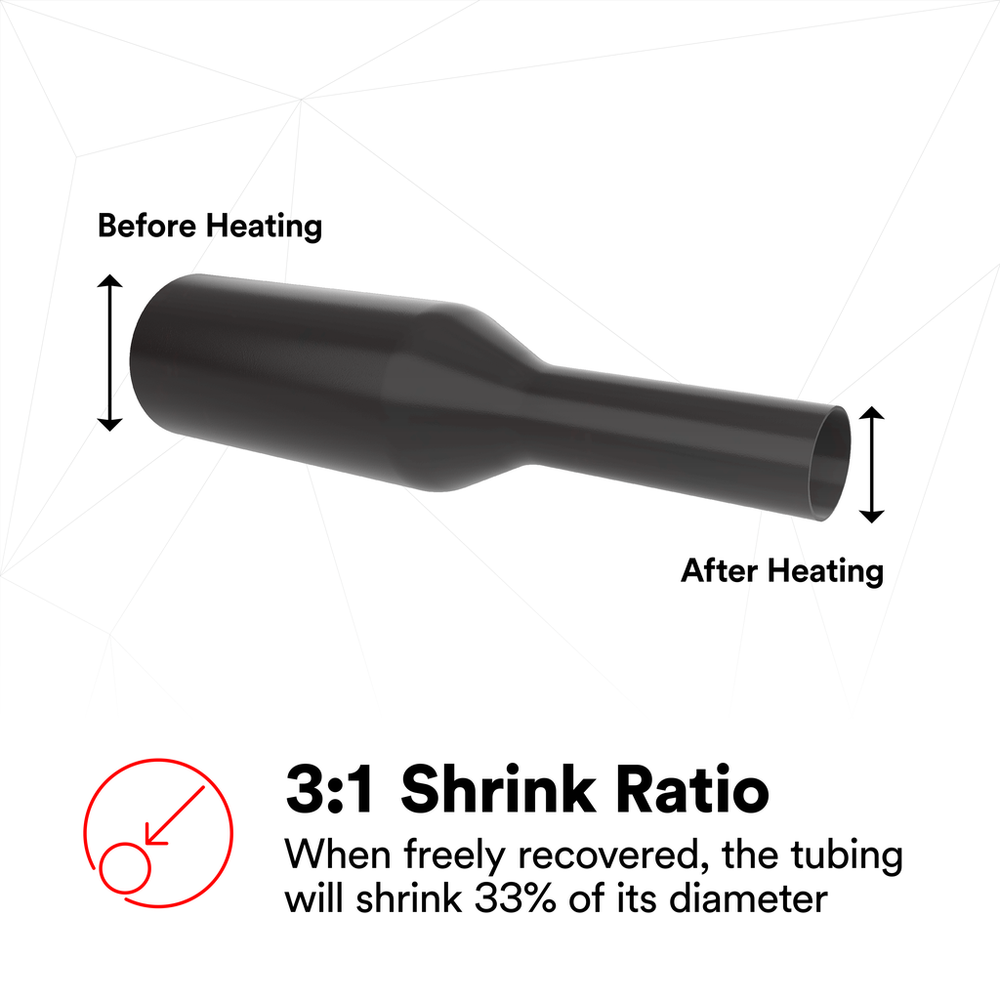

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Celsius)-55 °C to 110 °C
Units per Case3.0
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.1.5
Inner Diameter After Shrink (Metric)12.95
Product ColorBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio3:1
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Imperial)0.51
Inner Diameter Before Shrink (Metric)38.1
Adhesive MaterialSilicone
MaterialPolyolefin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.5
Overall Length (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial)6.0
Tubing TypeDual Wall (Adhesive Lined)
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)110.0
Non-CorrosiveYes
