3M Products & Supplies

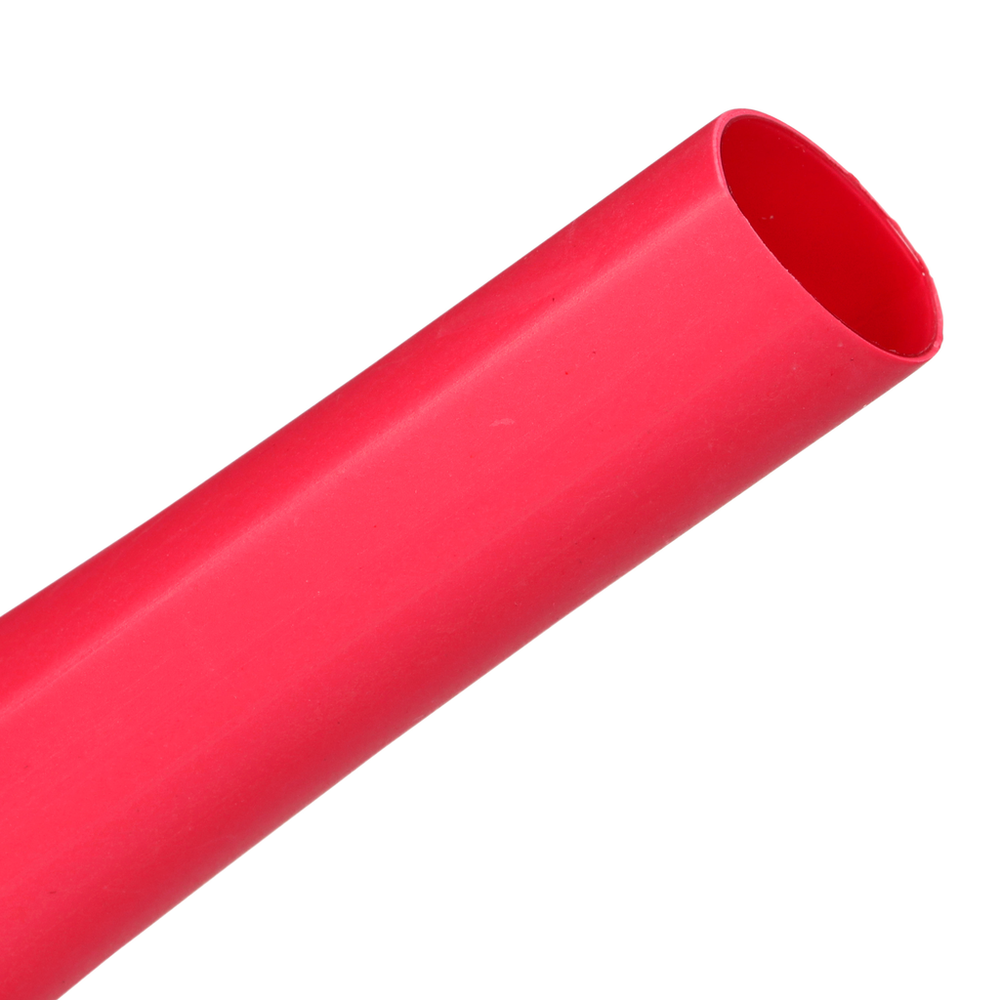

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4-48"-Red-45 Pcs, 48 in length sticks, 45 pieces/case - 7100069408

Sold As: 45-Pack
SKU: 7100069408
MPN: 7100069408
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128597634
3M ID: 80611600240
5 Digit UPC: 59763
$507.52 ($11.28 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

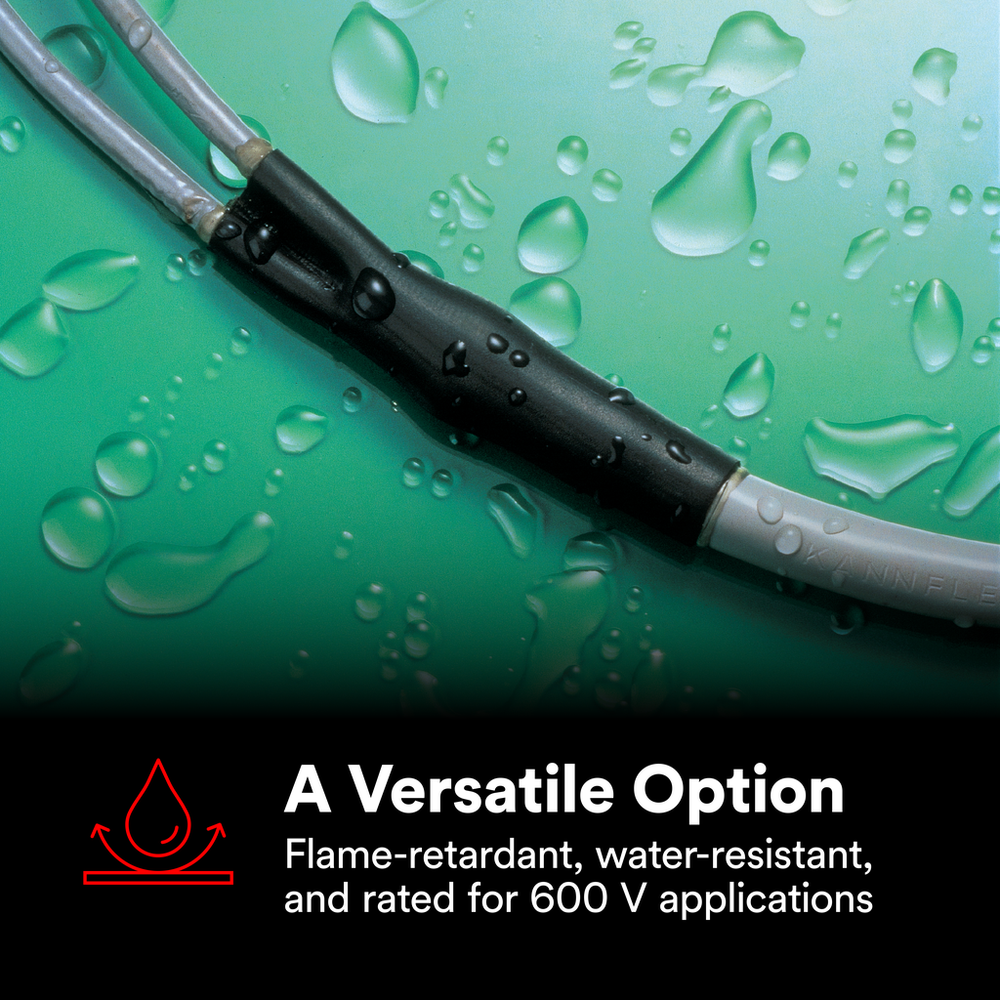

  • Flame-retardant tubing is rated for 600V applications

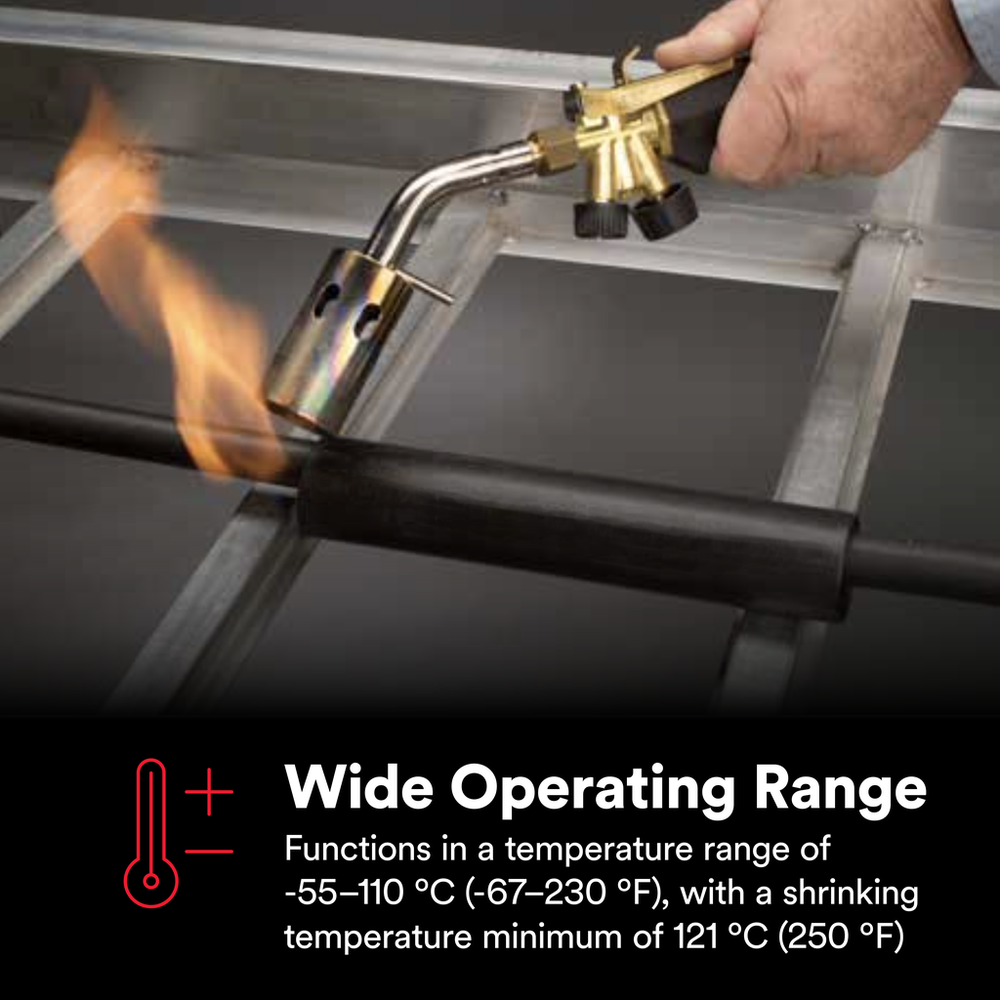

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)

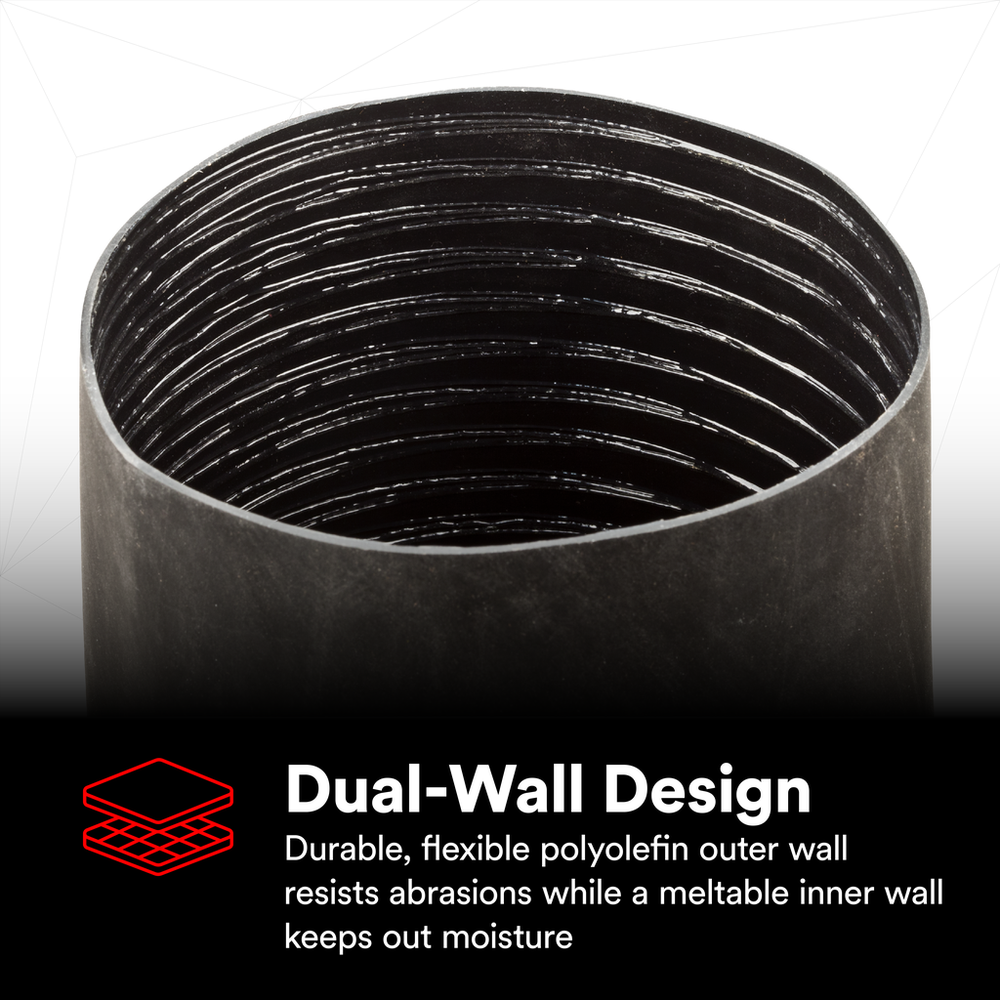

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Tubing TypeDual Wall (Adhesive Lined)
Minimum Expanded Tubing I. D.0.75
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +175 °C
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit)230.0
Operating Temperature Range (Fahrenheit)-67 °F to 347 °F
Product ColorRed
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Flame RetardantYes
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Imperial)0.25
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.75
Non-CorrosiveYes
Adhesive MaterialSilicone
Overall Length (Imperial)48.0
MaterialPolyolefin
Inner Diameter After Shrink (Metric)6.35
Inner Diameter Before Shrink (Metric)19.05
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Units per Case45.0
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Elongation UOM%
