3M™ UV Activated Film 81010, 220 mm x 200 m, 1 Roll/Case - 7100340922

Name: 3M™ UV Activated Film 81010, 220 mm x 200 m, 1 Roll/Case - 7100340922
Brand: 3M Products & Supplies
SKU: 7100340922
Price: 1187.26 USD
Availability: InStock

SKU: 7100340922

MPN: 7100340922

For an accurate lead time please contact us

UPC: 06936177933114

3M ID: XP003854088

$1,187.26 each

Hurry up! Current stock:

Quantity:

Product Description

3M™ UV Activated Film 81010 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. With the added benefits of good shear strength, high modulus, and a thin profile, 3M™ UV Activated Film 81010 is a robust alternative to traditional bonding methods.

Features

FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding
VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials
DUAL LINERED CONFIGURATION: Delivered on a clear, 38 μm PET front liner and clear, 50 μm anti-static PET back liner
CURING TIME: Achieves green strength within an hour and full bond at room temperature within 24 hours following UV activation

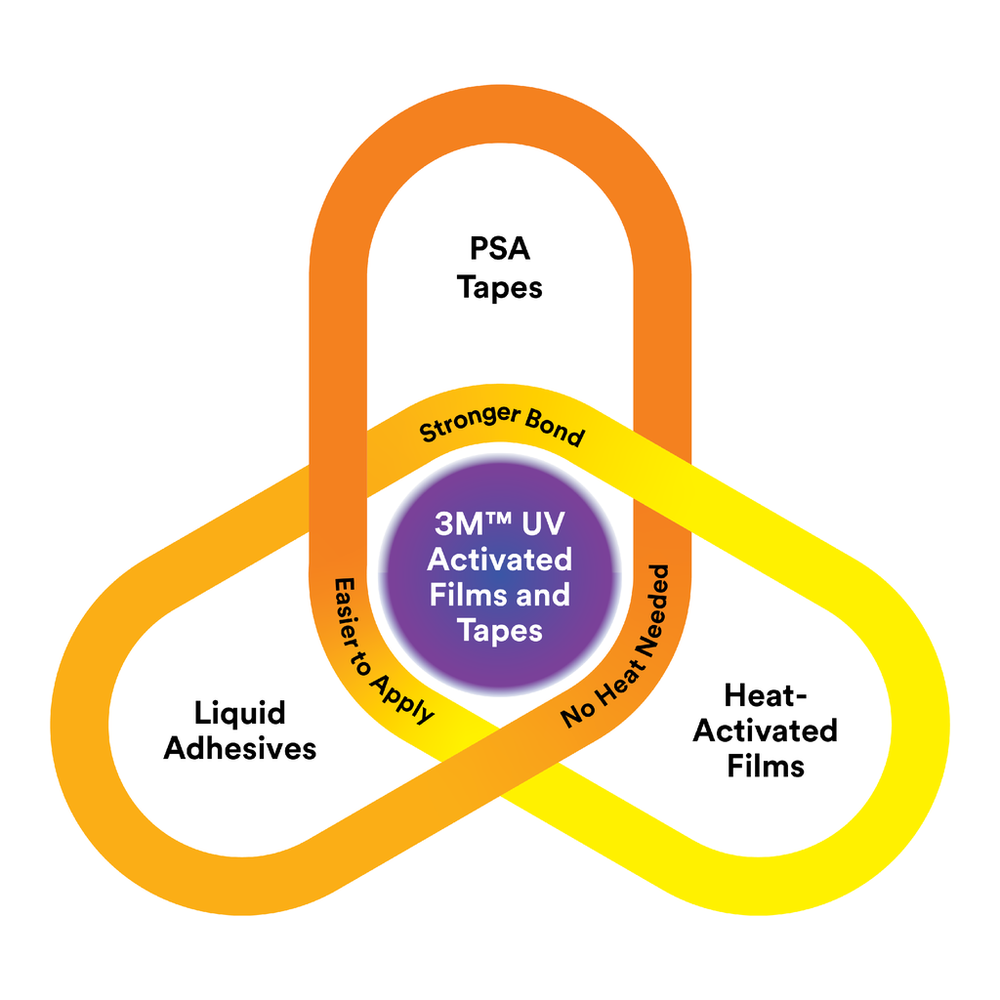

BONDING, REIMAGINED: Stronger bonds than tapes; easier to apply than liquid adhesives; and activated with light, rather than heat
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance

Spec Sheet

Downloads

Document Brochure 2

Spec Sheet

Document Brochure 1

Specifications

Shelf Life	547
Overall Length (Metric)	200.0
Overall Length (Imperial) UOM	yd
Overall Width (Imperial) UOM	in
Application	Bonding
Maximum Operating Temperature (Fahrenheit)	302.0
Product Color	Translucent
Maximum Cure Conditions (Celsius)	45.0
Overall Width (Metric) UOM	mm
Shear Strength	435.0
Shelf Life UOM	Month
Industries	Electronics
Adhesive Type	Acrylic Epoxy Blend
Overall Width (Imperial)	86.614
Country of Origin	China
Maximum Cure Conditions (Fahrenheit)	113.0
Maximum Operating Temperature (Celsius) UOM	Degree
Product Usage	Appliances; Displays; Electronic Components; Electronic Enclosures
Curing Temperature (Celsius) UOM	Degree
Density	1.2
Overall Length (Metric) UOM	m
Nominal Adhesive Thickness (Metric)	10.0
Shear Strength UOM	psi
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Operating Temperature (Celsius)	150.0
Overall Length (Imperial)	218.723
Overall Width (Metric)	2200.0
Curing Temperature (Fahrenheit) UOM	Degree
