3M™ UV Activated Film 81050, 220 mm x 200 m, 1 Roll/Case - 7100340921

Name: 3M™ UV Activated Film 81050, 220 mm x 200 m, 1 Roll/Case - 7100340921
Brand: 3M Products & Supplies
SKU: 7100340921
Price: 1596 USD
Availability: InStock

SKU: 7100340921

MPN: 7100340921

For an accurate lead time please contact us

UPC: 08806410011009

3M ID: XP003854062

$1,596.00 each

Hurry up! Current stock:

Quantity:

Product Description

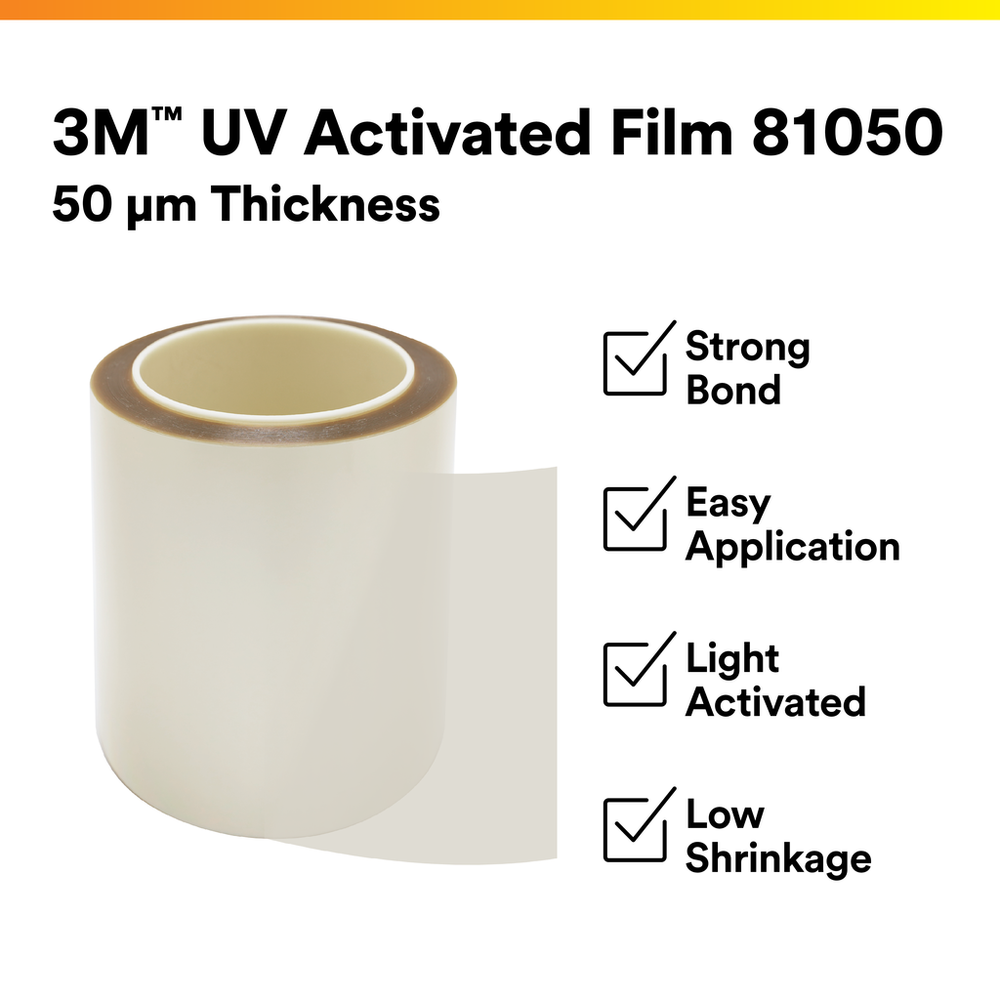

3M™ UV Activated Film 81050 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. With the added benefits of good shear strength, high modulus, and a thin profile, 3M™ UV Activated Film 81050 is a robust alternative to traditional bonding methods.

Features

BONDING, REIMAGINED: Stronger bonds than tapes; easier to apply than liquid adhesives; and activated with light, rather than heat
FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding
VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance
DUAL LINERED CONFIGURATION: Delivered on a clear, 38 μm PET front liner and clear, 50 μm anti-static PET back liner

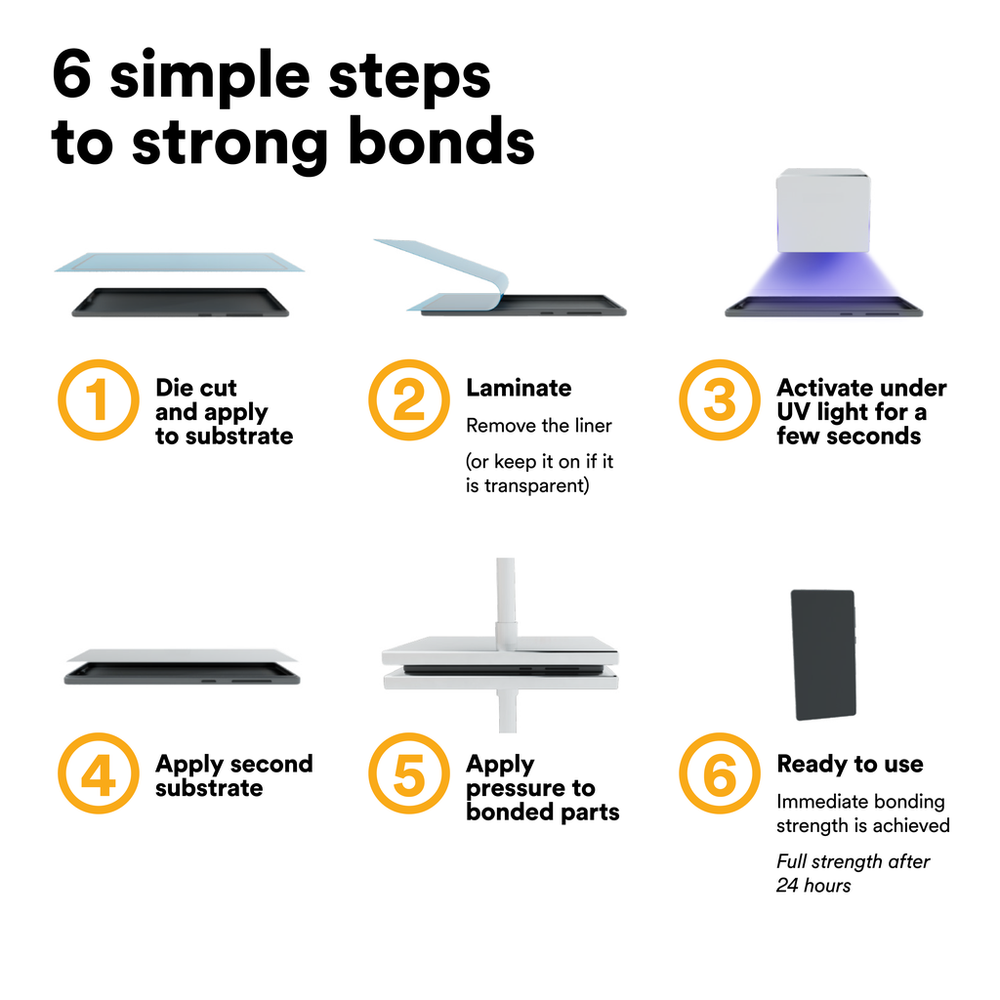

CURING TIME: Achieves green strength within an hour and full bond at room temperature within 24 hours following UV activation

Spec Sheet

Downloads

Document Brochure 2

Spec Sheet

Document Brochure 1

Specifications

Shelf Life	547
Industries	Electronics
Maximum Operating Temperature (Celsius)	150.0
Maximum Operating Temperature (Celsius) UOM	Degree
Country of Origin	China
Density	1.2
Overall Length (Metric) UOM	m
Product Usage	Appliances; Displays; Electronic Components; Electronic Enclosures
Shelf Life UOM	Month
Overall Width (Imperial) UOM	in
Product Color	Translucent
Overall Width (Metric) UOM	mm
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Length (Metric)	200.0
Overall Length (Imperial)	218.723
Overall Width (Metric)	2200.0
Shear Strength	1754.0
Maximum Operating Temperature (Fahrenheit)	302.0
Overall Width (Imperial)	86.614
Application	Bonding
Maximum Cure Conditions (Fahrenheit)	113.0
Nominal Adhesive Thickness (Metric)	50.0
Curing Temperature (Fahrenheit) UOM	Degree
Curing Temperature (Celsius) UOM	Degree
Shear Strength UOM	psi
Overall Length (Imperial) UOM	yd
Maximum Cure Conditions (Celsius)	45.0
Adhesive Type	Acrylic Epoxy Blend
