3M™ UV Activated Film 82150, 200 mm x 100 m, 1 Roll/Case - 7100394542

Name: 3M™ UV Activated Film 82150, 200 mm x 100 m, 1 Roll/Case - 7100394542
Brand: 3M Products & Supplies
SKU: 7100394542
Price: 1237.88 USD
Availability: InStock

SKU: 7100394542

MPN: 7100394542

For an accurate lead time please contact us

UPC: 06936177935460

3M ID: XP003862057

$1,237.88 each

Hurry up! Current stock:

Quantity:

Product Description

3M™ UV Activated Film 82150 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. It also makes use of a polyester film carrier, which helps ensure that the tape is easier to handle during slitting and die cutting. With the added benefits of good shear strength, high modulus, and a thin profile, 3M™ UV Activated Film 82150 is a robust alternative to traditional bonding methods.

Features

FILM CARRIER: A polyester film carrier makes this tape easier to handle during slitting and die cutting
BONDING, REIMAGINED: Stronger bonds than tapes; easier to apply than liquid adhesives; and activated with light, rather than heat
VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials

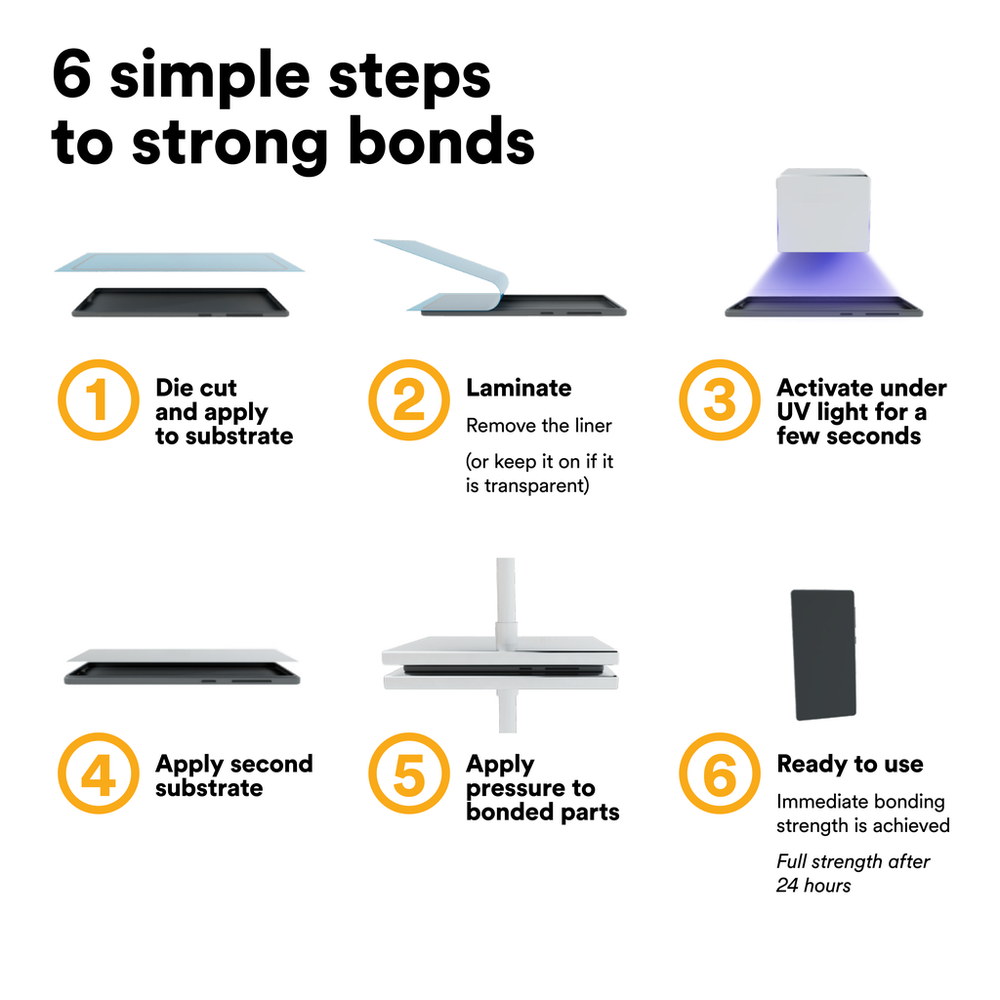

FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding
CURING TIME: Achieves green strength within an hour and full bond at room temperature within 48 hours following UV activation
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance

Specifications

Shelf Life	547
Product Color	Transparent
Overall Width (Imperial) UOM	in
Maximum Cure Conditions (Fahrenheit)	113.0
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Country of Origin	China
Application	Bonding
Overall Length (Metric)	100.0
Industries	Electronics
Shelf Life UOM	Month
Curing Temperature (Fahrenheit) UOM	Degree
Curing Temperature (Celsius) UOM	Degree
Shear Strength UOM	psi
Adhesive Type	Acrylic Epoxy Blend
Maximum Operating Temperature (Celsius) UOM	Degree
Nominal Adhesive Thickness (Metric)	150.0
Product Usage	Appliances; Displays; Electronic Components; Electronic Enclosures
Density	1.2
Shear Strength	1450.4
Overall Width (Imperial)	7.874
Overall Length (Metric) UOM	m
Maximum Cure Conditions (Celsius)	45.0
Overall Width (Metric)	200.0
Maximum Operating Temperature (Celsius)	150.0
Maximum Operating Temperature (Fahrenheit)	302.0
Overall Length (Imperial)	109.361
Overall Width (Metric) UOM	mm
Overall Length (Imperial) UOM	yd
