3M™ UV Activated Film 82175, 200 mm x 100 m, 1 Roll/Case - 7100394618

Name: 3M™ UV Activated Film 82175, 200 mm x 100 m, 1 Roll/Case - 7100394618
Brand: 3M Products & Supplies
SKU: 7100394618
Price: 1291 USD
Availability: InStock

SKU: 7100394618

MPN: 7100394618

For an accurate lead time please contact us

UPC: 06936177936177

3M ID: XP003862065

$1,291.00 each

Hurry up! Current stock:

Quantity:

Product Description

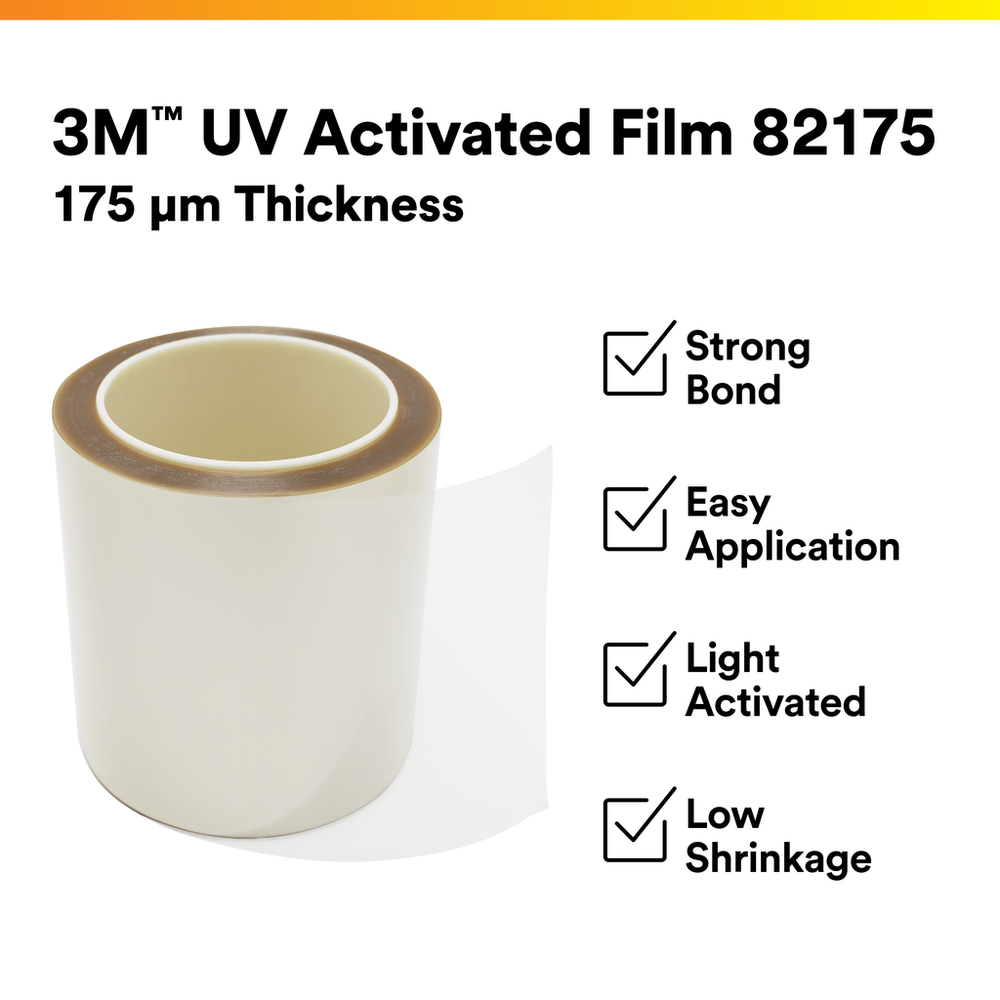

3M™ UV Activated Film 82175 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. It also makes use of a polyester film carrier, which helps ensure that the tape is easier to handle during slitting and die cutting. With the added benefits of good shear strength, high modulus, and a thin profile, 3M™ UV Activated Film 82175 is a robust alternative to traditional bonding methods.

Features

FILM CARRIER: A polyester film carrier makes this tape easier to handle during slitting and die cutting

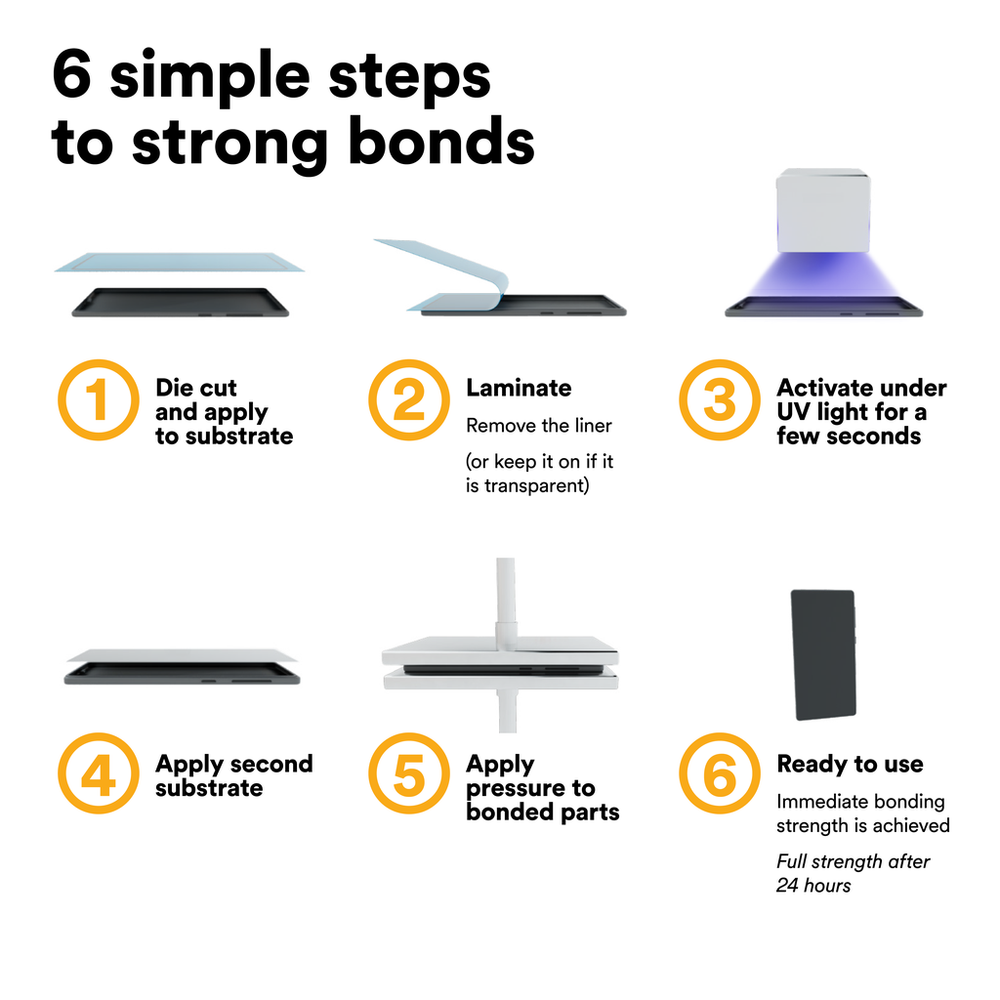

CURING TIME: Achieves green strength within an hour and full bond at room temperature within 48 hours following UV activation
BONDING, REIMAGINED: Stronger bonds than tapes; easier to apply than liquid adhesives; and activated with light, rather than heat
FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance
VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials

Specifications

Shelf Life	547
Overall Length (Imperial) UOM	yd
Maximum Cure Conditions (Fahrenheit)	113.0
Overall Width (Imperial) UOM	in
Shelf Life UOM	Month
Country of Origin	China
Maximum Operating Temperature (Fahrenheit)	302.0
Product Color	Transparent
Industries	Electronics
Maximum Operating Temperature (Celsius)	150.0
Product Usage	Appliances; Displays; Electronic Components; Electronic Enclosures
Maximum Operating Temperature (Celsius) UOM	Degree
Density	1.2
Overall Length (Metric)	100.0
Overall Width (Metric) UOM	mm
Overall Length (Imperial)	109.361
Adhesive Type	Acrylic Epoxy Blend
Overall Width (Metric)	200.0
Application	Bonding
Curing Temperature (Fahrenheit) UOM	Degree
Shear Strength UOM	psi
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Shear Strength	1595.4
Maximum Cure Conditions (Celsius)	45.0
Overall Width (Imperial)	7.874
Nominal Adhesive Thickness (Metric)	175.0
Curing Temperature (Celsius) UOM	Degree
Overall Length (Metric) UOM	m
