3M™ UV Activated Film 82100, 200 mm x 100 m, 1 Roll/Case - 7100394733

Name: 3M™ UV Activated Film 82100, 200 mm x 100 m, 1 Roll/Case - 7100394733
Brand: 3M Products & Supplies
SKU: 7100394733
Price: 1122.92 USD
Availability: InStock

SKU: 7100394733

MPN: 7100394733

For an accurate lead time please contact us

UPC: 06936177936030

3M ID: XP003862040

$1,122.92 each

Hurry up! Current stock:

Quantity:

Product Description

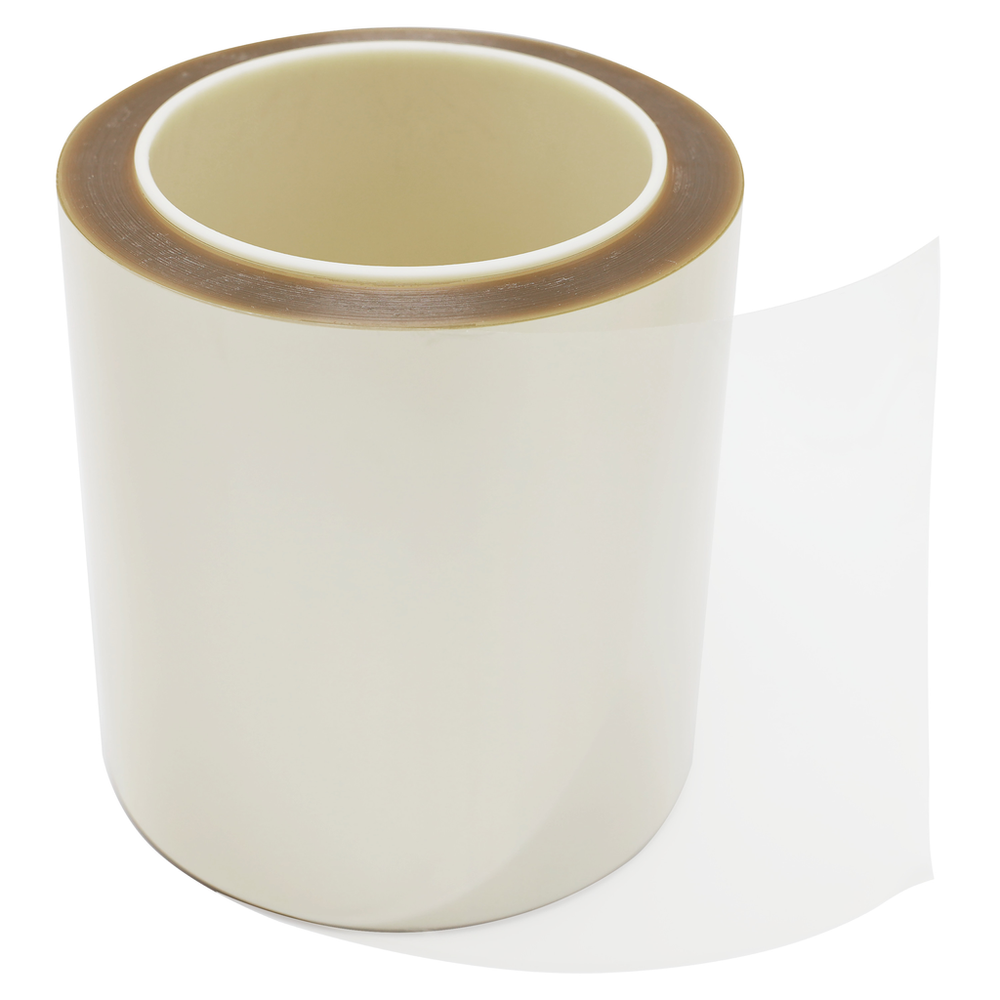

3M™ UV Activated Film 82100 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. It also makes use of a polyester film carrier, which helps ensure that the tape is easier to handle during slitting and die cutting. With the added benefits of good shear strength, high modulus, and a thin profile, 3M™ UV Activated Film 82100 is a robust alternative to traditional bonding methods.

Features

VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance

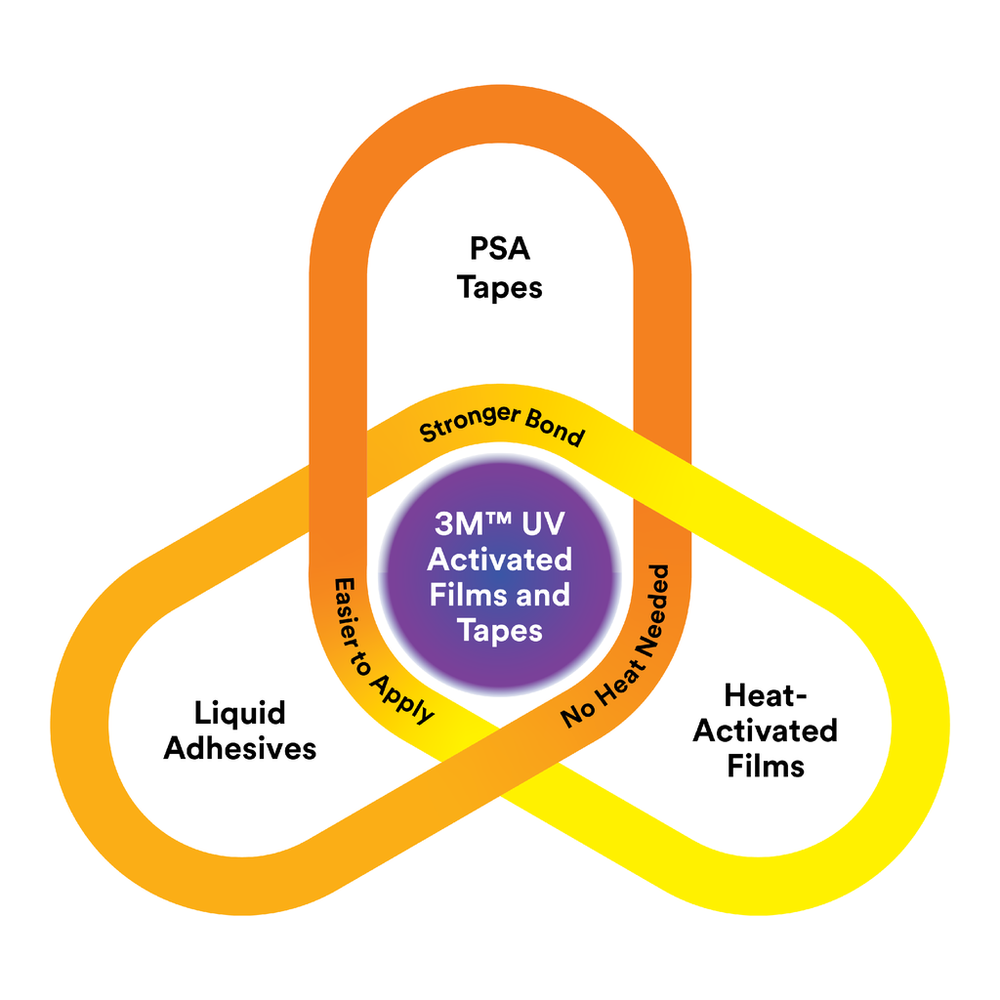

BONDING, REIMAGINED: Stronger bonds than tapes; easier to apply than liquid adhesives; and activated with light, rather than heat

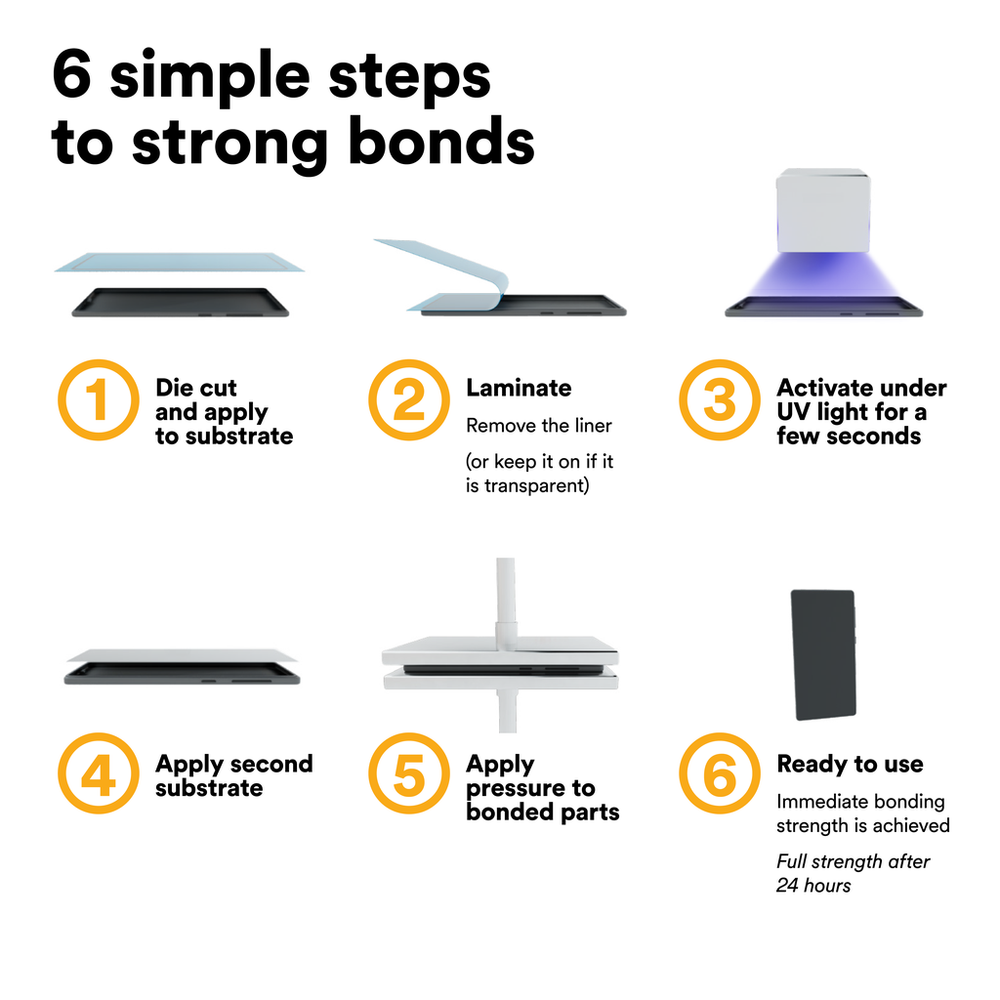

FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding
CURING TIME: Achieves green strength within an hour and full bond at room temperature within 48 hours following UV activation
FILM CARRIER: A polyester film carrier makes this tape easier to handle during slitting and die cutting

Specifications

Shelf Life	547
Adhesive Type	Acrylic Epoxy Blend
Overall Width (Imperial)	7.874
Product Color	Transparent
Nominal Adhesive Thickness (Metric)	100.0
Overall Length (Metric) UOM	m
Overall Width (Imperial) UOM	in
Shear Strength	1595.4
Product Usage	Appliances; Displays; Electronic Components; Electronic Enclosures
Application	Bonding
Curing Temperature (Celsius) UOM	Degree
Maximum Operating Temperature (Fahrenheit)	302.0
Maximum Operating Temperature (Celsius) UOM	Degree
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Country of Origin	China
Maximum Cure Conditions (Celsius)	45.0
Maximum Cure Conditions (Fahrenheit)	113.0
Overall Length (Metric)	100.0
Curing Temperature (Fahrenheit) UOM	Degree
Maximum Operating Temperature (Celsius)	150.0
Shelf Life UOM	Month
Industries	Electronics
Shear Strength UOM	psi
Overall Length (Imperial) UOM	yd
Overall Width (Metric)	200.0
Overall Length (Imperial)	109.361
Overall Width (Metric) UOM	mm
Density	1.2
