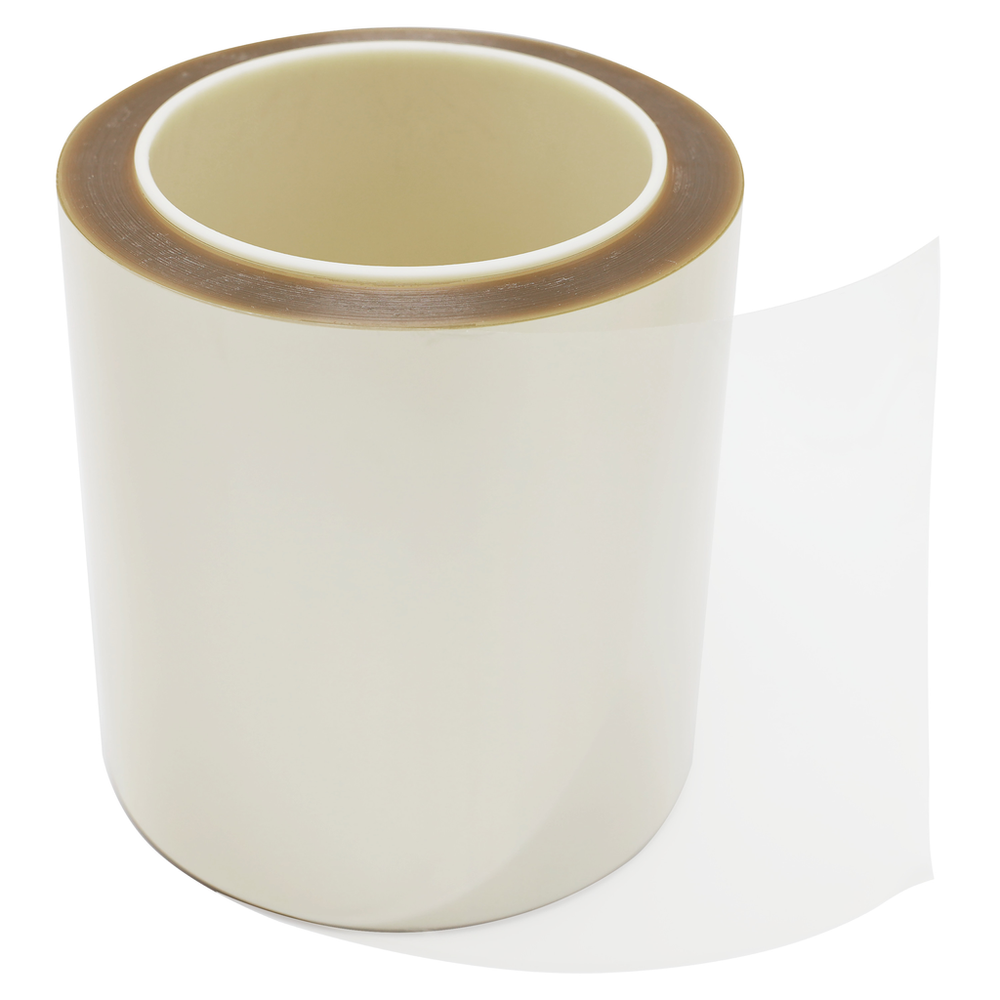

3M™ UV Activated Film 81075, 220 mm x 200 m, 1 Roll/Case - 7100341034

Name: 3M™ UV Activated Film 81075, 220 mm x 200 m, 1 Roll/Case - 7100341034
Brand: 3M Products & Supplies
SKU: 7100341034
Price: 2011.33 USD
Availability: InStock

SKU: 7100341034

MPN: 7100341034

For an accurate lead time please contact us

UPC: 06936177933084

3M ID: XP003854054

$2,011.33 each

Hurry up! Current stock:

Quantity:

Product Description

3M™ UV Activated Film 81075 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. With the added benefits of good shear strength, high modulus, and a thin profile, 3M™ UV Activated Film 81075 is a robust alternative to traditional bonding methods.

Features

CURING TIME: Achieves green strength within an hour and full bond at room temperature within 24 hours following UV activation
VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance

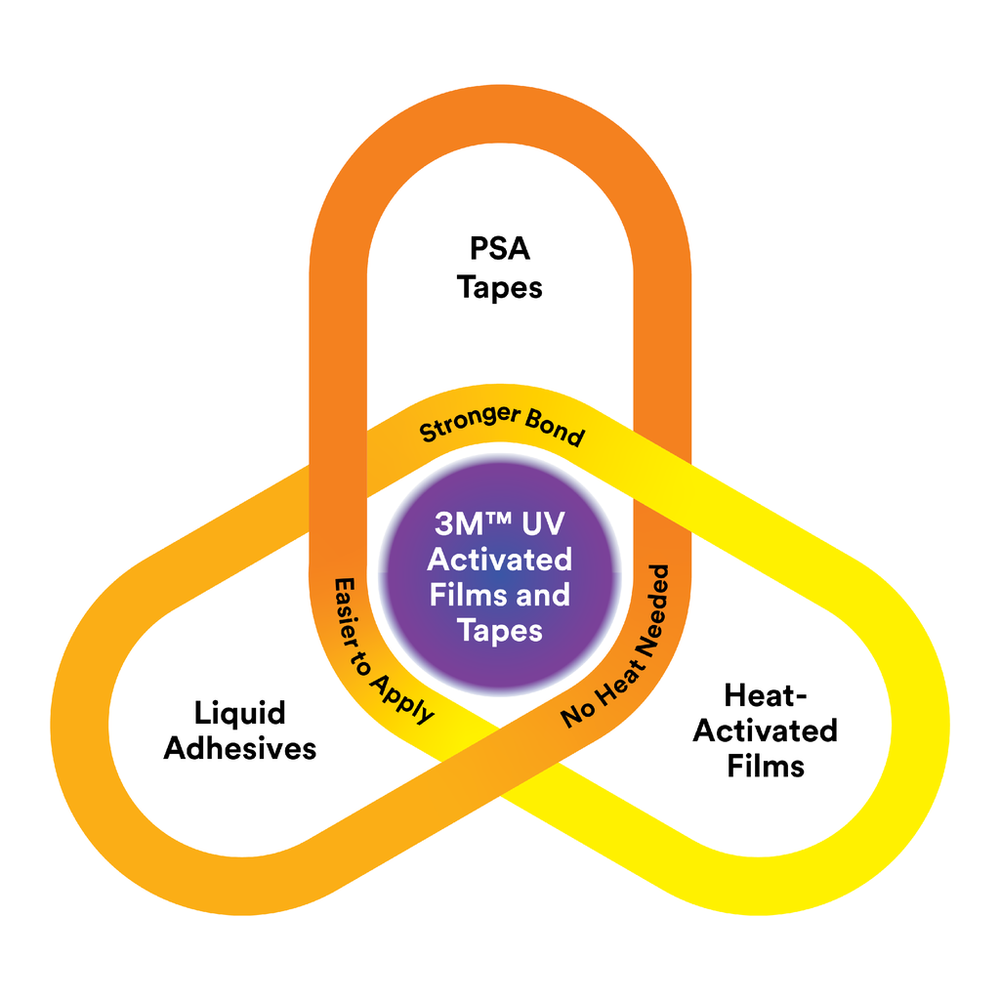

BONDING, REIMAGINED: Stronger bonds than tapes; easier to apply than liquid adhesives; and activated with light, rather than heat
DUAL LINERED CONFIGURATION: Delivered on a clear, 38 μm PET front liner and clear, 50 μm anti-static PET back liner
FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding

Spec Sheet

Downloads

Document Brochure 1

Document Brochure 2

Spec Sheet

Specifications

Shelf Life	547
Overall Width (Imperial) UOM	in
Density	1.2
Overall Length (Metric) UOM	m
Overall Length (Imperial) UOM	yd
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Width (Imperial)	86.614
Adhesive Type	Acrylic Epoxy Blend
Overall Width (Metric)	2200.0
Maximum Operating Temperature (Celsius) UOM	Degree
Maximum Cure Conditions (Celsius)	45.0
Industries	Electronics
Nominal Adhesive Thickness (Metric)	75.0
Product Color	Translucent
Curing Temperature (Fahrenheit) UOM	Degree
Application	Bonding
Maximum Cure Conditions (Fahrenheit)	113.0
Shear Strength	1754.0
Overall Length (Imperial)	218.723
Overall Length (Metric)	200.0
Product Usage	Appliances; Displays; Electronic Components; Electronic Enclosures
Curing Temperature (Celsius) UOM	Degree
Overall Width (Metric) UOM	mm
Shear Strength UOM	psi
Shelf Life UOM	Month
Maximum Operating Temperature (Fahrenheit)	302.0
Country of Origin	China
Maximum Operating Temperature (Celsius)	150.0
