3M™ UV Activated Film 81025, 220 mm x 200 m, 1 Roll/Case - 7100341033

Name: 3M™ UV Activated Film 81025, 220 mm x 200 m, 1 Roll/Case - 7100341033
Brand: 3M Products & Supplies
SKU: 7100341033
Price: 1295.74 USD
Availability: InStock

SKU: 7100341033

MPN: 7100341033

For an accurate lead time please contact us

UPC: 06936177933107

3M ID: XP003854070

$1,295.74 each

Hurry up! Current stock:

Quantity:

Product Description

3M™ UV Activated Film 81025 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. With the added benefits of good shear strength, high modulus, and a thin profile, 3M™ UV Activated Film 81025 is a robust alternative to traditional bonding methods.

Features

DUAL LINERED CONFIGURATION: Delivered on a clear, 38 μm PET front liner and clear, 50 μm anti-static PET back liner
VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance

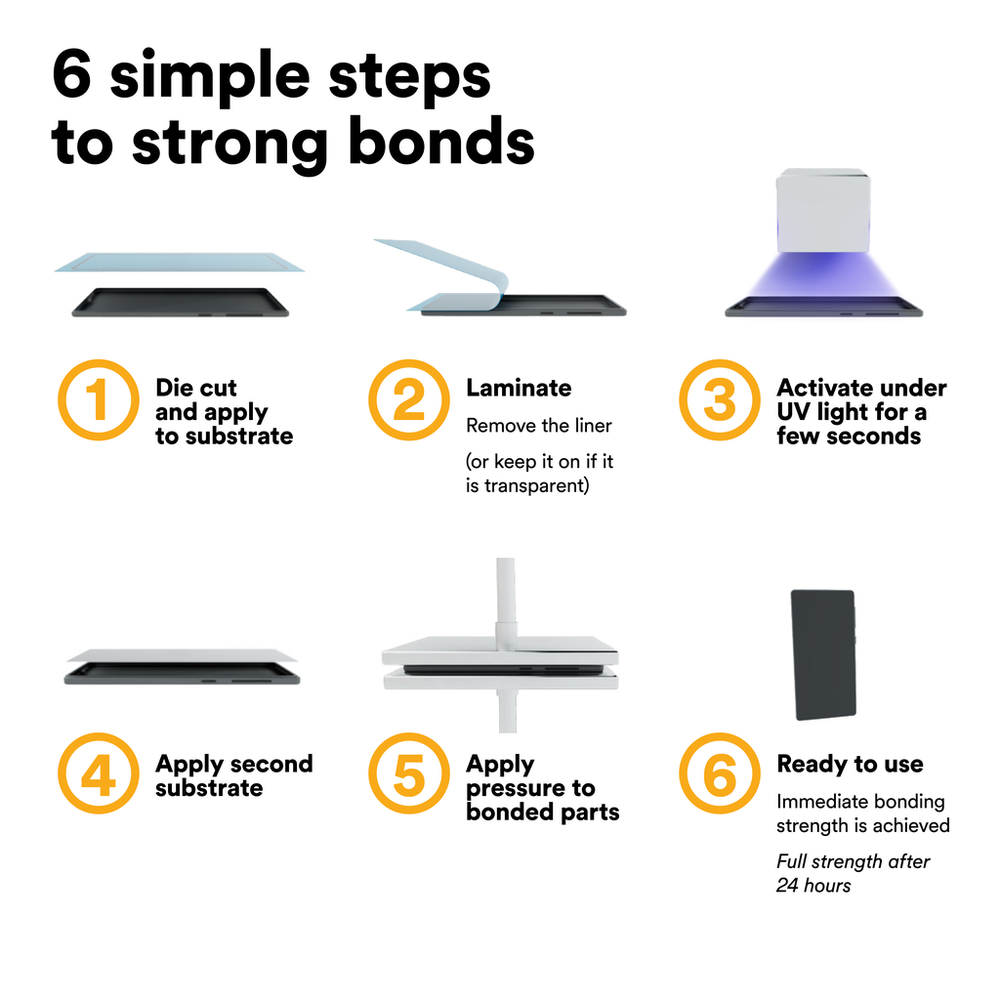

FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding
CURING TIME: Achieves green strength within an hour and full bond at room temperature within 24 hours following UV activation

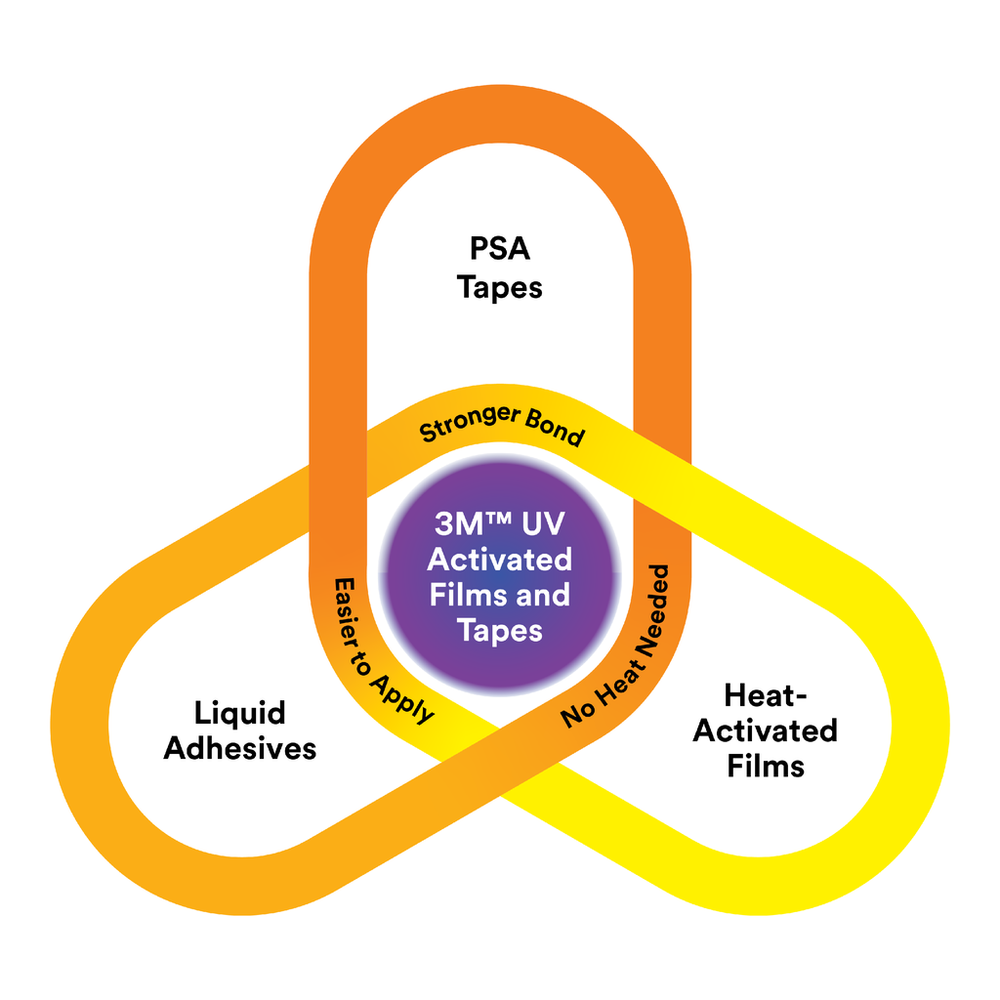

BONDING, REIMAGINED: Stronger bonds than tapes; easier to apply than liquid adhesives; and activated with light, rather than heat

Spec Sheet

Downloads

Document Brochure 1

Spec Sheet

Document Brochure 2

Specifications

Shelf Life	547
Maximum Operating Temperature (Celsius)	150.0
Density	1.2
Product Usage	Appliances; Displays; Electronic Components; Electronic Enclosures
Overall Width (Metric) UOM	mm
Shelf Life UOM	Month
Overall Width (Imperial)	86.614
Overall Length (Imperial)	218.723
Overall Length (Imperial) UOM	yd
Country of Origin	China
Curing Temperature (Celsius) UOM	Degree
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Cure Conditions (Celsius)	45.0
Industries	Electronics
Curing Temperature (Fahrenheit) UOM	Degree
Product Color	Translucent
Maximum Operating Temperature (Fahrenheit)	302.0
Overall Width (Imperial) UOM	in
Adhesive Type	Acrylic Epoxy Blend
Overall Width (Metric)	2200.0
Shear Strength UOM	psi
Nominal Adhesive Thickness (Metric)	25.0
Application	Bonding
Maximum Cure Conditions (Fahrenheit)	113.0
Overall Length (Metric) UOM	m
Overall Length (Metric)	200.0
Maximum Operating Temperature (Celsius) UOM	Degree
Shear Strength	1580.0
